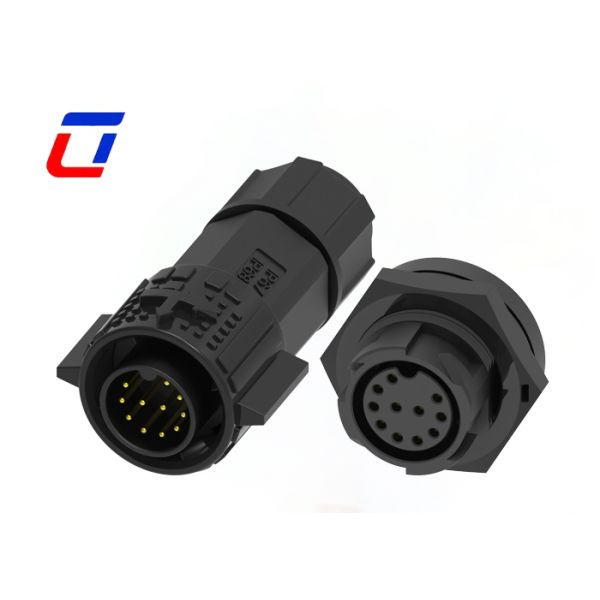

11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
11Pin
Current rating :
5A
Material :
Nylon
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Contact Material :
Brass Gold-Plated
Description
11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
Product Overview

The M19 11-pin circular connector is engineered for wire-to-wire data transmission in demanding outdoor scenarios, featuring quick-lock convenience and high-protection stability. Designed for multi-channel data interconnection in industrial outdoor, communication monitoring, and environmental monitoring applications.

Key Features
  • Push lock quick release system for tool-free installation
  • Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for Power
  • Combined power/signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, 2+20Pin
  • Signal-only options: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, 18Pin
  • Field assembly versions: wire-to-wire and wire-to-board options
  • 5A current rating for continuous operation
  • Cable assembly services and custom solutions available
  • OEM/ODM services welcome
Technical Specifications
Parameter Specification
Number of Poles 11Pin
Current Rating 5A max
Voltage Rating 300VAC max
Durability Voltage 1500VAC @ 60s
Contact Resistance 10 mΩ max
Insulation Resistance 500 MΩ at 500VDC
Operating Temperature -40°C to +105°C
IP Rating IP67 (1m / 30min) when mated
Housing Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Parameter Specification
Voltage Rating 300VAC max
Current Rating 5A max
Minimum Wire Size OD 3.0mm - 6.0mm
Maximum Wire Size OD 8.0mm - 10.0mm
Maximum Cable Cross Section Area 0.5mm² - 2.5mm²
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
Product Design
11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive 11 Pin M19 Circular Connector Panel Mount IP67 Connectors Waterproof Automotive
Frequently Asked Questions
Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q: How to buy your products?
A: You need to do as followings:
• Confirm Current Rating and Number of Contacts
• Confirm Assembly style
• Confirm Cable Wire gauge
• Confirm Cable Length and Material
Q: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q: Is there a discount for large-quantity orders?
A: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
