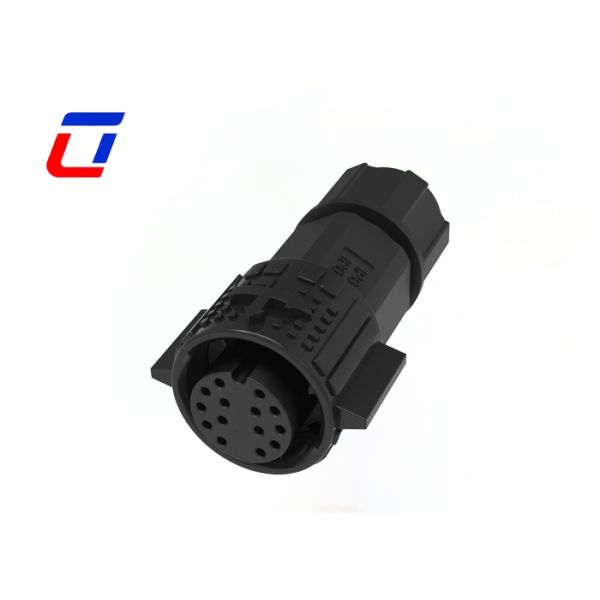

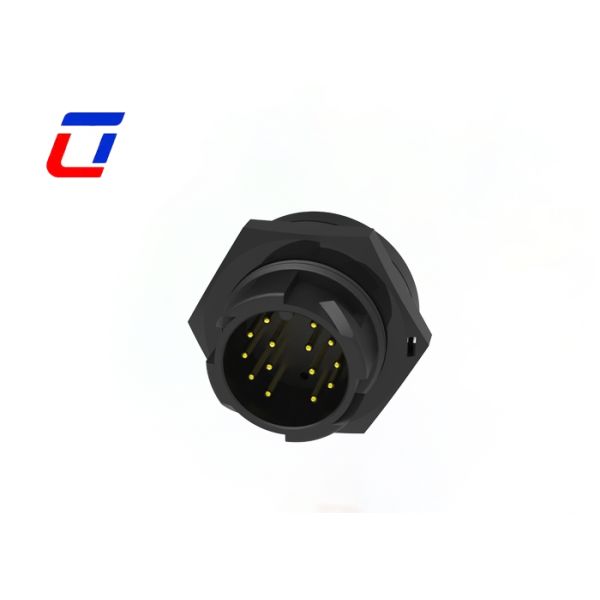

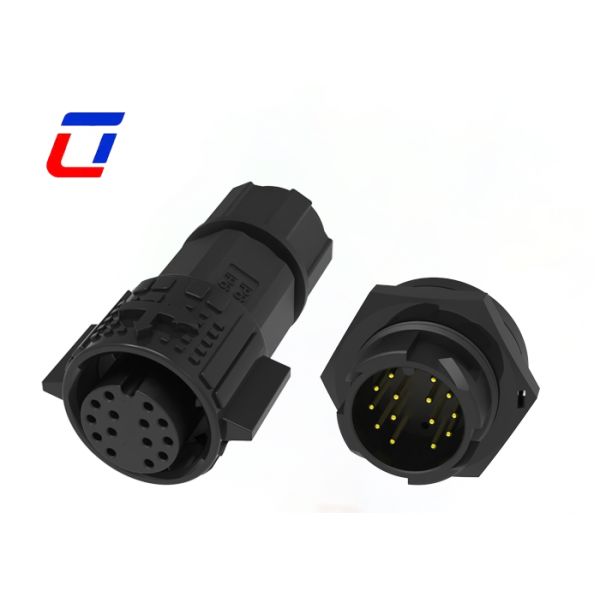

M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
Specifications
Brand Name :
Ulinkcon
Model Number :
M19
Certification :
CE/Rohs/TUV/UL
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/P,L/C,D/A,Western Union,MoneyGram
Supply Ability :
100000 pairs Montly
Delivery Time :
3~6working days
Packaging Details :
1.Plastic bag;2.Carton;3.As per customer's requirements
Pin :
14Pin
Current rating :
5A
Protection level :
IP67
Flame-resistant rating :
UL94-V0
Temperature :
-40~105℃
Contact Material :
Brass Gold-Plated
Description
M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
This M19 14-pin push locking waterproof connector features gold-plated pins and OEM customization capabilities, providing a high-quality solution for stable equipment connections. Combining push-locking convenience with gold-plated conductivity and M19 compatibility, it offers superior waterproof, dustproof, and corrosion-resistant performance for industrial control, outdoor communication, automotive electronics, and security monitoring applications.
Key Advantages
  • Push Locking Structure: Easy one-press docking and locking with key-unlocking mechanism, tool-free operation enhances installation efficiency and prevents accidental disconnection from vibration or pulling
  • 14-Pin Gold-Plated Contacts: Multi-channel signal and power synchronous transmission with high-purity copper alloy pins featuring gold plating to reduce contact resistance, resist oxidation, and extend service life in harsh environments
  • Superior Waterproof Performance: Integrated sealing structure with high-quality rings provides IP67 protection, ensuring stable connections in rain, humid workshops, and other wet environments
  • Quick Connection Design: Tool-free manual docking and separation with clear buckle feedback confirms proper connection, reducing wiring time and facilitating maintenance
Main Features
  • Push lock quick release system
  • Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for power applications
  • Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
  • Signal-only variants: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
  • Field assembly versions with wire-to-wire and wire-to-board options
  • 5A current rating for continuous operation
  • Cable assembly services available
  • OEM/ODM customization welcome
Electrical Parameters
Number of Poles 14Pin
Current Rating 5A max
Voltage Rating 300VAC max
Dielectric Strength 1500VAC @ 60s
Technical Parameters
Contact Resistance 10 mΩ max
Insulation Resistance 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Rating IP67 (1m / 30min) when mated
Housing Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone
Operation Parameters
Voltage Rating 300VAC max
Current Rating 5A max
Minimum Wire OD 3.0mm ~ 6.0mm
Maximum Wire OD 8.0mm ~ 10.0mm
Maximum Cable Cross Section 0.5mm² ~ 2.5mm²
Application Industries
  • Growth Lights
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Communications Equipment
  • Heavy Machinery
Design Images
M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V M19 Waterproof Bulkhead Connectors 14 Pin Wire To Board Power Connector 300V
Frequently Asked Questions
Are you a factory or trading company?
We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.
What is your Minimum Order Quantity (MOQ)?
The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
Can I pay after receiving the goods?
For first-time cooperation, advance payment is required to ensure production smoothness. For long-term trusted clients, flexible payment terms can be discussed after several successful orders.
Is there a discount for large-quantity orders?
Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.
