M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector
M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector
M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector
M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector
M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector
M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector
Specifications
Brand Name :
Ulinkcon
Model Number :
M16
Certification :
CE/Rohs
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T,D/A,D/P,MoneyGram,L/C
Supply Ability :
100000 pairs each month
Delivery Time :
5~8 working days
Packaging Details :
Standard Export carton
Material :
PA66
Application :
Power,Automotive,LED,Electrical equipment,LED lighting etc.
Number of Pins :
8PIN
Current :
5A
Waterproof Rating :
IP67
Flame-resistant rating :
UL94-V0
Description

M16 8 Pin Waterproof Connector 5A IP67 Quick Release Male Female Connector For Signal


Quick Details of 8Pin waterproof connector

This product is an M16-sized 8-pin round connector, focusing on cable-to-board connection type, and is a waterproof connection solution customized for signal transmission in industrial scenarios. Adopting the standard M16 circular structure design with a precise 8-pin layout, it can efficiently adapt to the signal docking needs between cables and circuit boards in industrial equipment, ensuring independent and stable transmission of multi-channel signals, and providing core connection support for signal interaction in industrial control systems.

In terms of core performance, the connector focuses on the reliability and environmental adaptability of industrial-grade signal transmission. The contacts are made of high-conductivity copper alloy, processed precisely and anti-oxidized, with low contact resistance and small transmission loss. It can accurately transmit various industrial control signals, sensor feedback signals, etc., effectively avoiding signal attenuation and distortion. The housing is made of industrial-grade engineering plastic with aging resistance and impact resistance, combined with a professional waterproof sealing structure, achieving industrial-grade protection level for waterproof and dustproof. It can resist dust, oil stains, moist water vapor and slight rain erosion in industrial workshops, adapting to complex industrial working conditions.

The structural design balances installation convenience and connection stability. It adopts a snap-on quick docking structure, which can complete the precise docking between cables and circuit boards without complex tools, greatly improving the efficiency of industrial equipment assembly and later maintenance. At the same time, it has excellent anti-vibration and anti-fall performance, which can adapt to the high-frequency vibration environment during the operation of industrial equipment and ensure the continuity of signal transmission. Widely used in industrial automated production lines, intelligent manufacturing equipment, industrial sensor modules, industrial control boxes and other scenarios, it is a reliable connection component in industrial signal transmission systems.


Product Type Features
Connector System  Cable-to-Board
Sealable  Yes
Connector & Contact Terminates To  Wire & Cable
Circular Connector Type  Plug, socket
Shell Type  Plastic Shell
Product Type  Connector Kit
Electrical Characteristics
Number of Poles 8
Current Rating 5A max.
Voltage Rating 60VAC max
Durability Voltage 500VAC @ 60 s.


Main Features

  • Push lock quick release system
  • Multic-core options: 2Pin,3Pin,4Pin,5Pin,7Pin,8Pin,2+4Pin
  • Field assembly version:both wire to wire and wire to board options
  • Current rated 5A for long time working
  • Cable assembly service supported, welcome to custom
  • OEM/ODM welcome


Body Features
Shell Material  PA66
Circular Connector Insulation Material Type  Low Fire Hazard Thermoplastic
Hermetically Sealed   Yes
Entry Style  Side
Environmental Protection Type  Elastomer Sealed, Hermetically Sealed
O-Ring Material  Elastomer Sealed, Hermetically Sealed
Environmental Protection  Yes


Application industries


  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Usage Conditions
Operating Temperature Range (°C) -40 ~+105°C
IP Water Sealing Level  IP67
IP Dust Sealing Level  6
Operation/Application
Durability Rating (Cycles) 500
Industry Standards
UL Flammability Rating   UL 94V-0

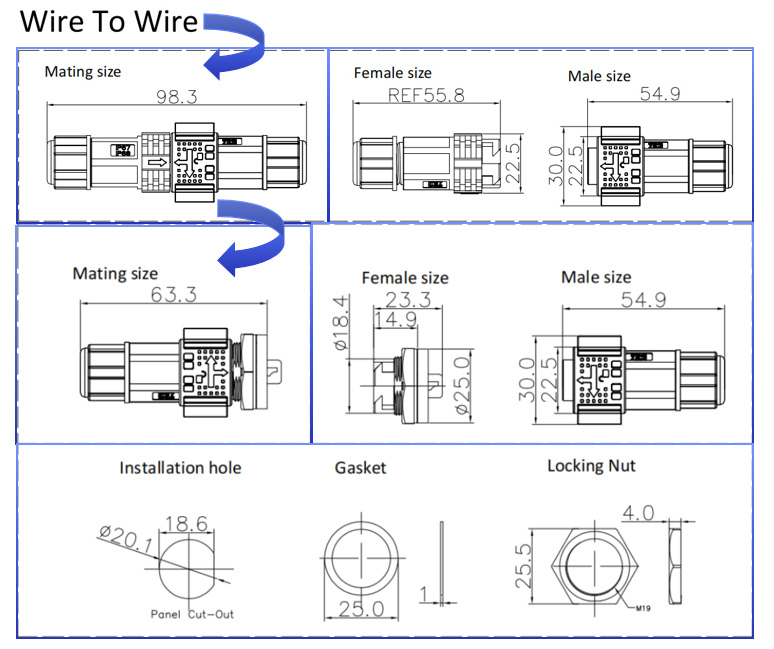

Production Dimension


M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector



More Technical Details


M16 8 Pin Round Connector Types Cable To Board Industrial Waterproof Signal Connector


FAQ

Q1:Who is responsible for customs clearance? Do you provide necessary documents?

A1:We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q2:Are your products certified? What certifications do you have?

A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Q3:What is your Minimum Order Quantity (MOQ)?

A3: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation.
