SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering
SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering
SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering
SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering
SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering
SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-KWHD
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering
Gender :
Female
Type :
Right angle
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering

Product Overview

SMA RF coaxial connectors are among the most widely used RF interconnect solutions, valued for their compact size, wide frequency bandwidth, superior mechanical and electrical performance, and high reliability. This P corner microstrip version is specifically designed for PCB integration, making it ideal for connecting coaxial cables to microstrip lines in RF circuits of digital communication and microwave systems.

Applications
Telecommunications, wireless communication systems, microwave measurement equipment, defense and weapon systems, and other high-frequency RF platforms.

Key Features

Right-angle (bent) design with PCB insertion structure

Microstrip-compatible layout for seamless RF signal transition

Compact size and lightweight for dense assemblies

Wide frequency bandwidth and low VSWR

High reliability and excellent electrical performance

Easy to install and solder for secure PCB integration

Product Appearance

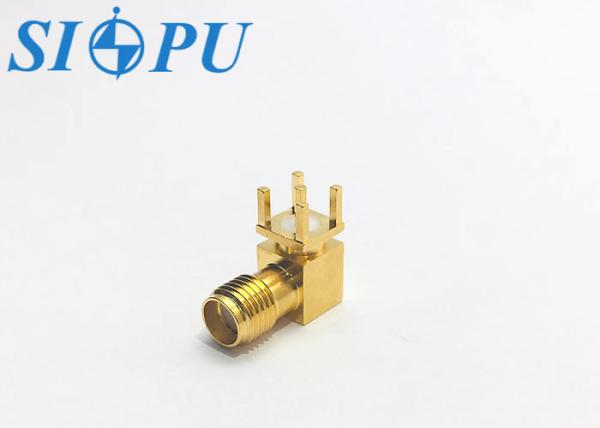

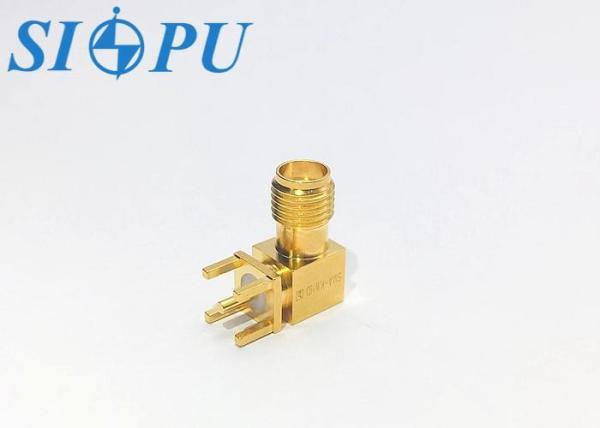

SMA Female RF Coaxial Connector – P Corner Microstrip Type, PCB Soldering

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.06+0.015F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.08√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating / /
