Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-JJ
Certification :
ISO9001-2017, RoHS, CE
Price :
Discuss
Packaging Details :
Carton
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Male to SMA Male RF Coaxial Adapter – Brass Body
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

SMA Male to SMA Male RF Coaxial Adapter – Brass Body

Product Overview

RF coaxial adapters play a key role in ensuring proper signal transmission by bridging connections within the same or across different connector series. This SMA male-to-male adapter enables reliable connection between two SMA female interfaces. Manufactured in compliance with MIL-C-39012 and relevant IEC standards, it ensures compatibility, stable performance, and long service life.

Applications
Commonly used in system conversion and connection, especially in test instruments, RF measurement setups, and test cables.

Key Features

SMA male interface on both ends

Compatible with SMA female connectors

Brass body for durability, corrosion resistance, and cost efficiency

Compact size, high reliability, and excellent electrical performance

Long service life, ideal for frequent testing and modular setups

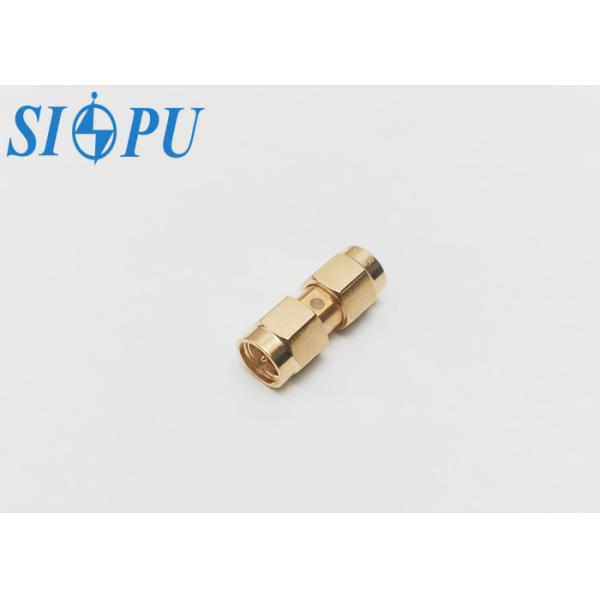

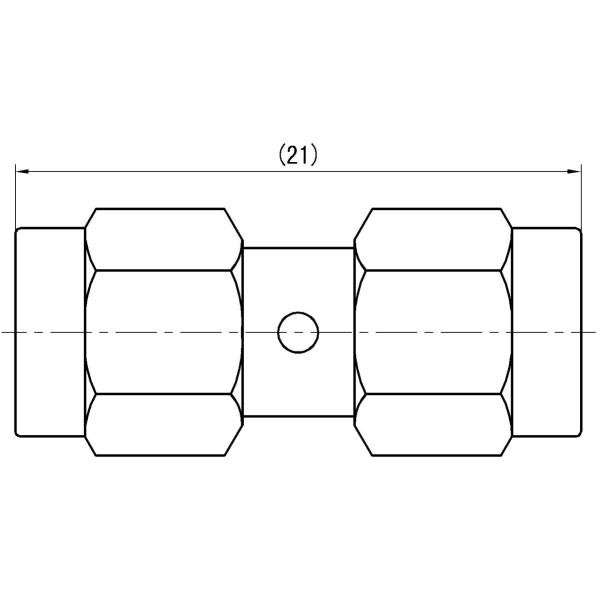

Product Appearance

SMA Male to SMA Male RF Coaxial Adapter – Brass Body

Important Technical Parameter

Electrical property

Temperature range -65~+125℃

Characteristic impedance

50Ω

Frequency range

DC-18GHz

Dielectric withstanding voltage

1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

≥5000MΩ Insertion loss ≤0.06√F(GHz)dB

Contact resistance

Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ

Durability

500 times

Materials and Surface Treatment

Center conductor

Brass, gold plating Insulating medium PTFE

Outer conductor

Brass, gold plating Sealing ring Silicon rubber

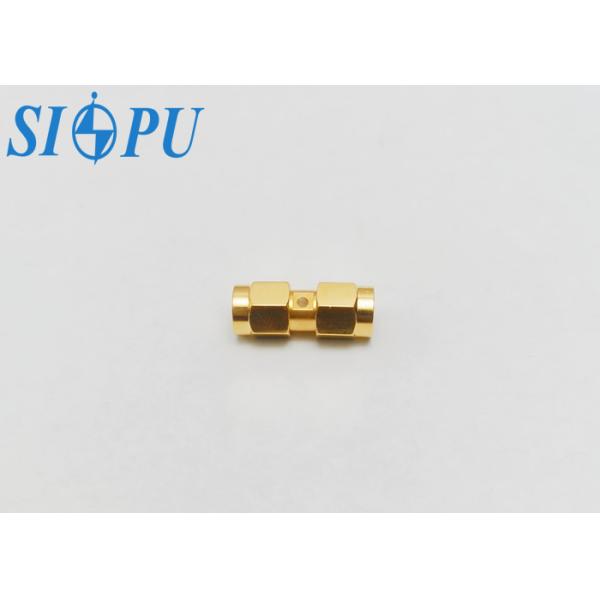

Product Image Gallery

SMA Male to SMA Male RF Coaxial Adapter – Brass BodySMA Male to SMA Male RF Coaxial Adapter – Brass Body
