SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable
SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable
SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable
SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable
SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable
SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-JW5-9
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable
Gender :
male
Type :
Right angle
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable

Product Overview

The SMA RF coaxial connector is a compact, high-performance solution widely used in RF and microwave applications. It features a threaded coupling mechanism and conforms to MIL-C-39012 and IEC60169-15 standards, ensuring full compatibility with global SMA interfaces.

Applications
Test & measurement instruments · Microwave communication systems · Aerospace & navigation · Defense & weapon systems

Product Features

Right-angle (bent) structure for space-efficient installations

Compatible with RG142/U coaxial cable

Superior electrical performance and mechanical stability

Excellent environmental resistance

Fully interchangeable with standard SMA connectors worldwide

Easy to assemble and highly reliable under demanding conditions

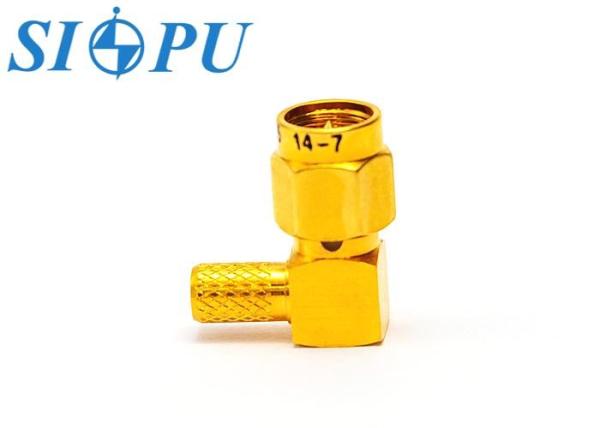

Product Appearance

SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable

Important Technical Parameters

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-12.4GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.15+0.02F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.08√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring Silicon rubber

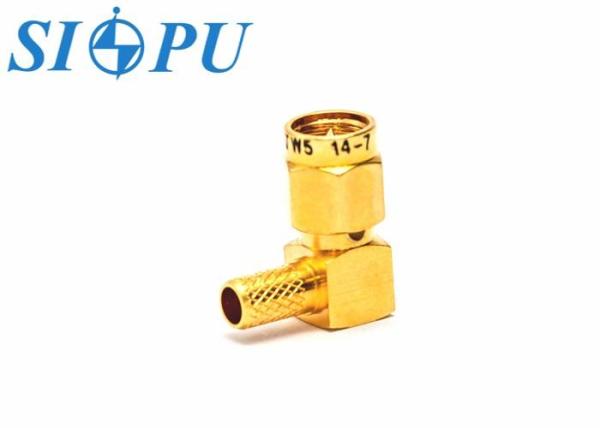

Product Image Gallery

SMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U CableSMA Male Right-Angle RF Coaxial Connector – 90° for RG142B/U Cable
