SMA Male RF Coaxial Connector – Straight Type, Brass Body
SMA Male RF Coaxial Connector – Straight Type, Brass Body
SMA Male RF Coaxial Connector – Straight Type, Brass Body
SMA Male RF Coaxial Connector – Straight Type, Brass Body
SMA Male RF Coaxial Connector – Straight Type, Brass Body
SMA Male RF Coaxial Connector – Straight Type, Brass Body
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-JB2
Certification :
ISO9001-2017, RoHS, CE
Price :
Discuss
Packaging Details :
Carton
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Male RF Coaxial Connector – Straight Type, Brass Body
Gender :
Male
Type :
Straight
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

SMA Male RF Coaxial Connector – Straight Type, Brass Body

Product Overview

SMA connectors are compact, threaded RF connectors and among the most widely used in the industry. Known for their reliability and performance, they are ideal for high-frequency applications such as microwave communications, aerospace navigation, and RF measurement systems.

Applications
Microwave communication, aerospace navigation, antennas, radar systems, and RF instrumentation.

Key Features

Straight type SMA male interface

Compatible with 2# semi-flexible and semi-rigid coaxial cables

Strong interchangeability with standard SMA connectors

High reliability, excellent electrical performance, and long service life

Brass body for cost-effective durability and stable signal transmission

Easy to solder and integrate into RF systems

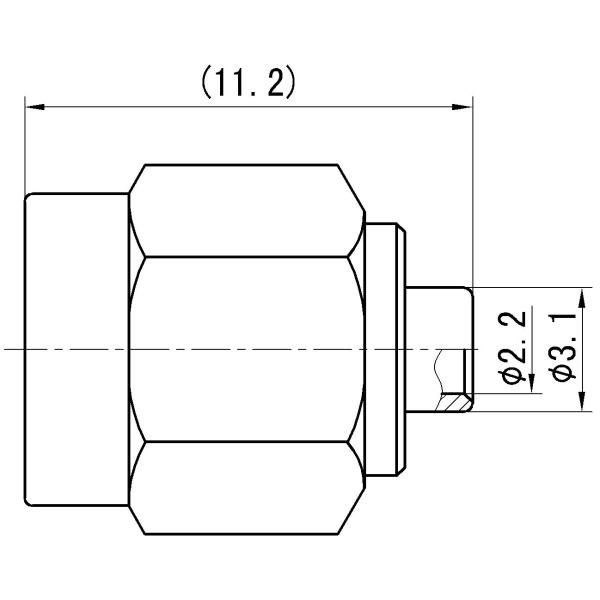

Product Appearance

SMA Male RF Coaxial Connector – Straight Type, Brass Body

Important Technical Parameter

Electrical property

Temperature range

 -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500 times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring Silicon rubber

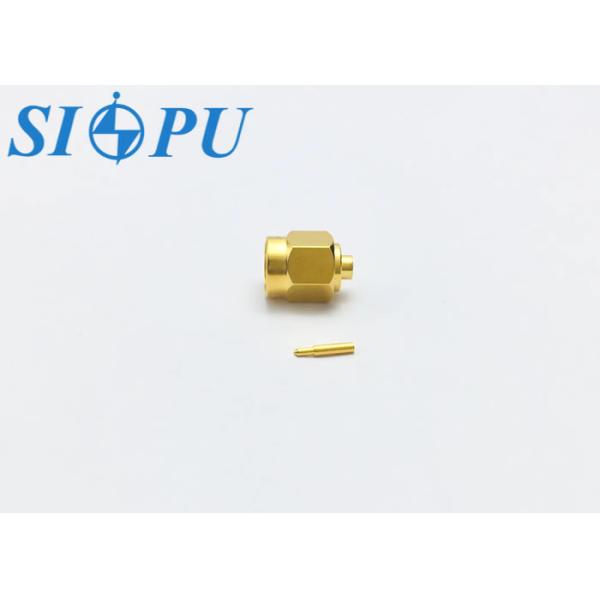

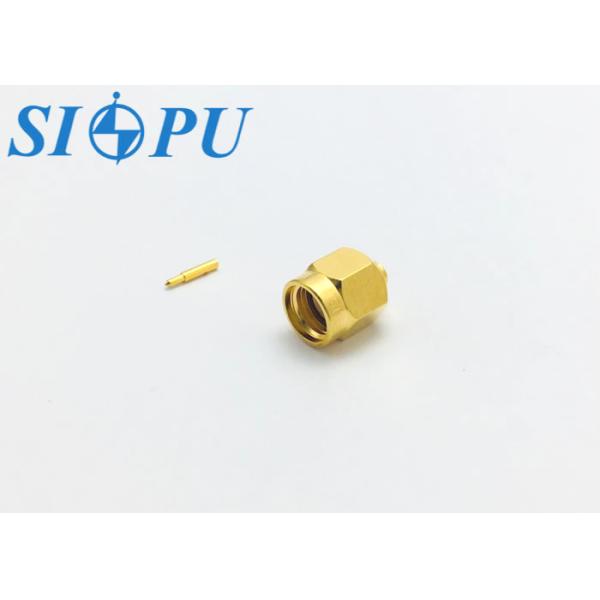

Product Image Gallery

SMA Male RF Coaxial Connector – Straight Type, Brass BodySMA Male RF Coaxial Connector – Straight Type, Brass Body
