Specifications
Brand Name :
SIPU
Model Number :
SMA-JFD191G
Certification :
ISO9001-2017, RoHS, CE
Place of Origin :
China
MOQ :
100
Price :
Discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs/yesr
Delivery Time :
6-8Weeks
Packaging Details :
Carton
Product name :
Micro flange installation of stainless steel SMA RF connector for microstrip applications at 18GHZ
Gender :
Male
Type :
Straight
Material Science :
Stainless steel
Plating :
Passivation
Durability :
500 times
Description

SMA Male RF Coaxial Connector – Flange Mount, Stainless Steel, for Microstrip Applications

Product Description:
SMA series connectors are widely used threaded coaxial connectors designed for secure, high-frequency signal connections. They are commonly employed in RF circuits of digital microwave devices and communication systems to connect microstrip lines or coaxial cables.

Applications:
Ideal for use in networking equipment, wireless communication systems, and telecommunication infrastructure.

Product Features:

  • Threaded coupling for reliable connections
  • Flange-mount design for easy and stable installation
  • Wide frequency range with excellent electrical performance
  • Compact size and long service life
  • Optimized mounting pitch for more efficient space utilization compared to conventional products

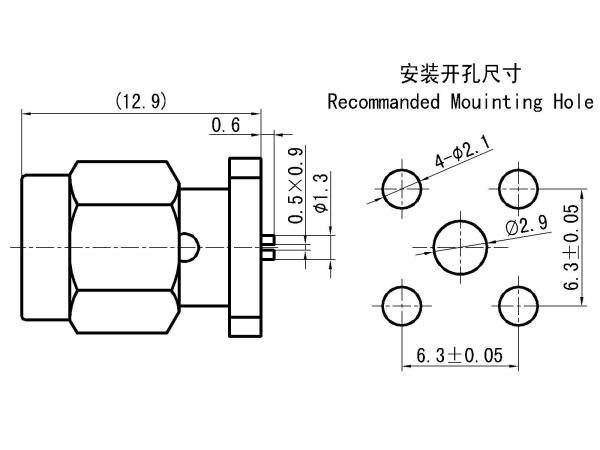

Product Structure Diagram

Micro Flange Installation Of Stainless Steel SMA RF Connector For Microstrip Applications At 18GHZ

Important Technical Parameters

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.05√F(GHZ)dB

Contact resistance

Center conductor

 ≤3.0mΩ Mechanical property

Outer conductor

 ≤2.0mΩ Durability

500times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Stainless steel, passivating Sealing ring Silicon rubber

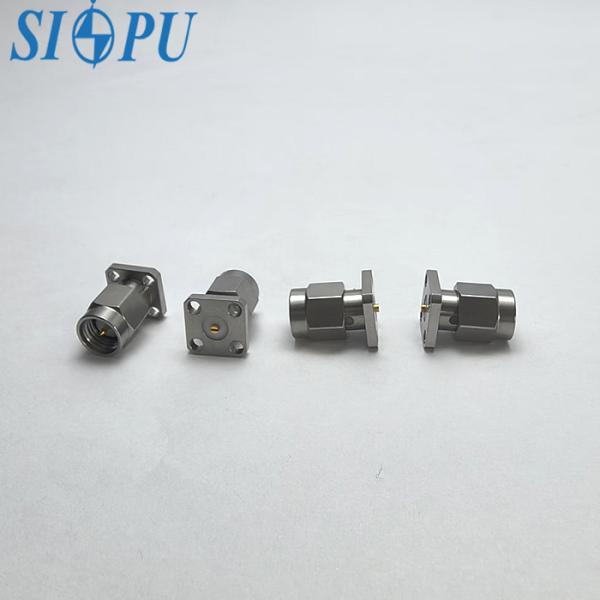

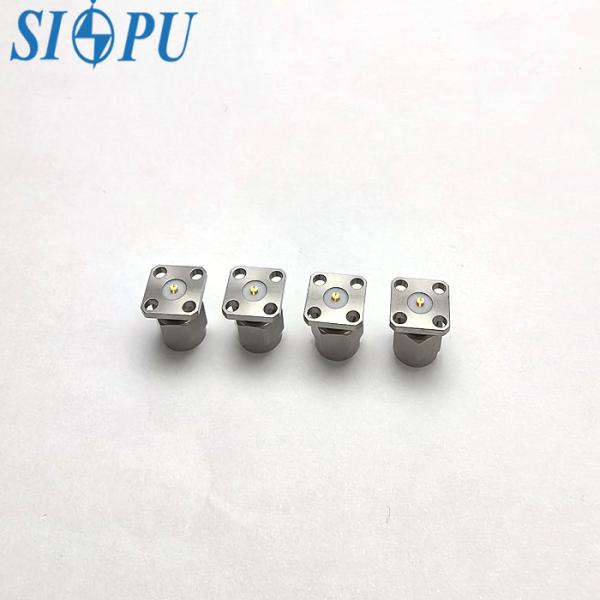

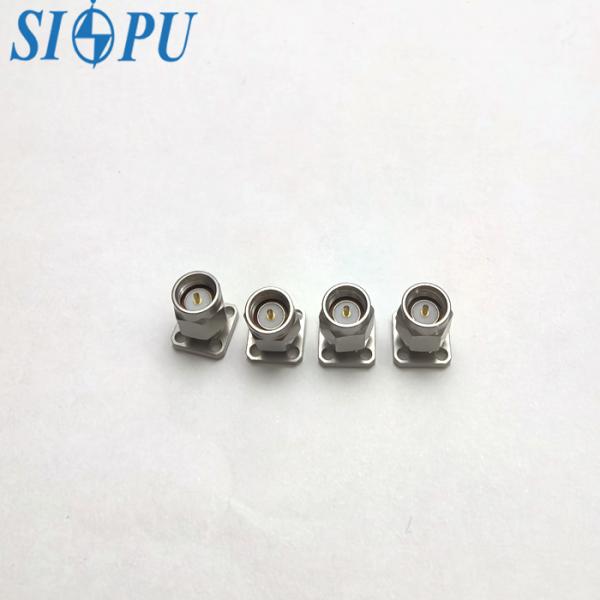

Product Image Gallery
