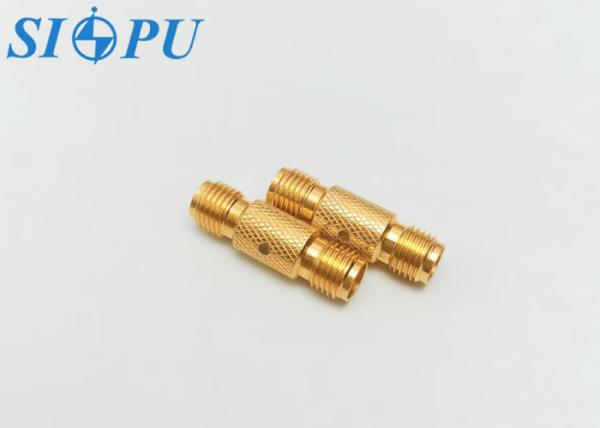

SMA Female to SMA Female RF Coaxial Adapter – Gold Plated
SMA Female to SMA Female RF Coaxial Adapter – Gold Plated
SMA Female to SMA Female RF Coaxial Adapter – Gold Plated
SMA Female to SMA Female RF Coaxial Adapter – Gold Plated
SMA Female to SMA Female RF Coaxial Adapter – Gold Plated
SMA Female to SMA Female RF Coaxial Adapter – Gold Plated
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-KK1
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Female to SMA Female RF Coaxial Adapter – Gold Plated
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

SMA Female to SMA Female RF Coaxial Adapter – Gold Plated

Product Overview

RF coaxial adapters serve as essential bridging components, enabling reliable signal transfer between connectors of the same or different series. This adapter connects two SMA male interfaces, ensuring seamless integration within RF systems.

Applications
Used for system conversion and connection, commonly in test cables, measurement instruments, communication equipment, and RF modules.

Key Features

SMA female interface on both ends, compatible with SMA male connectors

Gold-plated for enhanced conductivity and corrosion resistance

Excellent electrical performance with low insertion loss

Compact size and strong environmental resistance

Ideal for high-frequency applications and RF testing environments

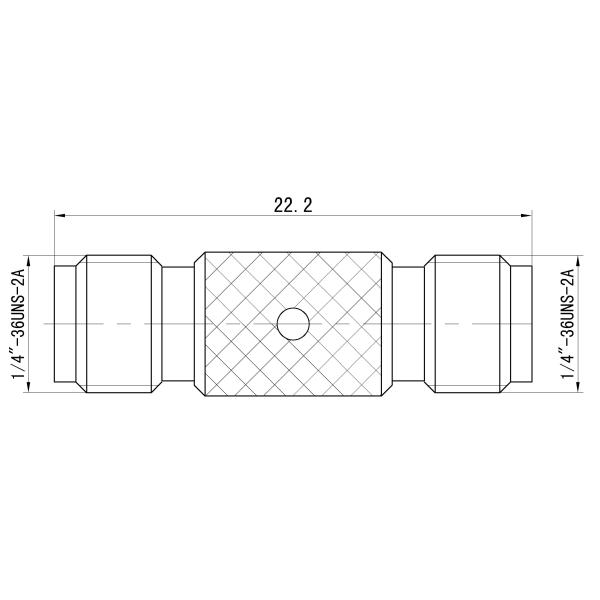

Product Appearance

SMA Female to SMA Female RF Coaxial Adapter – Gold Plated

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.06√F(GHZ)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating / /

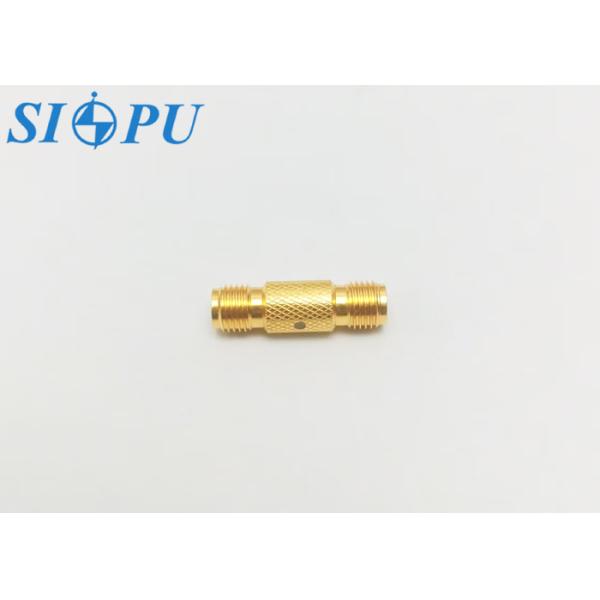

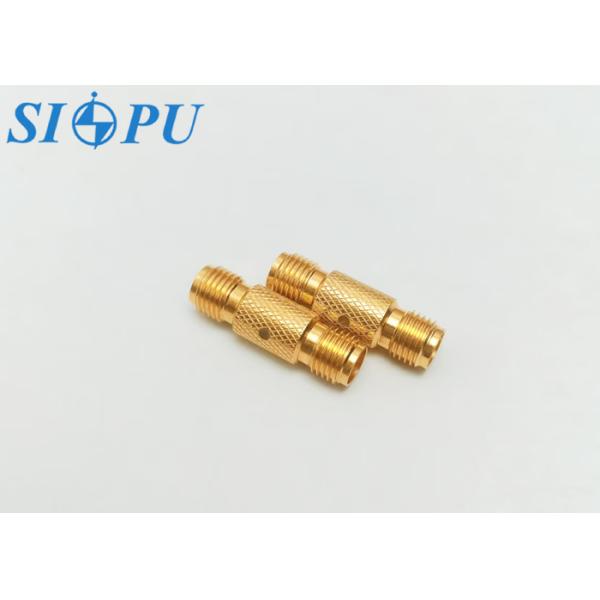

Product Image Gallery

SMA Female to SMA Female RF Coaxial Adapter – Gold PlatedSMA Female to SMA Female RF Coaxial Adapter – Gold Plated
