SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount
SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount
SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount
SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount
SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount
SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-JFD184G
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount
Gender :
Male
Type :
Straight
Material Science :
Stainless steel
Plating :
Gold
Durability :
500 times
Description

SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount

Product Overview

The SMA series is a widely used threaded RF coaxial connector known for its compact size, wide frequency bandwidth, excellent mechanical and electrical performance, and high reliability. It is well-suited for demanding applications in microwave communication, aerospace navigation, and microwave measurement equipment. Designed in accordance with MIL-C-39012 and IEC60169-15, the connector is fully interchangeable with equivalent global products.

Applications
Ideal for telecommunications, wireless communication systems, networking equipment, radar, and aerospace electronics.

Key Features

Four-hole flange mount for secure and vibration-resistant installation

SMA male interface with threaded coupling for stable RF connection

Tail end of the inner conductor features a slot (width 0.5 mm, depth 1.5 mm) for improved soldering compatibility

Compact and lightweight design

Supports broad frequency ranges with excellent return loss and low VSWR

Long service life and strong environmental durability

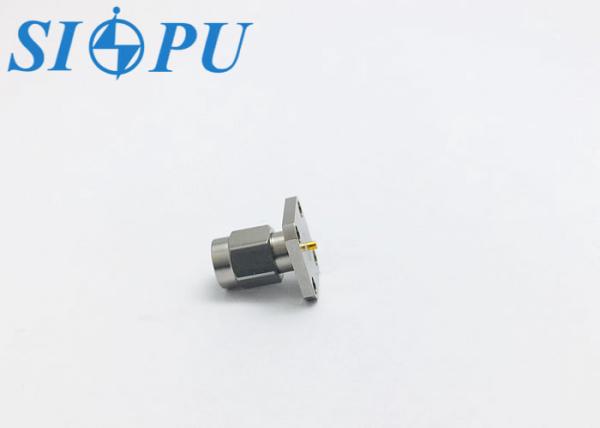

Product Appearance

SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.05√F(GHZ)dB

Contact resistance

Center conductor

 ≤3.0mΩ Mechanical property

Outer conductor

 ≤2.0mΩ Durability

500times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Stainless steel, passivating Sealing ring Silicon rubber

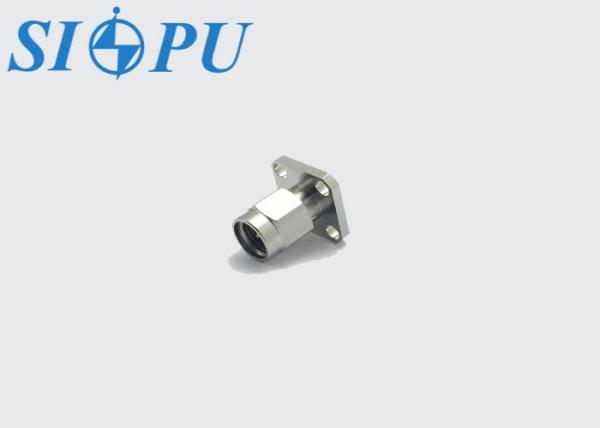

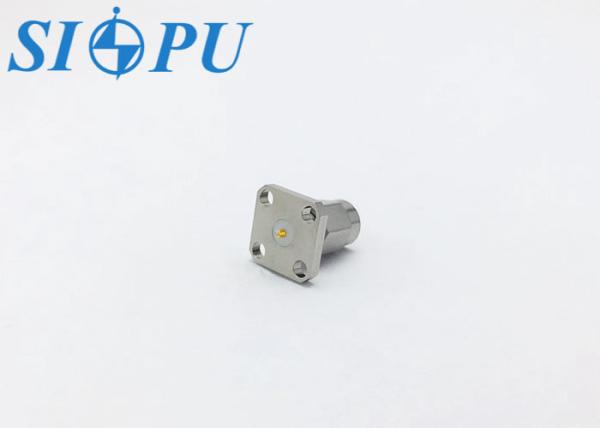

Product Image Gallery

SMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange MountSMA Male RF Coaxial Connector – Microstrip Type, Four-Hole Flange Mount
