SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface
SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface
SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface
SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface
SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface
SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-J5
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface
Gender :
Male
Type :
Straight
Material Science :
Brass
Plating :
Gold
Durability :
500 times
Description

SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface

Product Overview

The SMA series is a widely used threaded RF coaxial connector system known for its compact size, wide frequency bandwidth, and excellent mechanical and electrical performance. Designed in accordance with MIL-C-39012 and IEC60169-15 standards, it is fully interchangeable with internationally compatible SMA connectors.

Applications
Commonly used in telecommunications, networking, wireless communication systems, and RF signal chains requiring high reliability and consistent performance.

Key Features

Straight male SMA interface with threaded coupling

Compatible with RG142/U coaxial cable and 5# center conductor

Compact size and lightweight design for space-constrained applications

High reliability and excellent signal performance across broad frequency ranges

Easy to assemble and suitable for both commercial and industrial use

Fully compliant with MIL and IEC standards for global compatibility

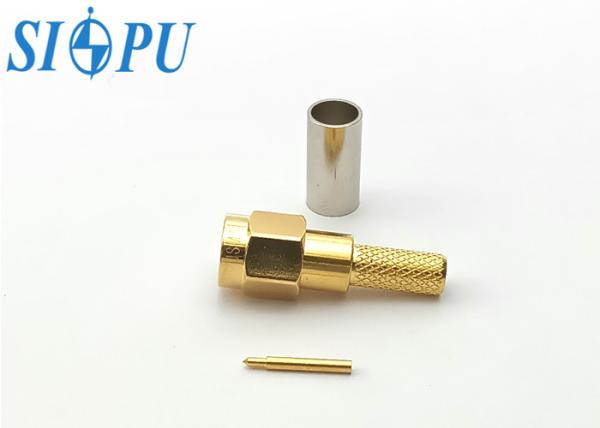

Product Appearance

SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-12.4GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.08√F(GHZ)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Brass, gold plating Insulating medium PTFE

Outer conductor

 Brass, gold plating Sealing ring Silicon rubber

Product Image Gallery

SMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire InterfaceSMA Straight Male RF Coaxial Connector – For RG142/U Cable and 5# Wire Interface
