SMA Female RF Coaxial Connector – PCB Soldering Socket
SMA Female RF Coaxial Connector – PCB Soldering Socket
SMA Female RF Coaxial Connector – PCB Soldering Socket
SMA Female RF Coaxial Connector – PCB Soldering Socket
SMA Female RF Coaxial Connector – PCB Soldering Socket
SMA Female RF Coaxial Connector – PCB Soldering Socket
Specifications
Brand Name :
SIPU
Place of Origin :
China
MOQ :
100
Payment Terms :
L/C, T/T, Western Union
Model Number :
SMA-KHD17
Certification :
ISO9001-2017, RoHS, CE
Packaging Details :
Carton
Price :
Discuss
Delivery Time :
6-8Weeks
Supply Ability :
100000pcs/yesr
Product name :
SMA Female RF Coaxial Connector – PCB Soldering Socket
Gender :
Female
Type :
Straight
Material :
Brass
Plating :
Gold
Durability :
500 times
Description

SMA Female RF Coaxial Connector – PCB Soldering Socket

Product Overview

SMA series connectors are compact, threaded RF connectors known for their wide frequency bandwidth, excellent mechanical and electrical performance, and high reliability. They are widely used in digital microwave equipment, communication systems, aerospace applications, and other high-frequency electronic devices.

Applications
Communications, radar systems, antennas, microwave measurement equipment, and RF modules.

Key Features

Four-hole flange mount for secure PCB or panel installation

Microstrip interface dimensions: φ1.3 × 0.5 × 1.5 mm

Wide frequency bandwidth with low VSWR

Compact size, high durability, and long service life

Excellent electrical performance for high-frequency circuits

Suitable for demanding environments and modular integration

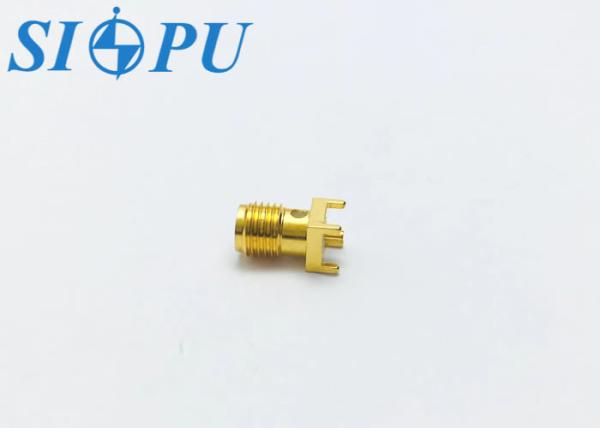

Product Appearance

SMA Female RF Coaxial Connector – PCB Soldering Socket

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss

≤0.05√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium

PTFE

Outer conductor

 Brass, gold plating / /

Product Image Gallery

SMA Female RF Coaxial Connector – PCB Soldering SocketSMA Female RF Coaxial Connector – PCB Soldering Socket
