Specifications
Brand Name :
SIPU
Model Number :
SMA-KFKG
Certification :
ISO9001-2017, RoHS, CE
Place of Origin :
China
MOQ :
100
Price :
Discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000pcs/yesr
Delivery Time :
6-8Weeks
Packaging Details :
Carton
Product name :
Double-Headed SMA Female RF Adapter – Straight Through, Flange Mount
Gender :
Female
Type :
Straight
Material :
Stainless steel
Plating :
Passivation
Durability :
500 times
Description

Double-Headed SMA Female RF Adapter – Straight Through, Flange Mount

Product Overview

RF coaxial adapters serve as essential bridge components for ensuring proper signal transmission between connectors of the same or different series. This double-headed SMA female adapter provides a reliable, straight-through connection, making it ideal for modular integration and system interfacing.

Applications
Commonly used for system interconnection and signal conversion in test cables, measurement instruments, RF modules, and communication equipment.

Key Features

Four-hole flange mount for secure and stable panel installation

Compatible with SMA and 2.92mm series male connectors

Straight-through signal path with low insertion loss

Excellent electrical performance across a wide frequency range

High connection reliability and strong resistance to environmental stress

Ideal for high-frequency applications and test environments

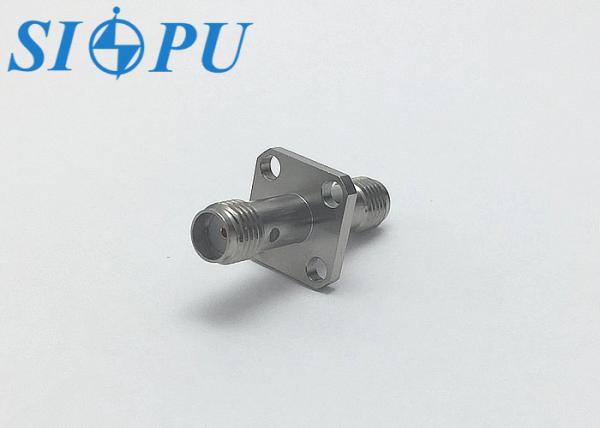

Product Appearance

Double-Headed SMA Female RF Adapter – Straight Through, Flange Mount

Important Technical Parameter

Electrical property

 Temperature range -65～+125℃

Characteristic impedance

 50Ω Frequency range DC-18GHz

Dielectric withstanding voltage

 1000V VSWR ≤1.05+0.012F(GHz)

Insulation resistance

 ≥5000MΩ Insertion loss ≤0.06√F(GHz)dB

Contact resistance

 Center conductor ≤3.0mΩ Mechanical property
Outer conductor ≤2.0mΩ Durability 500times

Materials and Surface Treatment

Center conductor

 Beryllium bronze, gold plating Insulating medium

PTFE

Outer conductor

 Stainless steel, passivating / /

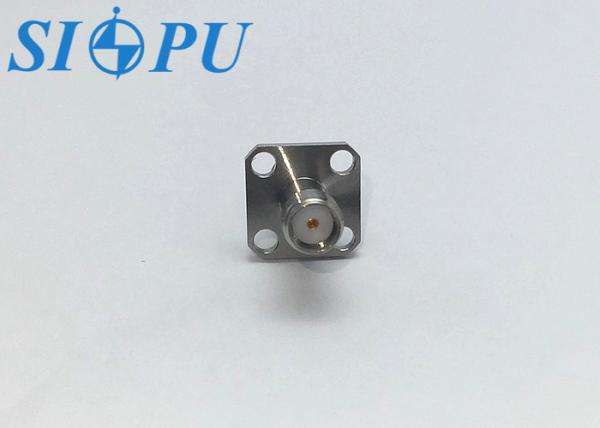

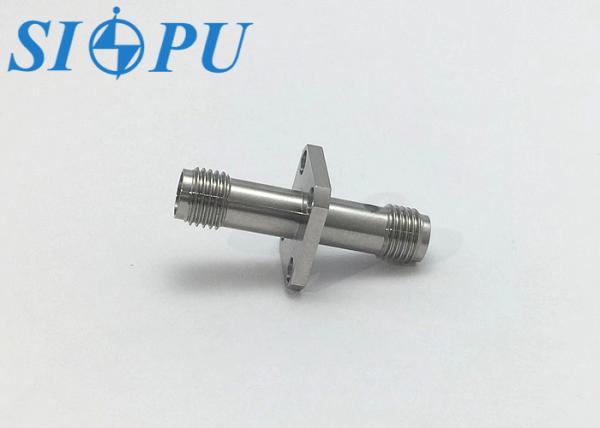

Product Image Gallery

Double-Headed SMA Female RF Adapter – Straight Through, Flange MountDouble-Headed SMA Female RF Adapter – Straight Through, Flange Mount
