6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt
6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt
6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt
6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt
6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt
6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt
6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt
6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt
Specifications
Brand Name :
GUREN
Model Number :
WX6.0-6PS
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Working Voltage Rating :
48 VAC
Current Size :
1A per circuit
Color :
black
Outer Diameter :
6.0mm
Protection Level :
IP40
Max Speed :
100RPM
Description


WX6.0-6PS military-grade micro slip ring adopts gold-gold contact core design, with military-grade surface treatment and super-hard gold plating process. It is specially designed for civil/commercial equipment that pursues high-stability signal transmission. Extremely low resistance fluctuation ensures the reliability of data and power transmission.


micro slip ring product features:

1. Compact slip ring with an outer diameter of only 6.0mm.
2. Small torque, as low as 0.055N·m.
3. Supports 6-way current and signal free selection, single-way 1A current.
4. Flange-free direct connection installation greatly simplifies the installation process.


micro slip ring parameters


Parameter name

Parameter Value

Power

Signal

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥300MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～48VDC/VAC

Wire Specifications

AWG30# Teflon wire

Wire length

Rotor 150mm; stator 200mm (adjustable as required)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP41

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

500,000 rpm


micro slip ring product size drawing

6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt

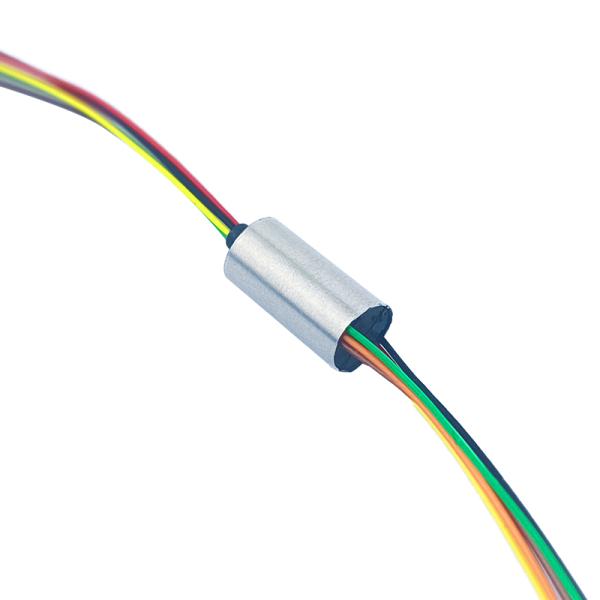

micro slip ring Product Pictures

6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt

6 Way 1A 6mm OD Mini Slip Ring With Aluminum Alloy Shell For Small Pan / Tilt


micro slip ring Application

WX6.0-6PS micro slip rings are mainly used in equipment with narrow installation space requirements, such as drones, stabilizers, aircraft models, small aircraft, micro robots, micro CCTV, small high-speed balls, micro PTZs, small measuring instruments, electric toys, etc.
