Specifications
Brand Name :
GUREN
Model Number :
WX6.5-2P02-1
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Length :
11.8mm
Outer Diameter :
6.5mm
Signal Type :
Analog signal, low frequency signal
Weight :
60g
Wire Gauge :
AWG30# Teflon wire
Running Torque :
0.5mN·m
Description

WX6.5-2P02-1 micro collector ring is a small power slip ring with an outer diameter of 6.5mm and a length of 11.8. It adopts gold-gold contact points and military-grade super-hard gold plating technology to effectively solve the problem of resistance fluctuation, significantly extend the service life and transmission stability, and is the cornerstone of stable transmission of precision civil and commercial rotating equipment.


micro collector ring product features

1. Capsule slip ring is specially developed for precision equipment.
2. 6.05mm micro volume, 2A current meets the requirements of low power transmission.
3. +0.06N·m low torque makes the rotation smoother.
4. Gold-plated material makes the transmission more stable.
5. Flangeless structure, can be installed and deployed by gluing.


micro collector ring parameters


Parameter name

Parameter Value

Power

Signal

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥300MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～48VDC/VAC

Wire Specifications

AWG30# Teflon wire

Wire length

Rotor 150mm; stator 200mm (adjustable as required)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP41

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

500,000 rpm


micro collector ring product size drawing

2 Way 2A Length 11.8mm Micro Collector Rings Electrical 100rpm Speed For Micro Robots

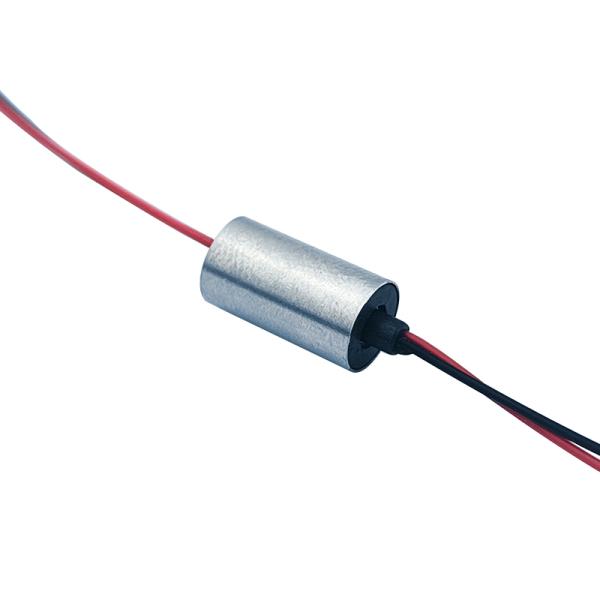

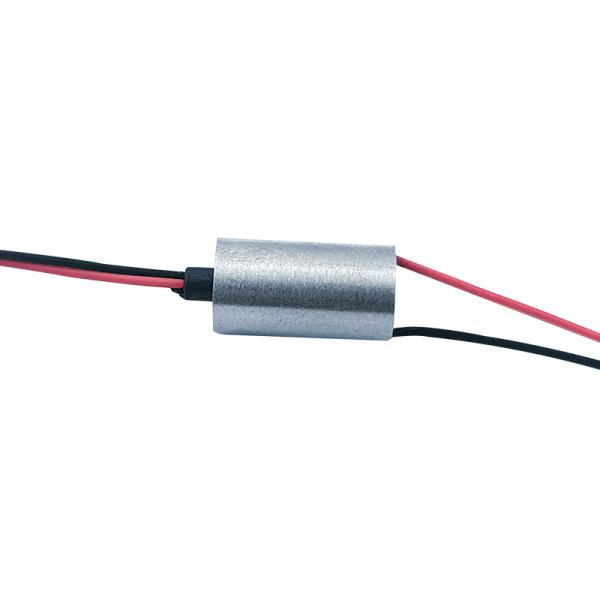

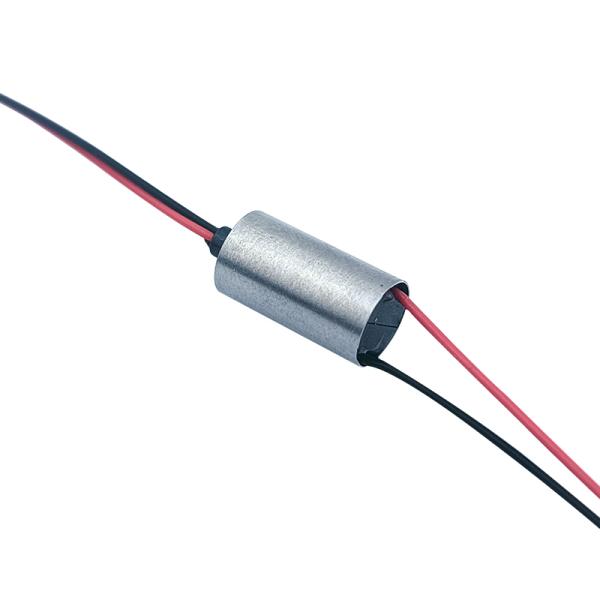

micro collector ring Product Pictures

2 Way 2A Length 11.8mm Micro Collector Rings Electrical 100rpm Speed For Micro Robots

2 Way 2A Length 11.8mm Micro Collector Rings Electrical 100rpm Speed For Micro Robots


micro collector ring Application

WX6.5-2P02-1 micro collector ring is mainly used in equipment with narrow installation space requirements, such as drones, stabilizers, model airplanes, small aircraft, micro robots, micro CCTV, small high-speed balls, micro PTZs, small measuring instruments, electric toys, etc.
