Encoder Signal Capsule Slip Rings for Robotic Joints
The encoder signal capsule slip ring features a capsule-shaped housing made of PBT engineering plastic with an outer diameter of only 22mm. It integrates four 4A power channels and four encoder signal channels. Using AWG26# Teflon wire, it supports a rotation speed of 200 RPM, providing a compact, reliable, and signal-pure integrated power and feedback connection solution for high-precision rotating mechanisms such as servo motors and robot joints.
Key Features
  • Encoder Signal Professional Transmission: Optimized specifically for encoder signal characteristics, ensuring integrity, low noise, and high anti-interference capability of differential signals during rotational transmission, guaranteeing position feedback accuracy.
  • Ultra-Miniature Capsule Design: PBT capsule-type housing with 22mm outer diameter provides an ideal rotary connection component for miniature automation equipment and precision instruments with limited space.
  • Integrated Power and Feedback: Combines four 4A power channels and four encoder signal channels within ultra-small space, providing a complete solution for drive power supply and high-precision position feedback requirements.
  • Reliable Materials and High-Speed Operation: Internal AWG26# Teflon wire ensures high temperature and corrosion resistance; structural design supports stable operation at 200 RPM, meeting most precision motion application requirements.
Technical Specifications
Parameter Value
Dielectric strength 300VCA@50Hz,60s
Insulation resistance ≥500MΩ/300VDC
Dynamic resistance change value ＜0.01Ω
Rated voltage 0～220VDC/VAC
Wire Specifications Teflon wire
Wire length Rotor 250mm; stator 250mm (reference value)
Operating temperature -30℃～+80℃
Operating humidity 0～85%RH
Protection level IP51
Shell material Engineering Plastics
Rotational torque 0.05N.m,+0.01N.m/6-way
Service life 2 million rpm

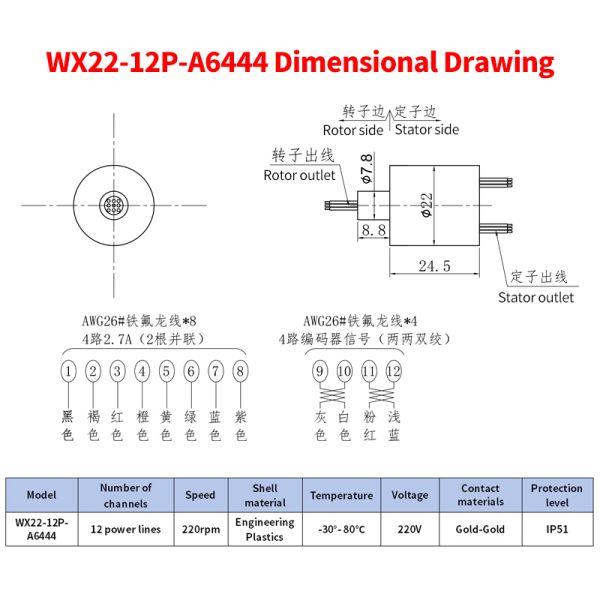

Product Dimensions
Encoder Signal Capsule Slip Ring with 4-channel 4A Power, Gold-Gold Contact, and 22mm Outer Diameter for Robotic Joints
Applications
  • Miniature Robot Joints: Motor drive and built-in encoder signal transmission for precision joints in collaborative robots, surgical robots, etc.
  • High-Precision Rotary Mechanisms: Closed-loop control for optical instrument focusing rings, small radar antenna drive units, and precision instrument turntables.
  • Compact Automation Modules: Direct drive and position feedback for miniature rotary indexing tables and precision alignment platforms.
  • Special Servo Actuators: Special linear or rotary actuators requiring integrated drive and high-precision feedback in space-constrained environments.
Frequently Asked Questions
Q1: What types of encoder protocols does this slip ring support?
This product supports the transmission of common incremental (A/B/Z) encoder differential signals, as well as serial digital signals from absolute encoders such as SSI and BiSS-C. For specific protocols, please provide the signal specifications so that we can confirm compatibility.
Q2: What is the protection rating of the PBT capsule housing? Can it be used in harsh environments?
The standard model provides basic dust and moisture protection. PBT material itself has good chemical resistance and insulation properties. If use in harsh industrial environments with oil and splashes is required, we can provide customized enhanced sealing solutions.
Q3: Can the 4-channel 4A channels be used in parallel to obtain a larger single-channel current?
Yes. By connecting them in parallel, the single-channel current output capability can be increased. However, this needs to be specified during the design and selection phase. We will evaluate the thermal load and structure and provide professional guidance on parallel connection. We do not recommend users to modify it themselves.
