Specifications
Brand Name :
GUREN
Model Number :
WX6.5-4PS
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Length :
0.8cm
Outer Diameter :
0.65cm
Weight :
60g
Crosstalk :
< -50dB
Bandwidth :
<10MHz
Operating Speed :
100 RPM
Description

WX6.5-4PS ultra-miniature capsule slip ring. Gold-gold contact realizes stable transmission of video and control signals, military-grade super-hard gold plating resists frequent rotation wear, small and stable resistance fluctuation, ensuring stable operation of equipment such as PTZ cameras and rotating advertising screens around the clock, and is the first choice for slip rings for security and commercial display equipment.


product features

1. 4-way 1A, outer diameter 6.5mm, suitable for various small space occasions.
2. 0.058N·m micro torque, easy rotation without jamming.
3. Gold-gold contact points to ensure more stable current and signal transmission.
4. Flangeless design, higher space utilization.


parameters


Parameter name

Parameter Value

Power

Signal

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥300MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～48VDC/VAC

Wire Specifications

AWG30# Teflon wire

Wire length

Rotor 150mm; stator 200mm (adjustable as required)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP41

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

500,000 rpm


product size drawing

30AWG Teflon Wire Ultra Micro Capsule Slip Ring Suitable For Small Electric Toys

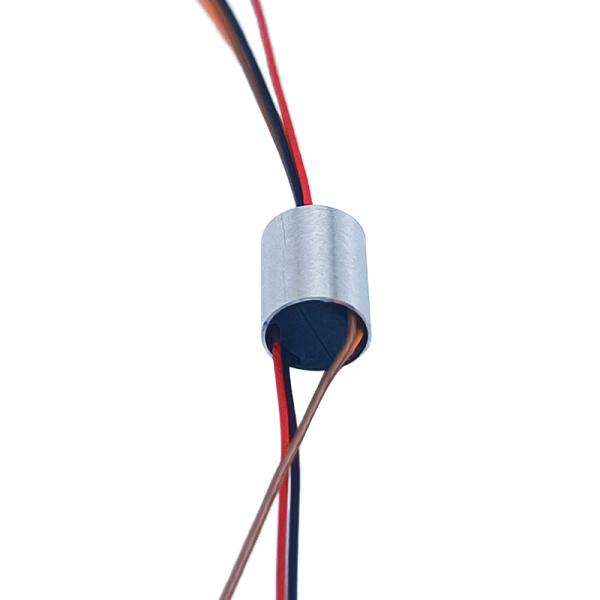

Product Pictures

30AWG Teflon Wire Ultra Micro Capsule Slip Ring Suitable For Small Electric Toys

30AWG Teflon Wire Ultra Micro Capsule Slip Ring Suitable For Small Electric Toys


Application

WX6.5-4PS micro capsule slip ring is mainly used in equipment with narrow installation space requirements, such as drones, stabilizers, aircraft models, small aircraft, micro robots, micro CCTV, small high-speed balls, micro PTZs, small measuring instruments, electric toys, etc.
