Specifications
Brand Name :
GUREN
Model Number :
WX8.5-8PS
Certification :
ISO9001.CE.ROHS
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Outer Diameter :
8.5mm
Weight :
72g
Max Speed :
100RPM per minute
Breakaway Torque :
8 mN·m
Running Torque :
0.5 mN·m
IP Rating :
IP40
Description

The WX8.5-8PS low-power micro electric slip ring is only 13.8mm long and can be easily embedded in the narrow cavity of commercial equipment. The gold-gold contact can effectively ensure the signal transmission without attenuation, and the low torque of 0.06N·m reduces the motor energy consumption by 30%.


product features

1. Ultra-micro flangeless design: Extremely reduces the installation space.
2. Military-grade gold-plated contacts: Ensure ultra-low resistance fluctuations and ensure more stable transmission.
3. Weak signal transmission: Can transmit weak control signals and weak currents.
4. Service life guarantee: Adopt gold-gold contact points combined with military technology, with better durability.
5. The product is stable and reliable, suitable for civilian and commercial fields such as monitoring equipment, precision instruments, and small automation.


parameters


Parameter name

Parameter Value

Power

Signal

Dielectric strength

300VCA@50Hz,60s

Insulation resistance

≥300MΩ/300VDC

Dynamic resistance change value

＜10mΩ

Rated voltage

0～48VDC/VAC

Wire Specifications

AWG30# Teflon wire

Wire length

Rotor 150mm; stator 200mm (adjustable as required)

Operating temperature

-20℃～+80℃

Operating humidity

0～85%RH

Protection level

IP41

Shell material

Engineering Plastics

Rotational torque

0.05N.m,+0.01N.m/6-way

Service life

500,000 rpm


product size drawing

8.5mm Outer Diameter Mini Slip Ring Small Installation Space For Drones

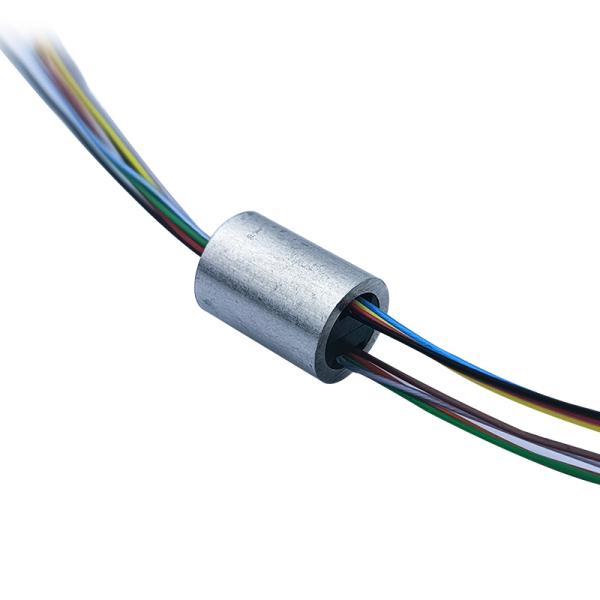

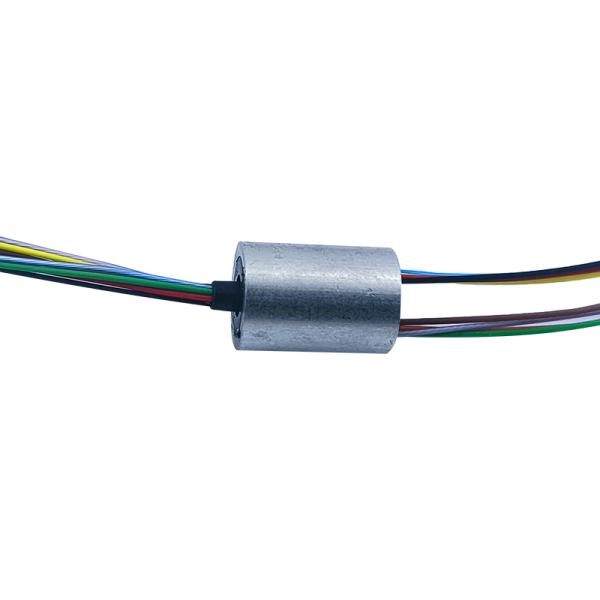

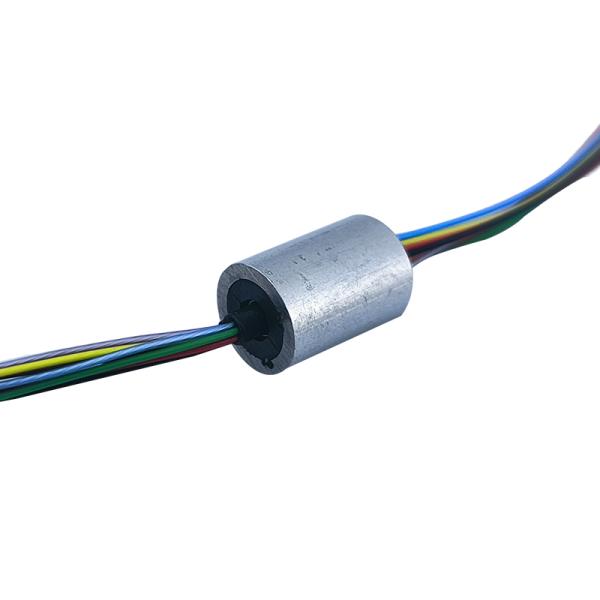

Product Pictures

8.5mm Outer Diameter Mini Slip Ring Small Installation Space For Drones

8.5mm Outer Diameter Mini Slip Ring Small Installation Space For Drones


Application

WX8.5-8PS low power micro electric slip ring is mainly used in UAV, stabilizer, model aircraft, small aircraft, micro robot, micro CCTV, small high speed ball, micro PTZ, small measuring instruments, electric toys and other equipment with narrow installation space.
