180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating
180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating
180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating
180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating
180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating
180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating
180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating
180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating
Specifications
Brand Name :
GuRen
Model Number :
W1M180S-D
Certification :
ISO9001.CE
Place of Origin :
China
MOQ :
1
Price :
＄19-199
Payment Terms :
D/A,D/P,T/T
Supply Ability :
5K units/week
Delivery Time :
3 weeks ARO
Packaging Details :
Standard/On Request
Conventional current :
≤180A
Peak current :
250A
Length :
78mm
width :
36.2mm
Speed :
1000rpm
Radial Runout Tolerance :
≤0.01mm
Description

W1M180S-D high current anti-corrosion slip ring, three-layer structure design, independent outer layer protection, can be used in various complex and harsh environments, 250A peak current, can be used for high-power machinery and equipment.


W1M180S-D high current anti-corrosion slip ring Product features

1. Patented liquid packaging technology makes the product more applicable to the installation environment.
2. Superconducting materials such as mercury and gallium alloy make the contact resistance smaller and the transmission more economical.
3. Stainless steel 316L shell makes the product more corrosion-resistant.
4. The friction of liquid rotation is extremely small, which increases the service life of the product.


W1M180S-D high current anti-corrosion slip ring Product parameters


Parameter name

Parameter Value

Insulation resistance

>35 mΩ

Contact resistance

＜1mΩ

Rated voltage

0～400VDC/VAC

Maximum frequency

200MHz

Working current

10-1500rpm(See the specific model, can be customized)

Operating temperature

-30℃～+60℃

Operating humidity

0～85%RH

Protection level

IP51

Shell material

Stainless steel/aluminum alloy

Rotational torque

35-2000G·CM(See specific model)


W1M180S-D high current anti-corrosion slip ring Product size drawing


180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating

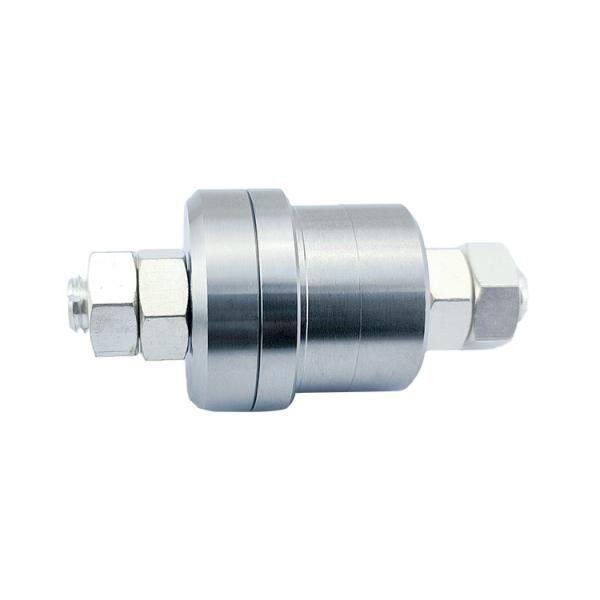

W1M180S-D high current anti-corrosion slip ring Product Pictures

180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating


180A High Amp Slip Ring Anti Corrosion 316L Stainless Steel Shell Special For Electroplating


W1M180S-D high current anti-corrosion slip ring Application scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
