Anti-High Frequency Interference Gas-Electric-Water Hybrid Slip Ring
45# Steel Air Shaft
Product Overview
This anti-high frequency interference gas-electric-water hybrid slip ring is specifically engineered for complex industrial environments with high-frequency electromagnetic interference. Featuring a composite structure of aluminum alloy shell and high-strength 45# steel pneumatic shaft, it integrates one pneumatic channel, two water channels, and twelve 5A electrical channels with targeted anti-high frequency interference treatment. Supporting speeds up to 250 rpm and maximum pressure of 1.0 MPa, it provides stable and reliable integrated gas, water, and electrical transmission for rotating equipment in harsh electromagnetic environments.
Key Features
  • High-Frequency Interference Resistant Design: Specialized shielding and filtering for high-frequency electromagnetic environments, effectively suppressing radio frequency interference (RFI) and electromagnetic interference (EMI), ensuring stable transmission of sensitive signals and control commands.
  • Integrated Pneumatic, Electrical, and Water Media: Single slip ring integrates one pneumatic path, two water paths, and twelve 5A circuits, providing comprehensive synchronous transmission for multiple media in complex equipment.
  • High-Strength 45# Steel Pneumatic Shaft: Core pneumatic shaft made of 45# steel with excellent torsional strength and wear resistance, ensuring structural stability and long service life under high-frequency vibration and prolonged rotation.
  • High-Pressure, High-Speed Dynamic Sealing: Supports working pressure of 1.0MPa and speed of 250rpm, employing media-resistant sealing materials to ensure leak-free, low-wear operation of pneumatic and water paths during dynamic rotation.
Technical Parameters
Electrical Parameters Gas Parameters
Dielectric strength: 500VCA@50Hz,60s Number of trachea: 3 in 3 out
Insulation resistance: ≥1000MΩ/500VDC Pressure: 1MPa
Dynamic resistance change value: ＜10mΩ Rotational torque: <0.3N.m
Rated voltage: 0～220VDC/VAC Rotation speed: 200rpm
Wire Specifications: Teflon wire (current-dependent) Shell material: Aluminum Alloy
Wire length: Default 500mm (Customizable) Temperature: -30℃～+80℃
Contact material: Precious metal contacts Operating humidity: 0～85%RH
Protection level: IP51

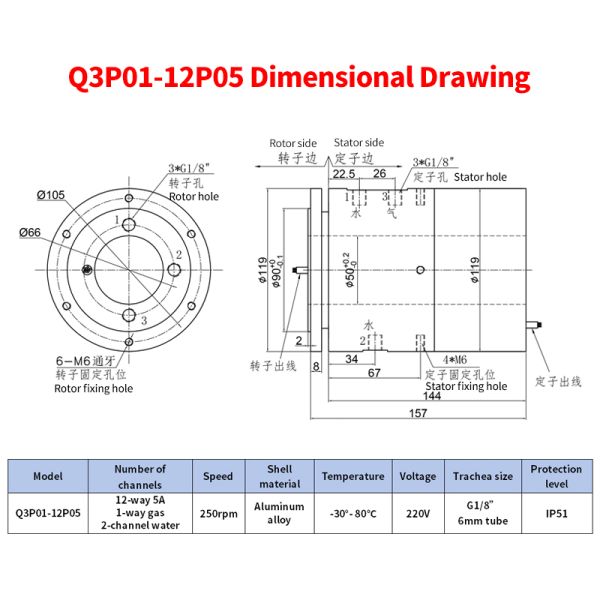

Technical Drawings
Anti-High Frequency Interference Gas-Electric-Water Hybrid Slip Ring with 45# Steel Air Shaft and 12-Way 5A Electrical Channels
Application Scenarios
  • High-frequency induction heating equipment: Cooling water circulation, pneumatic positioning, and power transmission for rotary hardening machine tools and brazing worktables.
  • RF plasma equipment: Integrated connection of cooling water, working gas, and RF power supply for rotating electrodes.
  • Welding and cutting robots: Cooling water circuits, protective gas circuits, and rotational transmission of high-current welding cables for welding torches.
  • Semiconductor and photovoltaic equipment: Medium and signal transmission in rotating chambers with RF interference, such as PECVD and etching machines.
  • Electromagnetic compatibility testing turntables: Rotary platforms for testing in environments with strong electromagnetic interference, requiring interference-resistant transmission.
Frequently Asked Questions
Q1: What specific measures are included in "high-frequency interference resistance"?
A: These mainly include: 1) Independent shielding of critical signal lines; 2) Optimized internal grounding to create a low-impedance interference return path; 3) Using electromagnetic shielding materials to isolate internal and external interference; 4) Filtering of input and output ports. These measures work together to ensure stable signal transmission within the typical industrial high-frequency interference band of 10kHz to several GHz.
Q2: Can the 12-channel 5A circuit be used to transmit high-frequency signals such as encoders?
A: Yes. Thanks to the anti-interference design, these channels are capable of transmitting high-frequency signals. For particularly sensitive differential signals (such as encoder A/B/Z), we recommend using twisted-pair shielded cables and specifying channels for targeted optimization.
Q3: Does the 45# steel pneumatic shaft require rust prevention treatment?
A: Yes. The 45# steel surface is nickel-plated or chrome-plated for rust prevention to cope with the potentially humid environment of the water channel. For special corrosive media, stainless steel pneumatic shafts can be customized.
Q4: Does the water channel support hot water or hot oil?
A: Standard seals are suitable for clean water or emulsions at temperatures ranging from 0-80℃. For high-temperature hot water, hot oil, or corrosive media, please provide the media type, temperature, and pressure parameters. We can then select appropriate high-performance sealing materials such as fluororubber and perfluoroether.
