Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Packaging Details :
Wooden box
Supply Ability :
600 set/month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1 SET
Delivery Time :
7 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model Number :
YNT55A
Model :
YNT55A
Product name :
Baosi screw air end
Condition :
New
Machinery Test Report :
Not Available
Type :
Pump
Exhaust volume :
1.06 m3/min
Injection volume :
11.4L/min
Application :
for 7.5-11kw screw air compressor
Packing :
Wooden Carton Packing
MOQ :
1 Pcs
Color :
Picture Showed
RPM :
3500
After Warranty Service :
Online support
Description

High Quality Screw Air Compressor Spare Part Baosi Screw Air End YNT55A with Wholesale Price

1. The whole series of rotors are processed by KAPP grinder imported from Germany, with high precision and high efficiency.
2. It can be driven by belt or directly connected, and the application is flexible and convenient.
3. The optimized design of the host structure makes the overall structure more compact and beautiful.

Technical Features

No transmission losses
Large airends running at low speed are more efficient
1: 1 drive lowers maintenance costs
Inverter can be equipped with a flexible operational control gas, to reach energy-saving effect

Technical Parameters

Model Rotating speed Applicable models
YNT46A 3500 ≤5.5kw 7.5hp
YNT46A 5500 5.5kw 7.5hp
YNT55A 3600 7.5kW 10HP
YNT60A 2980 7.5kW 10HP direct driven
YNT70A 2980 11kW 15HP direct driven
YNT70B 2980 15kW 20HP direct driven
YNT80A 2980 18.5kW 20HP direct driven
YNE117RA 2980 22kW 30HP direct driven
YNE133RA 2980 30kW 40HP direct driven
YNE143RA 2980 37kW 50HP direct driven
YNE143RB 2980 45kW 60HP direct driven
YNE178RA 2980 75kW 100HP direct driven
YNE178RB 2980 90kW 125HP direct driven
YNE204RA 2980 110kW 150HP direct driven
YNE204RB 2980 132kW 175HP direct driven

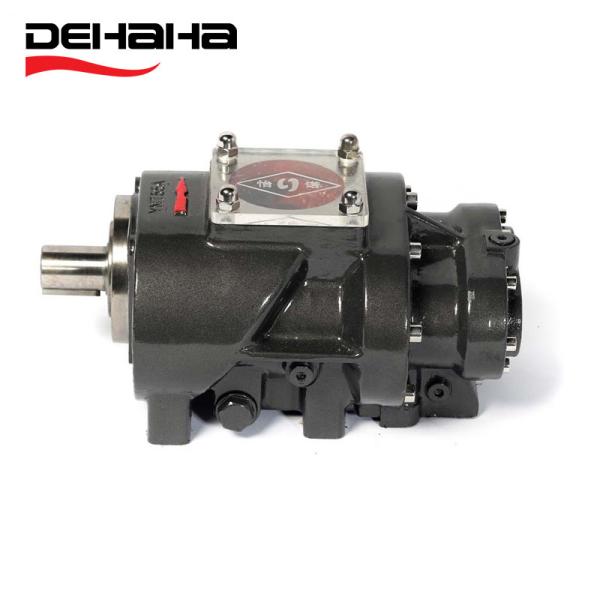

3500RPM Rotary Screw Air Compressor Head 11kw YNT55A Screw Air End
Our Services

1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.

FAQ

Q1:Are you factory or trading company?

A1: We are factory.

Q2:Where is your factory located? How can I visit there?

A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

Q3: Will you provide some spare parts of the machines?

A3: Yes, of course.

Q4: Warranty terms of your machine?

A4: Two years warranty for Air End, one year for spare part.

Q5: How long will you take to arrange production?

A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.

Q6:How does your factory do regarding quality control?

A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

Q7: Can you accept OEM orders?

A7: Yes, with professional design team, OEM orders are highly welcome.
