Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Model Number :
EVO6
Packaging Details :
Wooden box
Supply Ability :
600 set/month
MOQ :
1 SET
Price :
Negotiate
Certification :
CE/ISO9001
Delivery Time :
7 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Applicable Industries :
Air compressor
Showroom Location :
Canada, United States, Indonesia, India, Mexico, Russia, Thailand, Sri Lanka, South Africa, Malaysia, Australia
Condition :
New
Type :
Screw
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
Customized
Weight :
55kg
Warranty :
2 years, 12 months
Working Pressure :
7~13bar
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
2 years
Core Components :
PLC, Bearing, Air end
Gas Type :
Air
Product name :
Germany original air compressor screw head EVO3
Delivery :
2.55m3/min
Model :
EVO6
Rotating speed :
3500r/min
MOQ :
2PCS
OEM :
Welcome
Certificate :
ISO9001/CE/TUV
Packing :
Carton Bags
Power :
15kW
Port :
Shanghai
Description

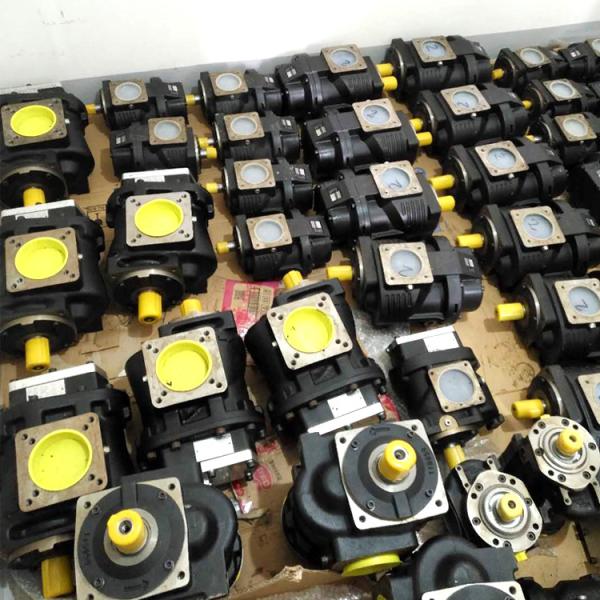

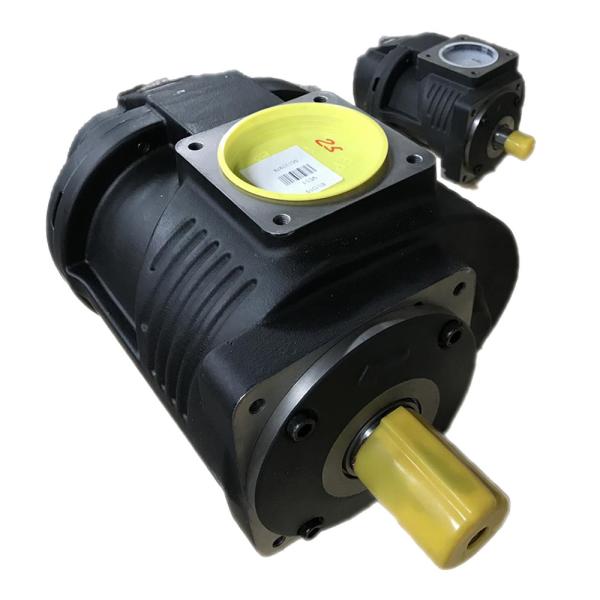

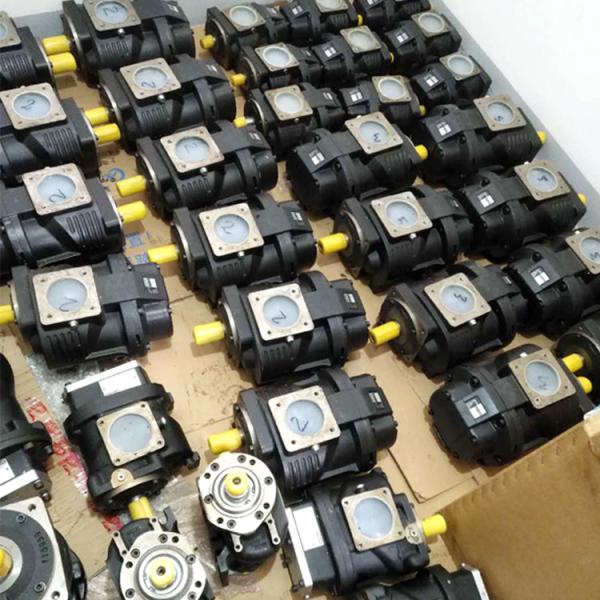

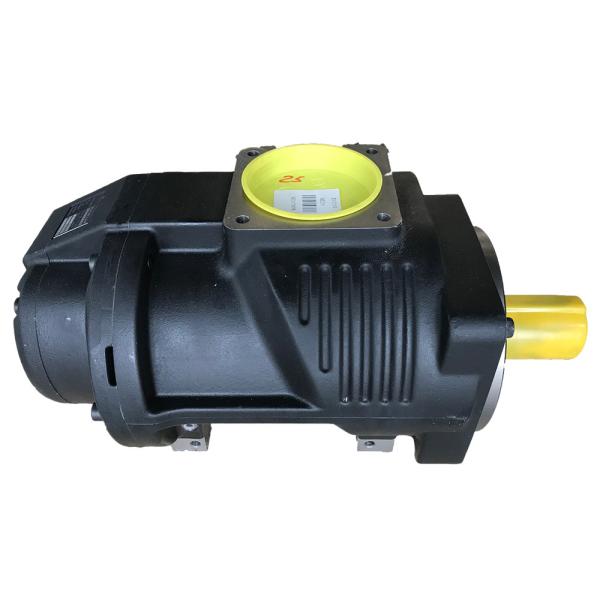

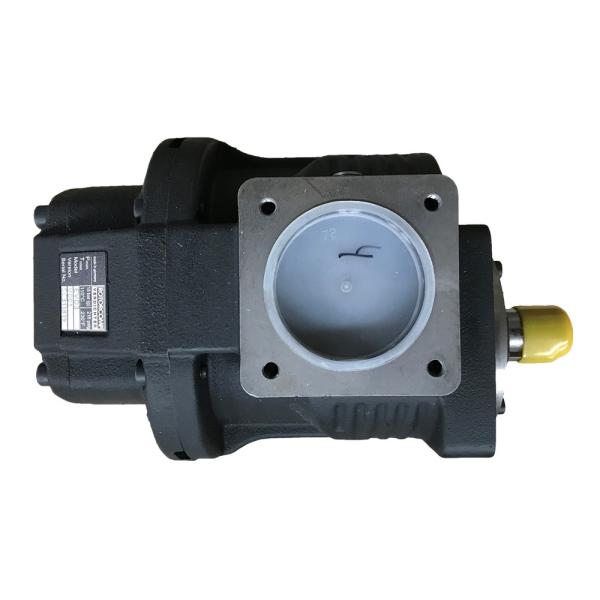

Rotorcomp Compressor Head EVO6 Replace B101 Germany Original Air Compressor Screw Airend EVO6
  • Germany Rotorcomp Original
  • Long life warranty
  • Stable running
  • Enough flow rate
  • Normal for 18.5-30KW
  • Made in Germany


RELIABLE AND VERSATILE
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.

The comparison table of new and old models is as follows, there are slight changes in size, please contact the seller for drawings

EVO2 can replace the original B40
EVO3 can replace the original B60
EVO6 can replace the original 101
EVO9 can replace the original B170
EVO15 can replace the original B201
EVO28 can replace the original B260

RELIABLE AND VERSATILE
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.

ADVANTAGES OF OUR

EVO® TECHNOLOGY
1.New ROLLING PROFILE® - ultimate efficiency with reduced noise
2.Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE® › Wide operating pressure range from 5 to 15 barg
3.High quality manufacturing and assembling - "Made in Germany"
4.Quality assurance - bench test of every air end before leaving our factory
5.Easy application selection with our new ROTORCOMP®SIZING AIR software
5.Highest flexibility for your package design
• Suitable for all types of drive motors
• Drive options: Belt drive, direct drive, internal gear drive
• Base and face-flange mounting

ULTIMATE EFFICIENCY AND REDUCED NOISE THROUGH
1. High volumetric output due to Reduced internal leakage
• Thermally optimized oil injection system
• Improved suction port efficiency giving reduced internal losses
2.Low power consumption due to
•Optimized torque characteristics and reduced internal friction
• Improved outlet port with lower pressure losses
3.Reduced noise and low vibration due to
• Smooth rolling of the rotors with new ROLLING
PROFILE® •Optimized outlet port
Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End

Technical parameter
Model Motor Power(min~max) Max Flow rate Pressure Range Dimensions Weight
kW HP m3/min cfm bar psi Length Width Height kg
EVO2 2.2~11 3~15 1.6 56 5~15 7~220 251 160 136 16
EVO3 5.5~18.5 7~25 2.9 102 5~15 7~220 285 184 148 21
EVO6 15~37 20~50 6.2 220 5~15 7~220 372 236 191 45
EVO9 22~55 30~75 8.4 297 5~15 7~220 419 276 218 69
EVO15 45~90 60~120 14.2 500 5~15 7~220 540 331 264 126
EVO28 75~160 100~215 26.1 920 5~15 7~220 669 445 354 269
EVO42 132~250 175~335 38.3 1353 5~15 7~220 / / / 470
EVO76 160~540 214~725 76 2678 3.5~17 50~250 / / / 1250
About us

Dehaha Compressor was founded in 1996 with over 150 skilled employees and more than 25 R&D engineersteams ’ .
We focus on the research & develop,manufacture and energy-saving solutions of screw air compressor to create
value for customers and society.In 2018 our total sales volume approached 15 million US dollars.By over 23 years
enhanced experiences of designing,producing and marketing,today our valued customers are over 130 countries.


Germany Standard and 13 years exporting experience help us won more than 50 loyal overseas agents.

Dehaha’s primary businesses focus in following key areas:
Oil-injected rotary screw compressors
Portable screw air compressors
Oil free air compressors
High pressure air compressors
Air treatment equipment

Rotorcomp Air Compressor Parts EVO6 B101 Germany Air Compressor Air End

Our Services

1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.
