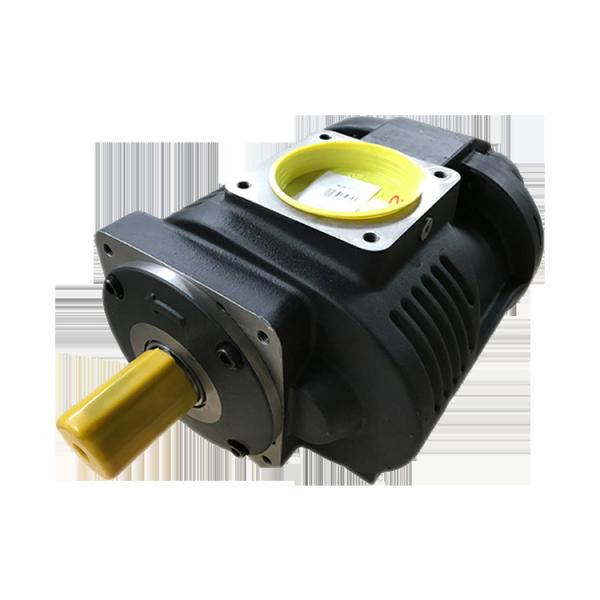

Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Packaging Details :
Wooden box
Supply Ability :
600 set/month
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1 SET
Delivery Time :
7 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Model Number :
EVO2NK
Type :
Pump
Product name :
screw air end
Model :
EVO2NK
Warranty :
12 Months
Application :
screw air compressor
Product Keywords :
screw air compressor with aerzen air end
Weight :
51kg
Port :
Shanghai
Description
Dehaha factory stable Rotorcomp air end EVO2NK air compressor pump parts

RELIABLE AND VERSATILE
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.

ADVANTAGES OF OUR

EVO® TECHNOLOGY
1.New ROLLING PROFILE® - ultimate efficiency with reduced noise
2.Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE® › Wide operating pressure range from 5 to 15 barg
3.High quality manufacturing and assembling - "Made in Germany"
4.Quality assurance - bench test of every air end before leaving our factory
5.Easy application selection with our new ROTORCOMP®SIZING AIR software
5.Highest flexibility for your package design
• Suitable for all types of drive motors
• Drive options: Belt drive, direct drive, internal gear drive
• Base and face-flange mounting

ULTIMATE EFFICIENCY AND REDUCED NOISE THROUGH
1. High volumetric output due to Reduced internal leakage
• Thermally optimized oil injection system
• Improved suction port efficiency giving reduced internal losses
2.Low power consumption due to
•Optimized torque characteristics and reduced internal friction
• Improved outlet port with lower pressure losses
3.Reduced noise and low vibration due to
• Smooth rolling of the rotors with new ROLLING
PROFILE® •Optimized outlet port
Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End

Product Parameters

Model Motor Power(min~max) Max Flow rate Pressure Range Dimensions Weight
kW HP m3/min cfm bar psi Length Width Height kg
EVO2 2.2~11 3~15 1.6 56 5~15 7~220 251 160 136 16
EVO3 5.5~18.5 7~25 2.9 102 5~15 7~220 285 184 148 21
EVO6 15~37 20~50 6.2 220 5~15 7~220 372 236 191 45
EVO9 22~55 30~75 8.4 297 5~15 7~220 419 276 218 69
EVO15 45~90 60~120 14.2 500 5~15 7~220 540 331 264 126
EVO28 75~160 100~215 26.1 920 5~15 7~220 669 445 354 269
EVO42 132~250 175~335 38.3 1353 5~15 7~220 / / / 470
EVO76 160~540 214~725 76 2678 3.5~17 50~250 / / / 1250


Air Compressor Stable Screw Air End EVO2NK Stable Rotorcomp Air End
