Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Packaging Details :
Wooden box
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1 SET
Delivery Time :
7 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 set/month
Model Number :
AB-780
Product name :
air compressor head
Type :
Compressor Head
Model :
AB-780
Capacity :
11.9m3/min
Package :
Carton Box
MOQ :
1
Application :
General Industry
OEM :
Welcome
Working life :
4000-6000hours
Keyword :
Air Compressor Spare
Description

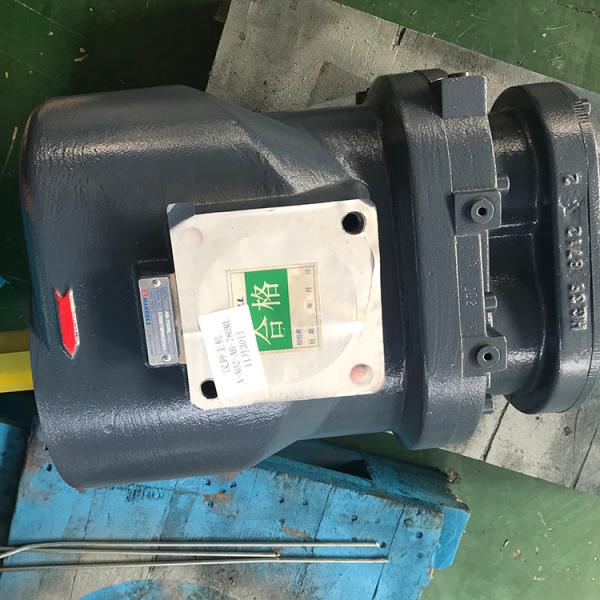

AB-780 Hanbell Air End for 100HP 75kW Screw Air Compressor Machines

  • Taiwan Hanbell Original
  • Long life warranty
  • Stable running
  • Big flow rate
  • All series of Hanbell screw air end,we have them all in stock, including AA,AB(6pcs bearings),AC( 4 pcs bearings).

Technical Parameters

Model AB-077 AB-130 AB-240 AB-350R AB-420 AB-480R AB-600R AB-780R
Output Power(kW) 5.5~15 11~22 18.5~37 30~55 30~55 45~75 45~75 55~110
Maximum air volume (m3 / min) 2.5 4.6 6.4 8 10.8 12.5 14 18
Maximum speed of male rotor (rpm) 8000 6000 5500 4500 5000 5000 4500 4500
Maximum exhaust temperature (° C) 110 110 110 110 110 110 110 110
Maximum exhaust pressure (Mpa) 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Weight (kg) 25 40 64 118 109 145 155 195

100HP 75kW Screw Compressor Air End AB 780 Hanbell Air End100HP 75kW Screw Compressor Air End AB 780 Hanbell Air End

We also have BAOSI, ROTORCOMP brands,pls contact with us to get more info.

Our service

1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.

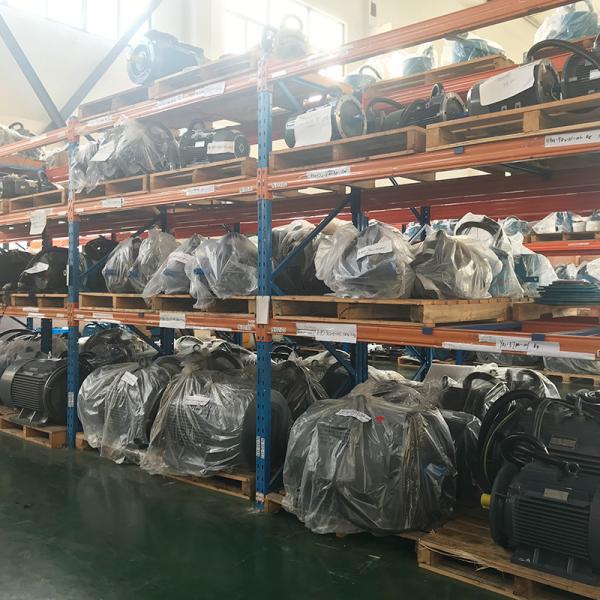

5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.

100HP 75kW Screw Compressor Air End AB 780 Hanbell Air End
FAQ

Q1:Are you factory or trading company?
A1: We are factory.

Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

Q3: Will you provide some spare parts of the machines?
A3: Yes, of course.

Q4: Warranty terms of your machine?
A4: Two years warranty for Air End, one year for spare part.

Q5: How long will you take to arrange production?
A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.


Q6:How does your factory do regarding quality control?
A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

Q7: Can you accept OEM orders?
A7: Yes, with professional design team, OEM orders are highly welcome.
