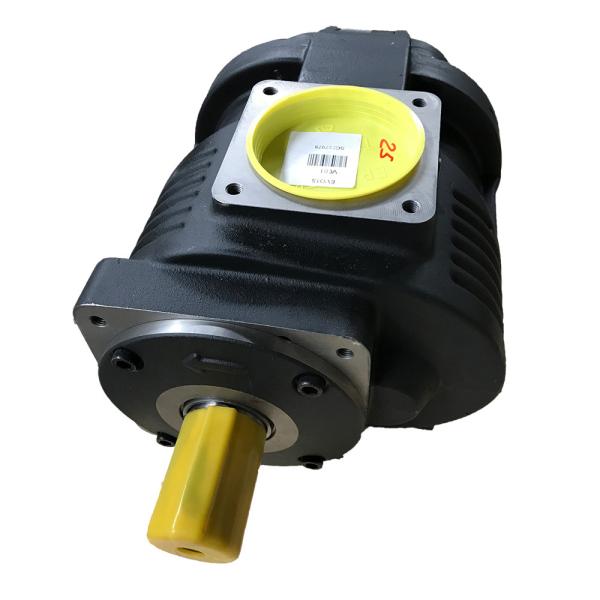

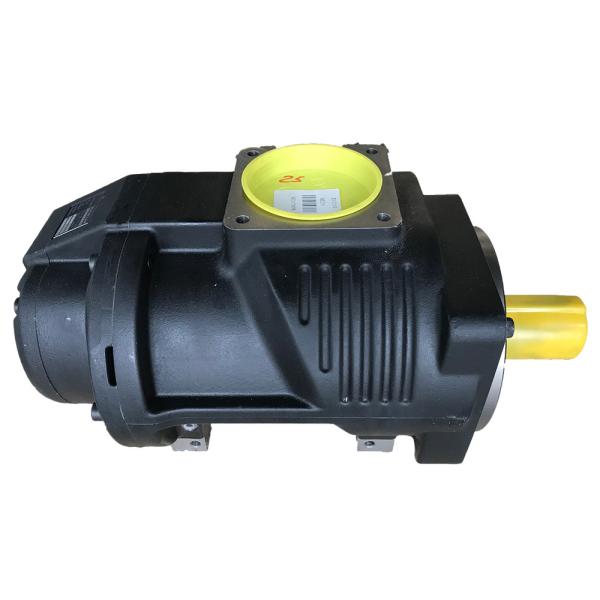

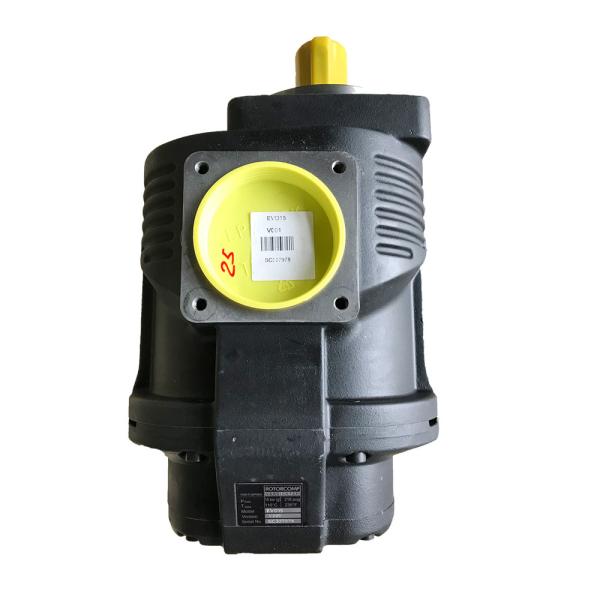

Rotorcomp Airend B201 Air Compressor Air End EVO15 Rotary Screw Air End
Rotorcomp Airend B201 Air Compressor Air End EVO15 Rotary Screw Air End
Rotorcomp Airend B201 Air Compressor Air End EVO15 Rotary Screw Air End
Rotorcomp Airend B201 Air Compressor Air End EVO15 Rotary Screw Air End
Rotorcomp Airend B201 Air Compressor Air End EVO15 Rotary Screw Air End
Rotorcomp Airend B201 Air Compressor Air End EVO15 Rotary Screw Air End
Rotorcomp Airend B201 Air Compressor Air End EVO15 Rotary Screw Air End
Rotorcomp Airend B201 Air Compressor Air End EVO15 Rotary Screw Air End
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Packaging Details :
Wooden box
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1 SET
Delivery Time :
7 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 set/month
Model Number :
EVO15
Product name :
Germany original air compressor screw head EVO3
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Type :
Compressor Head
Capacity :
14.2m3/min 500CFM
Motor power :
45~90kW
Application :
Screw Air Compressor
Model :
EVO15
Package :
Carton Box
MOQ :
1
Keyword :
airend
Brand :
Rotorcomp
Description
Rotorcomp Screw Air Compressor Maintenance Parts ROTORCOMP Airend B201 New Model EVO15
  • Germany Rotorcomp Original
  • Long life warranty
  • Stable running
  • Enough flow rate
  • Made in Germany

RELIABLE AND VERSATILE
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.

ADVANTAGES OF OUR

EVO® TECHNOLOGY
1.New ROLLING PROFILE® - ultimate efficiency with reduced noise
2.Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE® › Wide operating pressure range from 5 to 15 barg
3.High quality manufacturing and assembling - "Made in Germany"
4.Quality assurance - bench test of every air end before leaving our factory
5.Easy application selection with our new ROTORCOMP®SIZING AIR software

ULTIMATE EFFICIENCY AND REDUCED NOISE THROUGH
1. High volumetric output due to Reduced internal leakage
• Thermally optimized oil injection system
• Improved suction port efficiency giving reduced internal losses
2.Low power consumption due to
•Optimized torque characteristics and reduced internal friction
• Improved outlet port with lower pressure losses
3.Reduced noise and low vibration due to
• Smooth rolling of the rotors with new ROLLING

Technical parameter

Model Motor Power(min~max) Max Flow rate Pressure Range Weight
kW HP m3/min cfm bar psi kg
EVO2 2.2~11 3~15 1.6 56 5~15 7~220 16
EVO3 5.5~18.5 7~25 2.9 102 5~15 7~220 21
EVO6 15~37 20~50 6.2 220 5~15 7~220 45
EVO9 22~55 30~75 8.4 297 5~15 7~220 69
EVO15 45~90 60~120 14.2 500 5~15 7~220 126
EVO28 75~160 100~215 26.1 920 5~15 7~220 269
EVO42 132~250 175~335 38.3 1353 5~15 7~220 470
EVO76 160~540 214~725 76 2678 3.5~17 50~250 1250
Our Services

1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DEHAHA air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.

FAQ

Q1:Are you factory or trading company?

A1: We are factory.

Q2:Where is your factory located? How can I visit there?

A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

Q3: Will you provide some spare parts of the machines?

A3: Yes, of course.

Q4: Warranty terms of your machine?

A4: Two years warranty for Air End, one year for spare part.

Q5: How long will you take to arrange production?

A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.

Q6:How does your factory do regarding quality control?

A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

Q7: Can you accept OEM orders?

A7: Yes, with professional design team, OEM orders are highly welcome.
