Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Packaging Details :
Wooden box
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1 SET
Delivery Time :
7 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 set/month
Type :
Compressor Head
Product name :
airend
Application :
Screw Air Compressor
Capacity :
26.1m3/min 920cfm
Package :
Carton Box
Color :
Picture Showed
Keyword :
air end
Service life :
8000 Hours Service Life
Working pressure :
5-16Bar
MOQ :
1 Set
Description

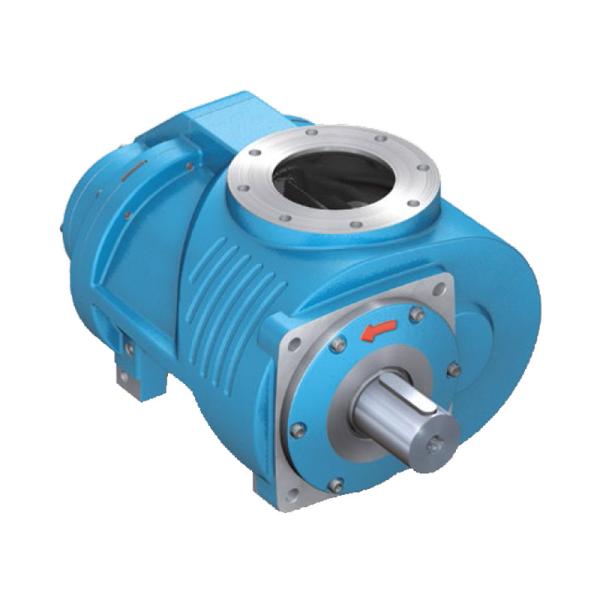

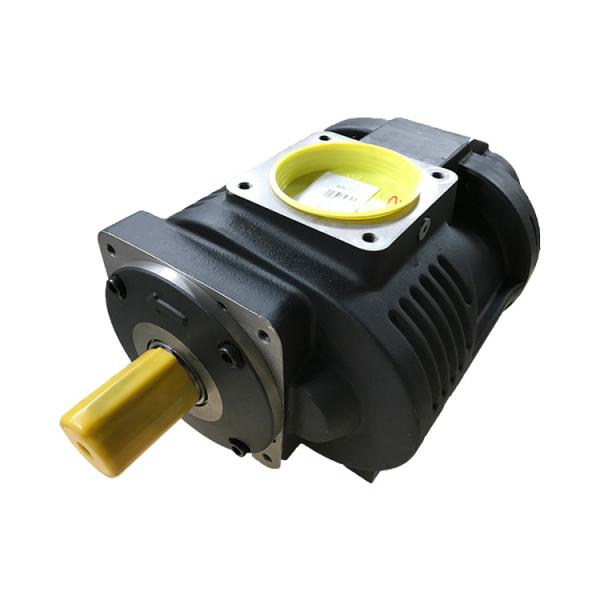

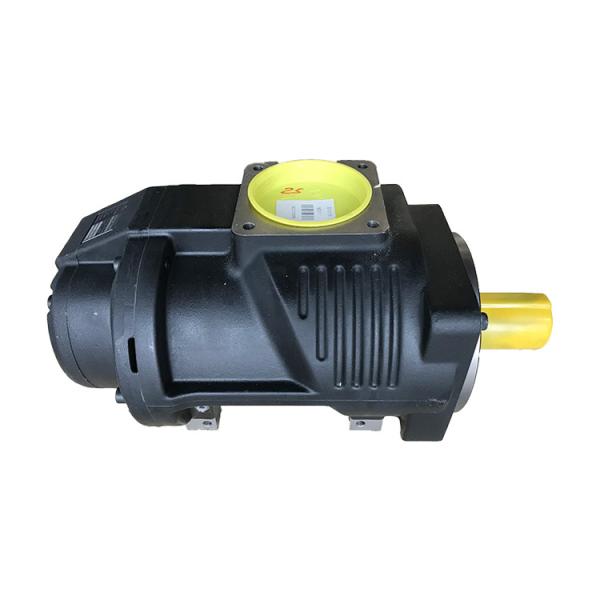

100~215hp Compressor Head Rotorcomp Airend EVO28 for 920cfm Screw Compressor

  • Germany Rotorcomp Original
  • Long life warranty
  • Stable running
  • Enough flow rate
  • Normal for 75~160kW
  • Made in Germany

ADVANTAGES OF OUR EVO® TECHNOLOGY


› New ROLLING PROFILE® – ultimate efficiency with reduced noise
› Long life cycle due to increased bearing dimensions and
wear-free ROLLING PROFILE® › Wide operating pressure range from 5 to 15 barg
› High quality manufacturing and assembling – “Made in Germany”
› Quality assurance – bench test of every air end before leaving our factory
› Easy application selection with our new ROTORCOMP®SIZING AIR software
› Highest flexibility for your package design
• Suitable for all types of drive motors
• Drive options: Belt drive, direct drive, internal gear drive
• Base and face-flange mounting

Technical parameter

Model Motor Power(min~max) Max Flow rate Pressure Range Dimensions Weight
kW HP m3/min cfm bar psi Length Width Height kg
EVO2 2.2~11 3~15 1.6 56 5~15 7~220 251 160 136 16
EVO3 5.5~18.5 7~25 2.9 102 5~15 7~220 285 184 148 21
EVO6 15~37 20~50 6.2 220 5~15 7~220 372 236 191 45
EVO9 22~55 30~75 8.4 297 5~15 7~220 419 276 218 69
EVO15 45~90 60~120 14.2 500 5~15 7~220 540 331 264 126
EVO28 75~160 100~215 26.1 920 5~15 7~220 669 445 354 269
EVO42 132~250 175~335 38.3 1353 5~15 7~220 / / / 470
EVO76 160~540 214~725 76 2678 3.5~17 50~250 / / / 1250
