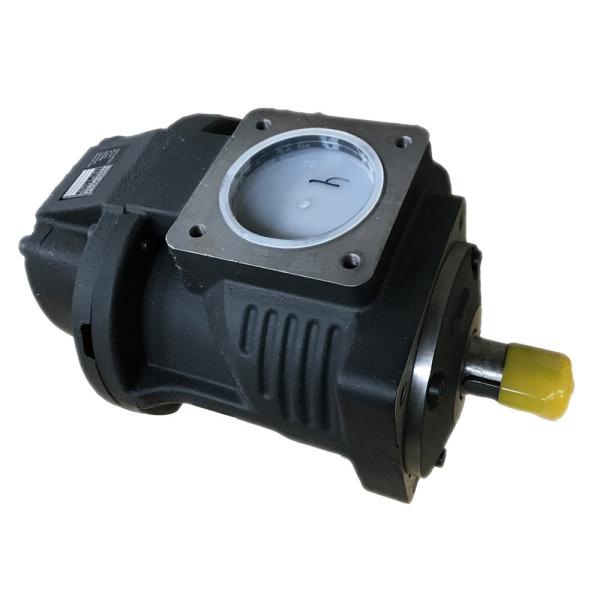

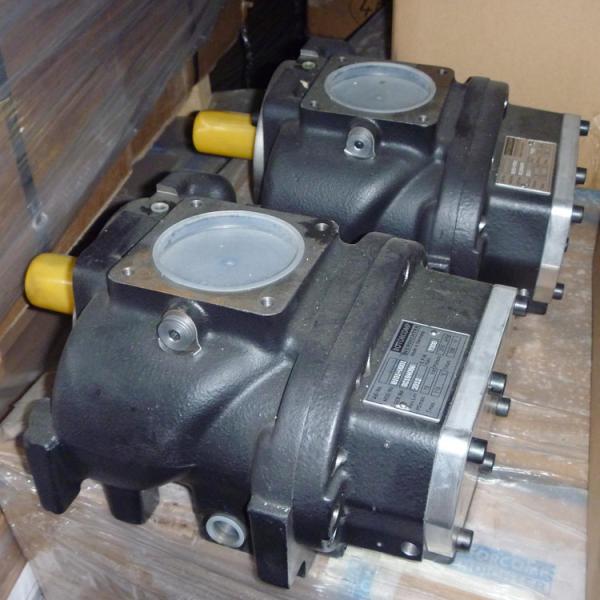

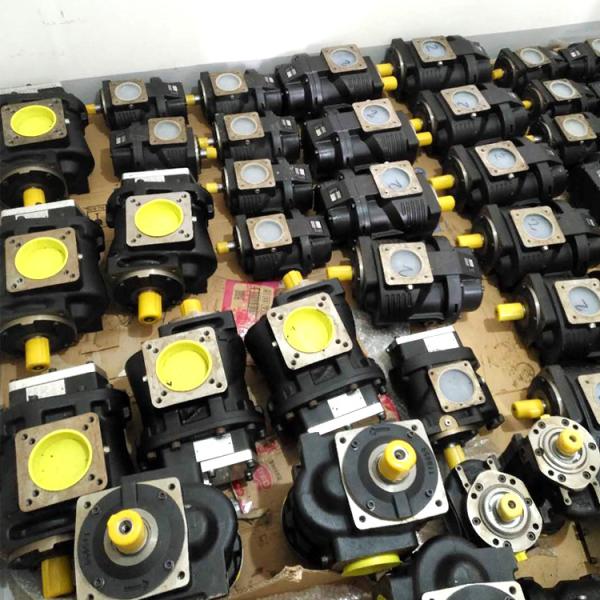

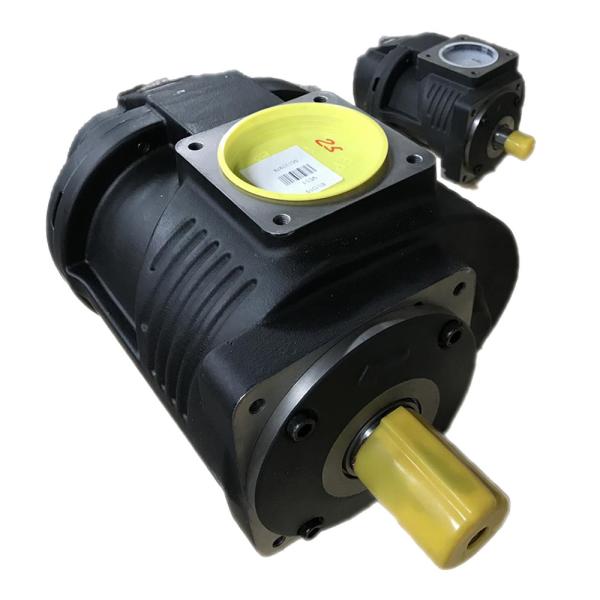

EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Model Number :
EVO6
Packaging Details :
Wooden box
Supply Ability :
600 set/month
MOQ :
1 SET
Price :
Negotiate
Certification :
CE/ISO9001
Delivery Time :
7 days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product name :
air compressor screw airend
Applicable Industries :
Air compressor
Condition :
New
Type :
Screw
Configuration :
Stationary
Delivery :
2.55m3/min
Power Source :
AC POWER
Lubrication Style :
Lubricated
Mute :
Yes
Voltage :
Customized
Weight :
55kg
Working Pressure :
7~13bar
Model :
EVO6
Rotating speed :
3500r/min
MOQ :
2PCS
OEM :
Welcome
Certificate :
ISO9001/CE/TUV
Packing :
Carton Bags
Power :
15kW
Description
Product Description

Germany Rotorcomp Compressor Pump EVO6 Replace B101 Germany Original Air Compressor Screw Head EVO3

  • Germany Rotorcomp Original
  • Long life warranty
  • Stable running
  • Enough flow rate
  • Normal for 18.5-30KW
  • Made in Germany

Germany original air compressor screw head EVO3

RELIABLE AND VERSATILE
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.

ADVANTAGES OF OUR

EVO® TECHNOLOGY
1.New ROLLING PROFILE® - ultimate efficiency with reduced noise
2.Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE® › Wide operating pressure range from 5 to 15 barg
3.High quality manufacturing and assembling - "Made in Germany"
4.Quality assurance - bench test of every air end before leaving our factory
5.Easy application selection with our new ROTORCOMP®SIZING AIR software
5.Highest flexibility for your package design
• Suitable for all types of drive motors
• Drive options: Belt drive, direct drive, internal gear drive
• Base and face-flange mounting

ULTIMATE EFFICIENCY AND REDUCED NOISE THROUGH
1. High volumetric output due to Reduced internal leakage
• Thermally optimized oil injection system
• Improved suction port efficiency giving reduced internal losses
2.Low power consumption due to
•Optimized torque characteristics and reduced internal friction
• Improved outlet port with lower pressure losses
3.Reduced noise and low vibration due to
• Smooth rolling of the rotors with new ROLLING
PROFILE® •Optimized outlet port

Product Parameters

Model Motor Power(min~max) Max Flow rate Pressure Range Dimensions Weight
kW HP m3/min cfm bar psi Length Width Height kg
EVO2 2.2~11 3~15 1.6 56 5~15 7~220 251 160 136 16
EVO3 5.5~18.5 7~25 2.9 102 5~15 7~220 285 184 148 21
EVO6 15~37 20~50 6.2 220 5~15 7~220 372 236 191 45
EVO9 22~55 30~75 8.4 297 5~15 7~220 419 276 218 69
EVO15 45~90 60~120 14.2 500 5~15 7~220 540 331 264 126
EVO28 75~160 100~215 26.1 920 5~15 7~220 669 445 354 269
EVO42 132~250 175~335 38.3 1353 5~15 7~220 / / / 470
EVO76 160~540 214~725 76 2678 3.5~17 50~250 / / / 1250

EVO3 EVO6 Rotary Screw Compressor Head Replace B101 Rotorcomp Air End

FAQ

Q1:Are you factory or trading company?

A1: We are factory.

Q2:Where is your factory located? How can I visit there?

A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it's about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

Q3: Will you provide some spare parts of the machines?

A3: Yes, of course.

Q4: Warranty terms of your machine?

A4: Two years warranty for Air End, one year for spare part.

Q5: How long will you take to arrange production?

A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.

Q6:How does your factory do regarding quality control?

A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

Q7: Can you accept OEM orders?

A7: Yes, with professional design team, OEM orders are highly welcome.
