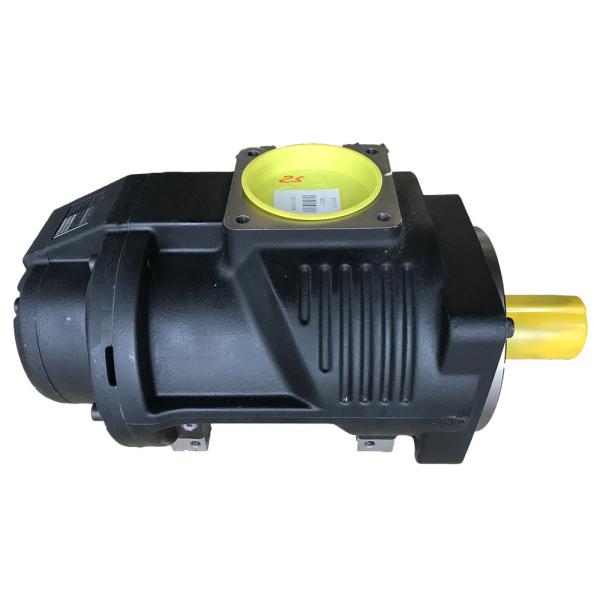

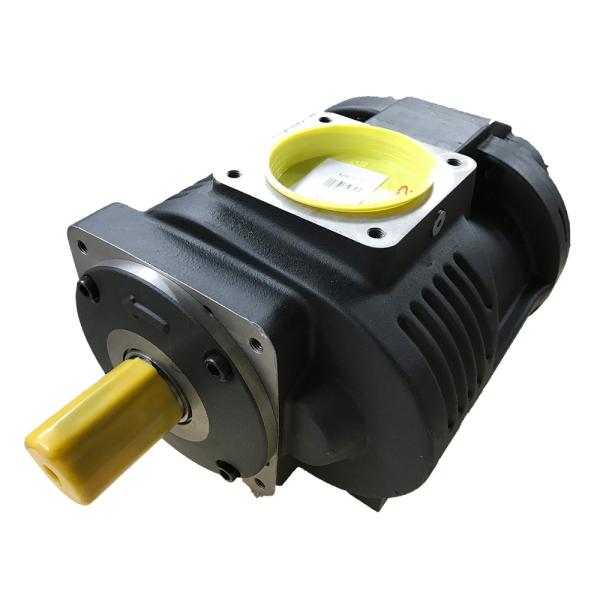

Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
Specifications
Brand Name :
DHH
Model Number :
EVO9
Certification :
CE/ISO9001
Place of Origin :
Jiangsu
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
600 set/month
Delivery Time :
7 days
Packaging Details :
Wooden box
Keyword :
air end
Type :
Compressor Head
Model :
EVO9
Package :
Carton Box
Application :
Screw Air Compressor
Color :
Picture Showed
Service life :
8000 Hours Service Life
Working pressure :
7-13 Bar
After Warranty Service :
Online support
Description

Rotorcomp air end EVO9 Screw Air Compressor Spare Parts Air Compressor Air End

RELIABLE AND VERSATILE
Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, at the highest quality standards.

ADVANTAGES OF OUR

EVO® TECHNOLOGY
1.New ROLLING PROFILE® - ultimate efficiency with reduced noise
2.Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE® › Wide operating pressure range from 5 to 15 barg
3.High quality manufacturing and assembling - "Made in Germany"
4.Quality assurance - bench test of every air end before leaving our factory
5.Easy application selection with our new ROTORCOMP®SIZING AIR software
5.Highest flexibility for your package design
• Suitable for all types of drive motors
• Drive options: Belt drive, direct drive, internal gear drive
• Base and face-flange mounting

ULTIMATE EFFICIENCY AND REDUCED NOISE THROUGH


1. High volumetric output due to Reduced internal leakage
• Thermally optimized oil injection system
• Improved suction port efficiency giving reduced internal losses
2. Low power consumption due to
• Optimized torque characteristics and reduced internal friction
• Improved outlet port with lower pressure losses
3.Reduced noise and low vibration due to
• Smooth rolling of the rotors with new ROLLING PROFILE®

• Optimized outlet port

Product parameters

Model Motor Power(min~max) Max Flow rate Pressure Range Dimensions Weight
kW HP m3/min cfm bar psi Length Width Height kg
EVO2 2.2~11 3~15 1.6 56 5~15 7~220 251 160 136 16
EVO3 5.5~18.5 7~25 2.9 102 5~15 7~220 285 184 148 21
EVO6 15~37 20~50 6.2 220 5~15 7~220 372 236 191 45
EVO9 22~55 30~75 8.4 297 5~15 7~220 419 276 218 69
EVO15 45~90 60~120 14.2 500 5~15 7~220 540 331 264 126
EVO28 75~160 100~215 26.1 920 5~15 7~220 669 445 354 269
EVO42 132~250 175~335 38.3 1353 5~15 7~220 / / / 470
EVO76 160~540 214~725 76 2678 3.5~17 50~250 / / / 1250
Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13barOil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar

Oil Injected Screw Air Compressor Spare Parts EVO9 Air End 7 - 13bar
