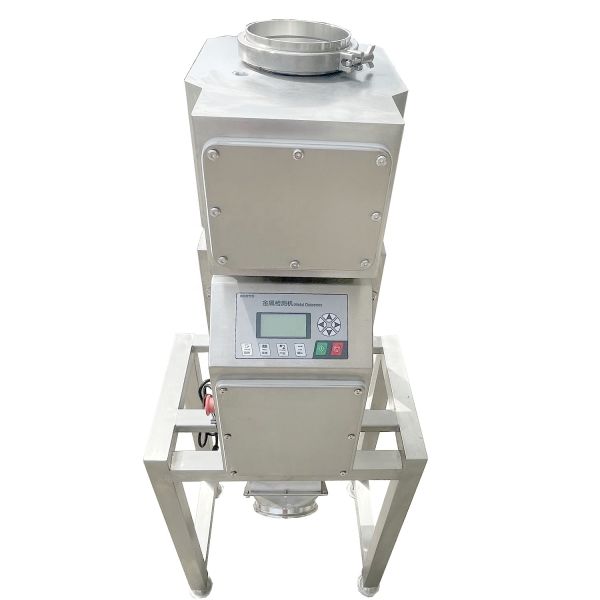

Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Pneumatic Vacuum Conveying Pipeline Plastic Industry Metal Separator JZD-P16
Specifications
Display :
LCD Digital Display
waterproof level :
IP66
Record of product quantities :
100kinds of different product parameter
user :
powder,granular products
Product name :
Food Metal Detector
the diameter of transportation hopper :
50~150mm(customized)
control panel :
LCD display
operating frequency :
Other
the way of exlusion :
sound and light alarm,air piracy exclusion automatically
Model Number :
JZD-P16
MOQ :
1
Price :
$3,500
Usage :
Security Inspection
Place of Origin :
Guangdong, China
Communication Interface :
Ethernet
raw material :
SUS304/316
Search Coil Diameter :
5cm, 12 cm, 8 cm, 10 cm, 15 cm, 18 cm, 20 cm, 25 cm, 30cm, 40 cm
type :
Pipeline metal detector
material :
stainless 304 and 316
IP Rating :
Ip67
sensitivity :
other
Description
Plastic Industry Pneumatic Vacuum Conveying Pipeline Metal Separator Machine JZD-P16
Product Overview

This pneumatic vacuum conveying pipeline metal separator is designed for detecting and separating all types of metals in various industrial applications.

Applications
  • Food industry
  • Chemical industry
  • Pharmaceutical industry
  • Plastic industry
  • Packaging industry
Function

Detects and separates all metals including copper, iron, zinc, stainless steel, and other metallic contaminants.

Key Features
  • Detection method: Free-Falling body/Gravity
  • Suitable material: grain or powder
  • Separate ways: automatic separation
  • Advantage: high precision and simple installation
Technical Parameters
  • Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
  • Input current: 80/160 mA
  • Ambient temperature: -10/60 degrees
  • Case Material: Stainless Steel
  • Contact parts with material: PP plastic and PTFE
  • Compressed air: 4-8 kg, connected with 6-8 mm hose
  • Gas consumption: 0.6 liters each separate action
  • Level of protection: IP 54
  • Separation time: 0.2 - 2.5 seconds (No level can be adjusted)
  • Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
  • Material characteristics: dry, no long-fiber, non-conductive, particles less than 8 mm
Specifications
Type (Internal Detection Tube Dia) Capacity (l/h) Accuracy
80 type 5000 0.7 iron, stainless steel, 1.5, copper 1.2 mm
100 type 10000 0.8 iron, stainless steel, 2.0, copper 1.5 mm
150 type 20000 1.2 iron, stainless steel, 2.3, copper 2.0 mm
200 type 40000 1.5 iron, stainless steel, 2.5, copper 2.0 mm
250 Type 65,000 2.0 iron, stainless steel, 3.0, copper 2.5 mm
