Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Wheat Flour Vegetable Oil White Vinegar Salt Liquid Metal Detector JZD-600
Specifications
sensitivity :
customized
conveyor load :
25kg(customized)
user :
all kinds of industry
Price :
SG$5,195.42
raw material :
stainless steel 304
conveyor speed :
25m/minutes(variable speed,adjustable)
IP Rating :
Ip67
material :
Stainless Steel
Alarm :
audible and visual alarm ,automatic stop
Search Coil Diameter :
customized
operating frequency :
customized
Place of Origin :
Guangdong, China
Application :
Food Metal Detector .needle Metal Detector
Model Number :
JZD-600
waterproof :
IP66
Brand Name :
JUZHUO
Usage :
food etc Security Inspection
warranty :
3 Years
Display :
7 Inch Colour Touch Screen
type :
metal detector
certification approval :
ISO9001,HACCP,CE
customized support :
OEM, ODM, OBM
MOQ :
10
Description
Metal Detector for Wheat Flour, Vegetable Oil, White Vinegar, Chino, Salt JZD-600
Professional metal detection equipment designed for food processing applications including wheat flour, vegetable oil, white vinegar, chino, and salt.
Applications

This equipment is used for detecting metal foreign bodies in food, medicine, food additives, spices, health products, and other related fields.

Key Features
  • Constructed entirely from SUS304 stainless steel for corrosion resistance and long lifespan
  • Multi-frequency detection with self-analysis function and high sensitivity

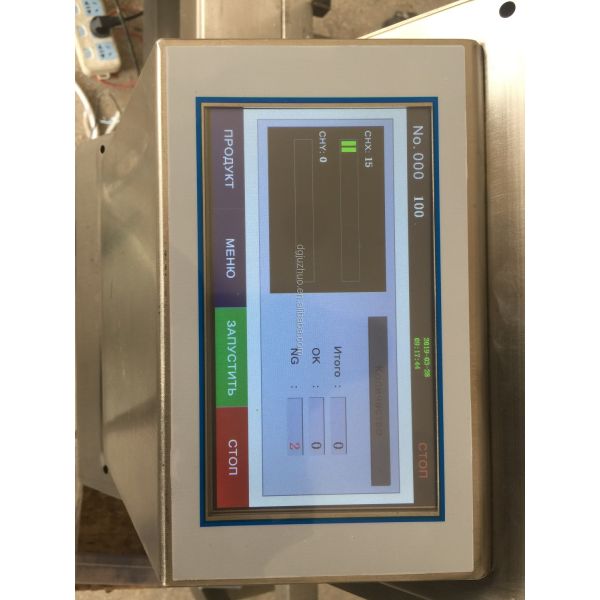

  • Colorful LCD touch screen for convenient operation
  • Stores approximately 100 product data sets, ideal for production lines with variable detection products
  • Dual channel detection: one channel for FE and the other for non-ferrous metals
  • IP66 waterproof protection level, suitable for high-pressure water washing
  • Stable long-term operation with special design for harsh production environments with strong vibration and high interference
  • No missed alarms even when tapping the probe
  • Simplified detachable framework design for easy cleaning by operators
Technical Specifications
Parameter Specification
Model JZD-600
Inspection Window Width 400mm (customized) | 500mm (customization)
Inspection Height 120mm | 150mm | 200mm | 150mm | 200mm | 250mm | 300mm
Detection Sensitivity - Fe (Φmm) ≥ 0.8 | ≥ 1.0 | ≥ 1.2 | ≥ 1.0 | ≥ 1.2 | ≥ 1.5 | ≥ 2.0
Detection Sensitivity - Non-Fe/SUS (Φmm) ≥ 1.5 | ≥ 2.0 | ≥ 2.5 | ≥ 2.0 | ≥ 2.5 | ≥ 3.0 | ≥ 3.5
Alarm System Alarm to stop transfer or reject setting
Raw Material SUS304
Standard Machine Size 1700mm (L) × 910mm (W) × 1000mm (H)
Net Weight 330kg (based on standard size)
Power Supply 110V/220V/380V/440V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customized)
Conveyor Height 650mm ±50mm (customized)
Note: The above sensitivity is measured by the machine without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Auto-rejection equipment can be installed according to customer requirements.
