Specifications
conveyor load :
25kg(customized)
Product name :
compression metal detector
sensitivity :
customized
fail-safe alarm system :
alarm to warn/remind operator upon working abnormality
user :
All
MOQ :
1
waterproof :
IP66
type :
Compression Metal Detector
material :
Stainless Steel
Model Number :
JZD-366
certification approval :
ISO9001,HACCP,CE
Search Coil Diameter :
customized
operating frequency :
customized
Place of Origin :
Guangdong, China
Price :
$4,980
conveyor speed :
22m/minutes(variable speed,adjustable)
alarm :
audible and visual alarm ,automatic indentification and stop
raw material :
SUS304 stainless steel
control panel :
LCD display screen
Description
Food Contamination Detection Devices Automatic Food Industrial Metal Detector JZD-366
Product Overview

The Metal Detector Compression series features intelligent digital metal detectors that utilize advanced electronics and cutting-edge technologies including electromagnetic detection, DDS (Direct Digital Synthesizer), and DSP (Digital Signal Processor). Compared to traditional analog detectors, these systems offer enhanced functionality with superior stability and reliability.

Applications

This metal detector is primarily designed for detecting metal impurities in various products including:

  • Pillows, bedding, and sheets
  • Tobacco products
  • Toys and footwear
  • Cosmetics and personal care products
  • Plastic, leather, and rubber goods
  • Building materials

The system is engineered to perform reliably in challenging work environments including high/low temperatures, humidity, dry conditions, dust, and dew.

Main Features
Fail-Safe Alarm System
  • Detection head fault monitoring
  • Reject failure detection
  • Reject mechanism activation failure
  • Reject product collection bin full alert
  • Air pressure failure detection
  • Motor fault alarm

The system automatically alerts operators when any of these situations occur.

Advanced Memory System
  • Stores up to 100 different product detection parameters
  • Simplifies product changeovers for frequent production variations
  • Tracks total quantity of passed products
  • Records numbers of qualified and non-qualified products
  • Logs data with corresponding dates
Additional Features
  • Automatic ink jet marking for non-qualified products
  • LCD display screen control panel for easy operation
  • Dual channel detection technology with rectangular aperture
  • ADLINE microprocessor controller
  • Automatic identification learning functions
  • Open and unloading conveyor structure for easy daily cleaning
Specification Parameters
Parameter Specifications
Model OMD-D-H
Inspection Window Width 400mm (customizable)
Inspection Height Options 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Detection Sensitivity - Fe (Φmm) ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Alarm System Audible and visual alarms with automatic stop
Raw Material SUS304
Machine Dimensions 160(L)×90(W)×100(H)cm (standard size)
Net Weight 330kg (standard size)
Power Supply 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable)
Conveyor Height 650mm±50mm (standard, customizable)
Note: Sensitivity specifications are based on testing without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.

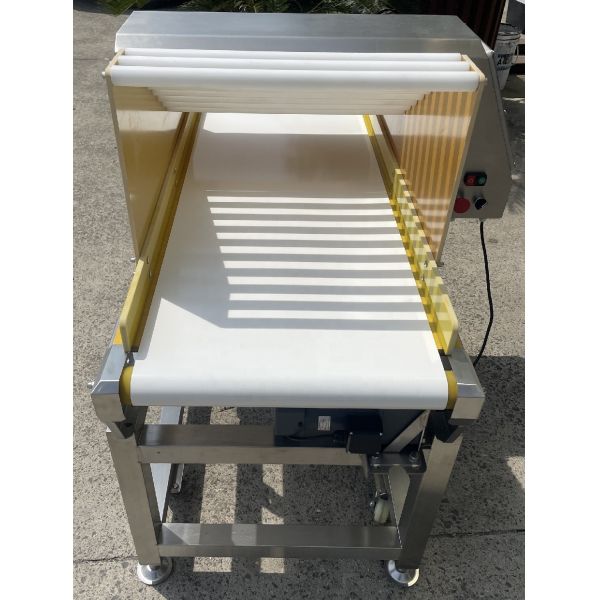

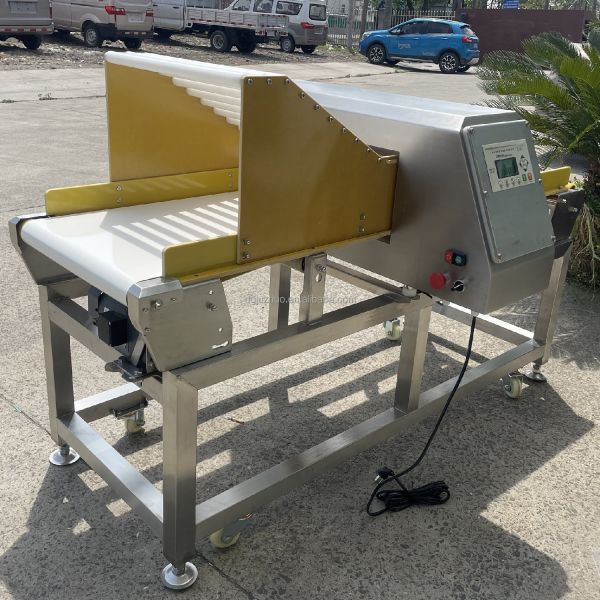

Product Images
Automatic Industrial Metal Detector Food Contamination Detection Equipment JZD-366 Automatic Industrial Metal Detector Food Contamination Detection Equipment JZD-366 Automatic Industrial Metal Detector Food Contamination Detection Equipment JZD-366 Automatic Industrial Metal Detector Food Contamination Detection Equipment JZD-366 Automatic Industrial Metal Detector Food Contamination Detection Equipment JZD-366 Automatic Industrial Metal Detector Food Contamination Detection Equipment JZD-366
