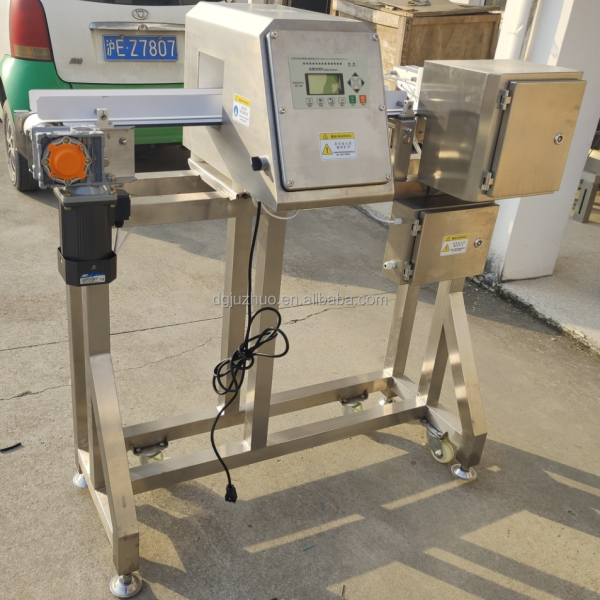

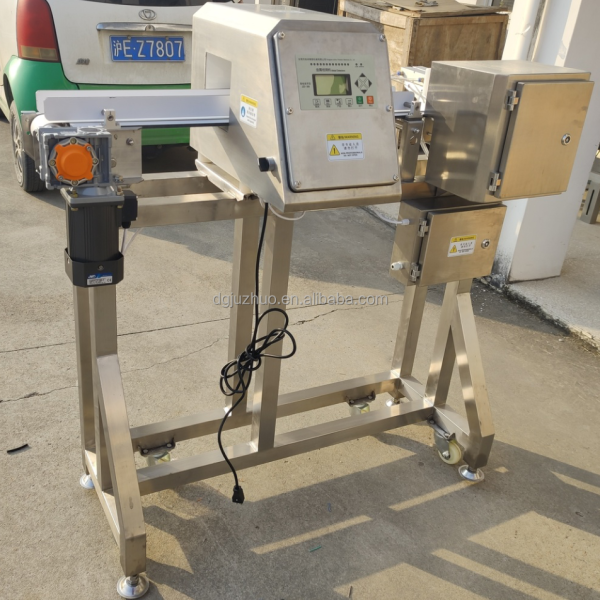

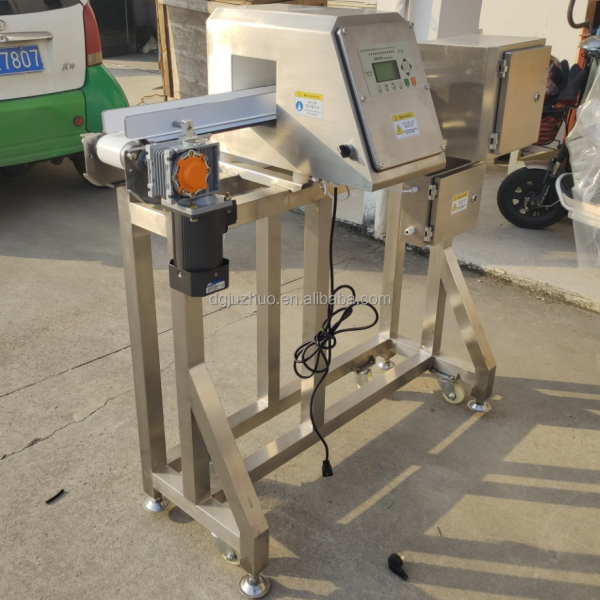

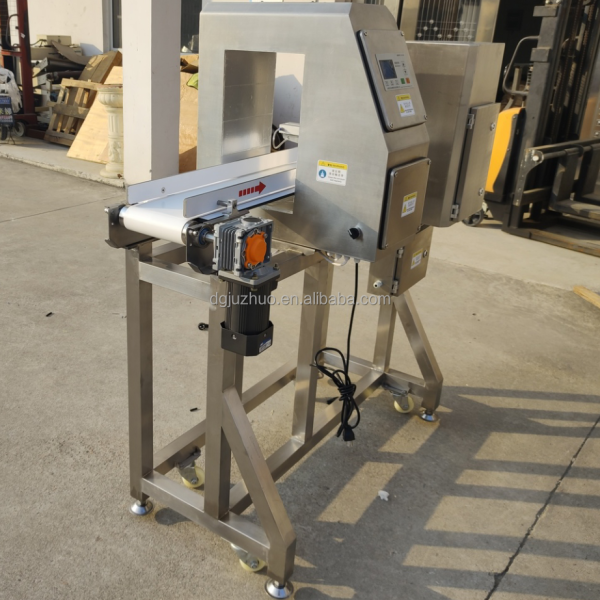

Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Specifications
warranty :
1year
Brand Name :
JUZHUO
waterproof :
IP66
raw material :
stainless steel 304
customized support :
OEM, ODM, OBM
MOQ :
1
certification approval :
CE,ISO9001,HACCP
control Panel :
LCD display
belt color :
customized
conveyor speed :
22m/minutes(adjustable)
conveyor load :
25kg(customized)
Place of Origin :
Guangdong, China
Model Number :
JZD-366
type :
New
alarm :
audible and visual alarm, automatic stop
Description
High Quality Metal Detector for Clothes Industry JZD-366 Manufacturer
Metal Detector for Clothes Industry JZD-366
Clothes Apparel Industry Metal Detector Inspection Equipment System JZD-366
Introduction

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study, and full digital regulating functions. This ensures the metal detector's detecting capacity is more stable and dependable, significantly improving detection effectiveness.

Application

Model JZD-366 digital metal detector is primarily used for checking metal impurities mixed or dropped in bakery products, pizza, hamburger, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It can operate effectively in high temperature, low temperature, damp, dry, dusty, dew, and other challenging work environments.

Main Features
  • LCD display screen control panel with English and Chinese language options
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 different product parameters for detection with simple operation for frequent product changes
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangle aperture (indivisible)
  • Control system - ADLINE microprocessor controller
  • Conforms to IFS standard with HACCP, CE & ISO 9001 certification
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference and shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specifications
Model JZD-366
The Width of inspection window (mm) 400 (400 customization available)
The Height of inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm Audible and visual alarm, automatic stop
Raw material SUS304
Normal machine size (mm) 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size)
Net Gross 330kg (based on normal size)
Electrical source (Power) 110V/220V/380V 50Hz/60Hz (Power) 90W
Conveyor speed 25-30m/min (can be designed according to customer's requirements)
Conveyor height 650mm±50mm (normal) can be manufactured according to customer's needs
Note: The above sensitivity is judged by the machine without bearing any parts. The actual sensitivity has relation with the nature and temperature of the products, etc. Auto-rejection equipment can be installed according to customer requirements.
