High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
Specifications
material :
stainless 304 and 316
Model Number :
JZD-P16
sensitivity :
other
Record of product quantities :
100kinds of different product parameter
operating frequency :
Other
Product name :
Food Metal Detector
the diameter of transportation hopper :
50~150mm(customized)
control panel :
LCD display
waterproof level :
IP66
type :
Pipeline metal detector
Place of Origin :
Guangdong, China
IP Rating :
Ip67
Usage :
Security Inspection
the way of exlusion :
sound and light alarm,air piracy exclusion automatically
user :
powder,granular products
raw material :
SUS304/316
Price :
€3,035.16
MOQ :
1
Display :
LCD Digital Display
Search Coil Diameter :
5cm, 12 cm, 8 cm, 10 cm, 15 cm, 18 cm, 25 cm, 20 cm, 30cm, 40 cm
Description
High Accuracy Gravity Free Fall Metal Detector JZD-P16
2025 Popular Gravity Free Fall Metal Detector designed for precision metal detection and separation in various industrial applications.
Applications
  • Food industry
  • Chemical industry
  • Pharmaceutical industry
  • Plastic industry
  • Packaging industry
Function
Detects and separates all types of metals including copper, iron, zinc, stainless steel, and other metallic contaminants.
Key Features
  • Detection method: Free-Falling body/Gravity
  • Suitable material: Grain or powder
  • Separation method: Automatic separation
  • Advantages: High precision and simple installation
Technical Parameters
Operating voltage 220 VAC (+/-10%, 50/60 Hz)
Input current 80/160 mA
Ambient temperature -10/60 degrees
Case Material Stainless Steel
Contact parts with material PP plastic and PTFE
Compressed air 4-8 kg, connected with 6-8 mm hose
Gas consumption 0.6 liters each separate action
Level of protection IP 54
Separation time 0.2 - 2.5 seconds (No level adjustment)
Detection accuracy 0-10 stepless adjustable (recommended scale 9)
Detection method Plastic granules with falling body
Material characteristics Dry, no long-fiber, non-conductive, particles less than 8 mm
Specifications
Model Type Internal Detection Tube Diameter Capacity (l/h) Detection Accuracy
80 Type 80 mm 5,000 Iron/Stainless Steel: 0.7 mm, Copper: 1.2 mm
100 Type 100 mm 10,000 Iron/Stainless Steel: 0.8 mm, Copper: 1.5 mm
150 Type 150 mm 20,000 Iron/Stainless Steel: 1.2 mm, Copper: 2.0 mm
200 Type 200 mm 40,000 Iron/Stainless Steel: 1.5 mm, Copper: 2.0 mm
250 Type 250 mm 65,000 Iron/Stainless Steel: 2.0 mm, Copper: 2.5 mm

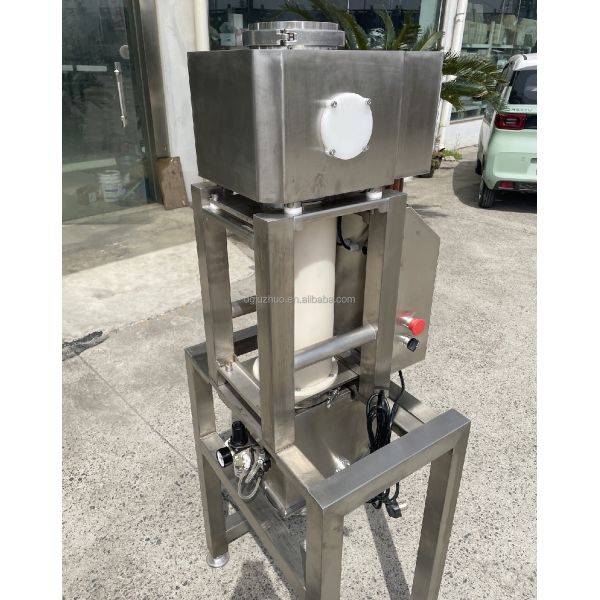

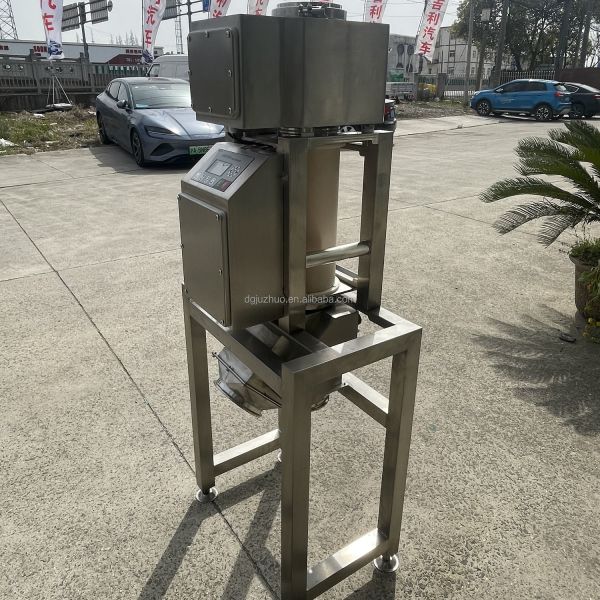

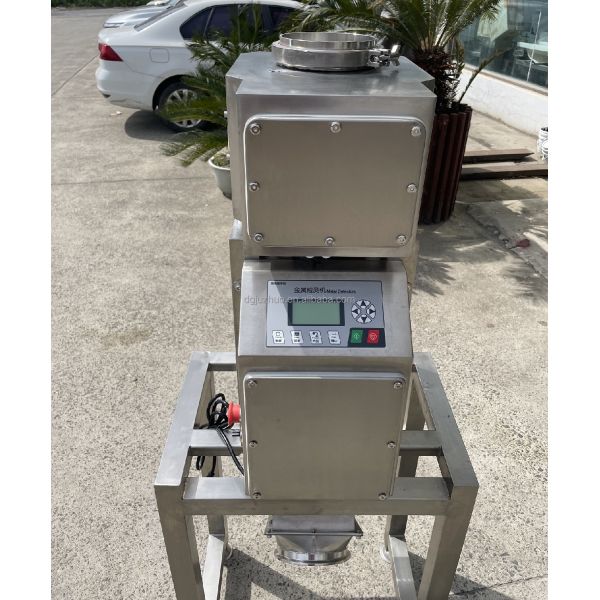

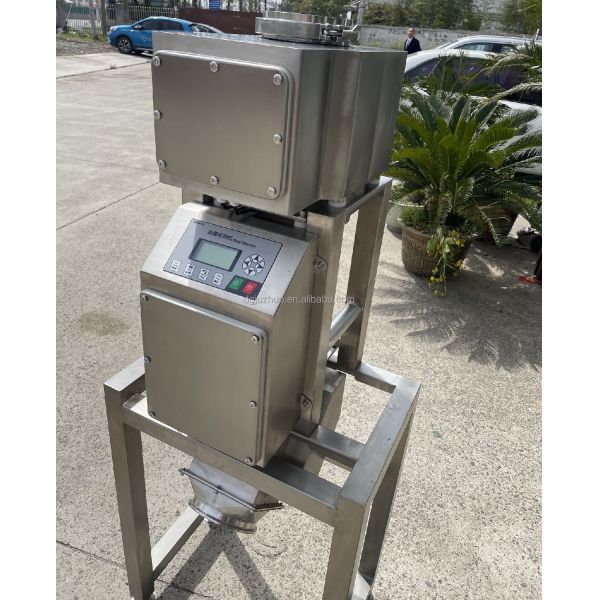

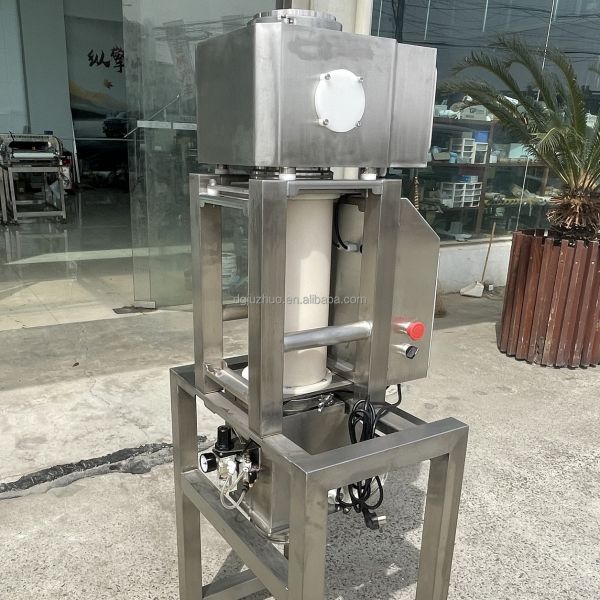

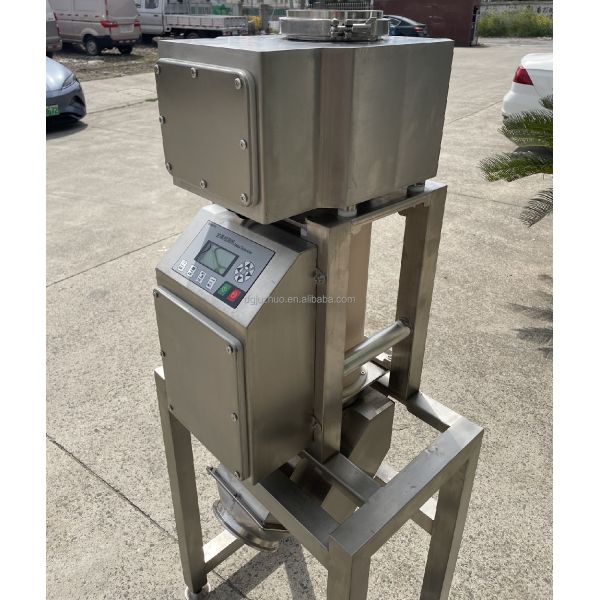

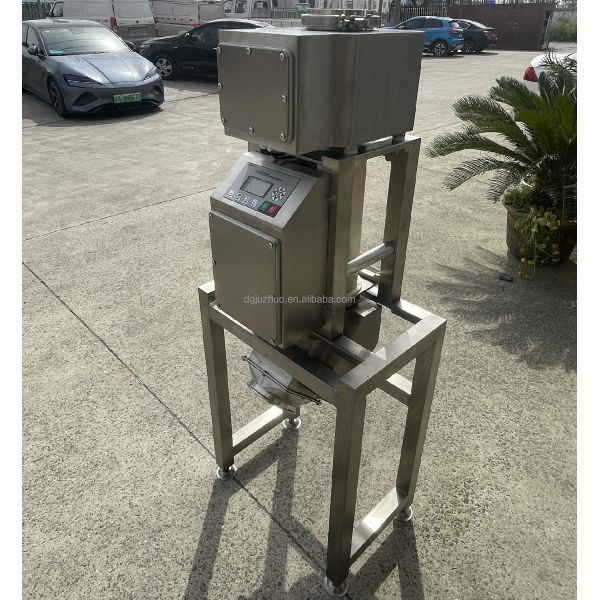

Product Images
High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16 High Accuracy Gravity Free Fall Industrial Metal Detection System JZD-P16
