Specifications
waterproof level :
IP54
raw material :
SUS304
MOQ :
1
record quantities :
100kinds of different products
Place of Origin :
Guangdong, China
the diameter of transportation hopper :
30~250mm(customized)
type :
New
the way of exlusion :
automatic separation
customized support :
OEM, ODM, OBM
Certification :
CE,ISO9001
Control panel :
LCD display
warranty :
1year
Brand Name :
JUZHUO
Model Number :
JZD-P16
Description

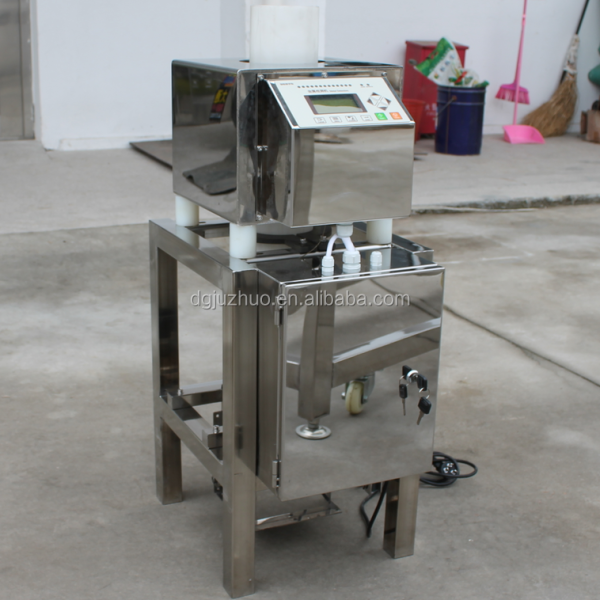

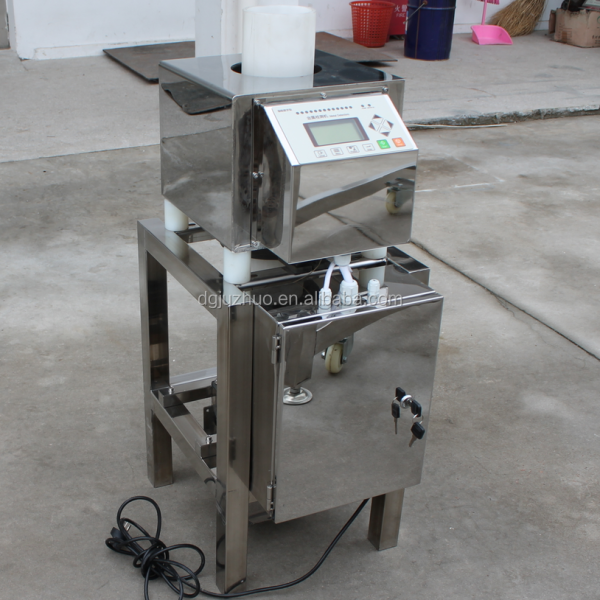

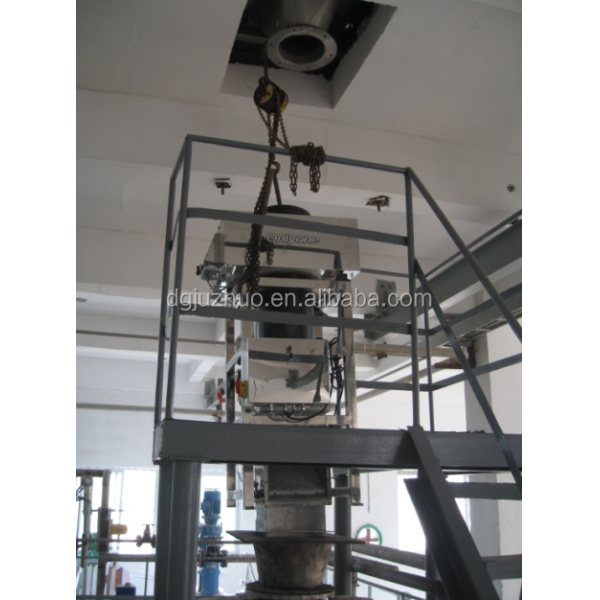

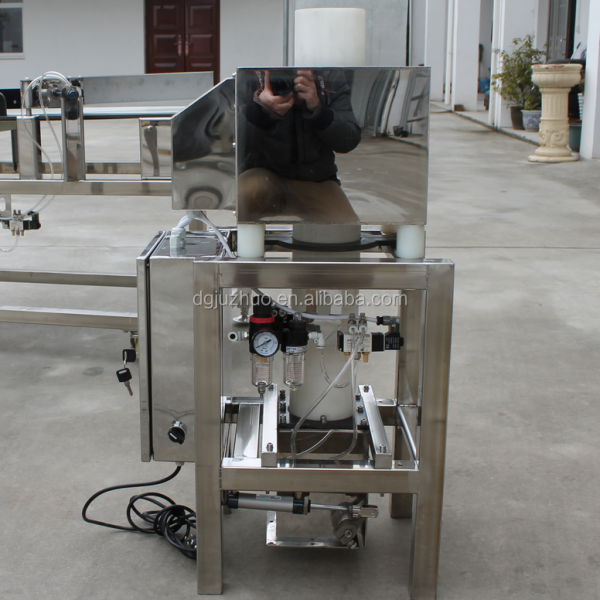

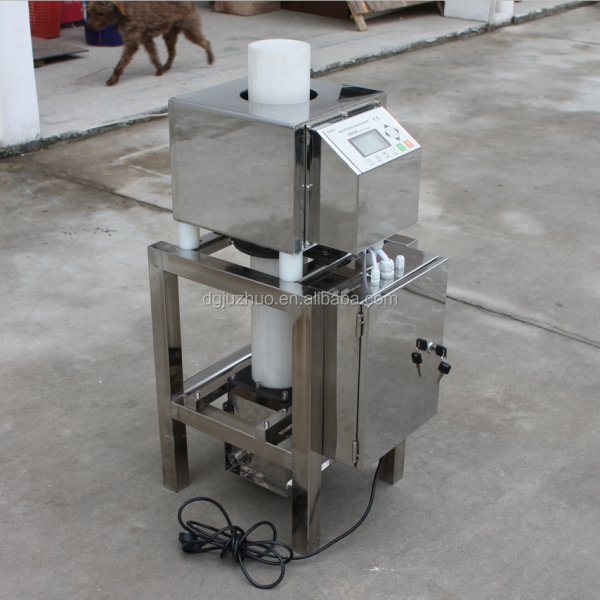

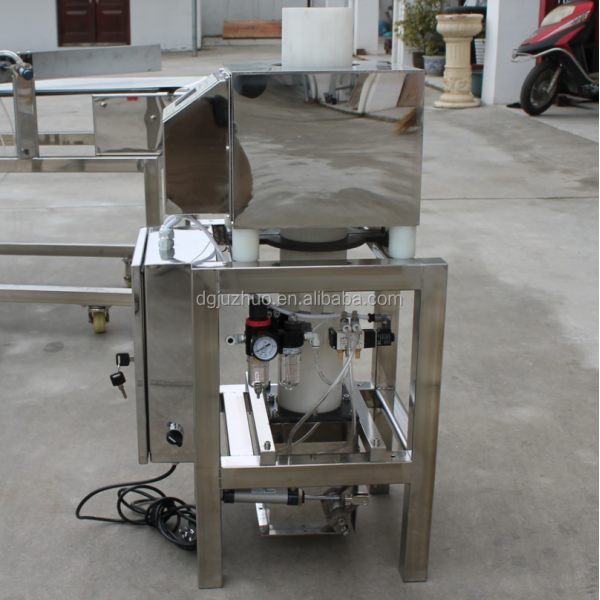

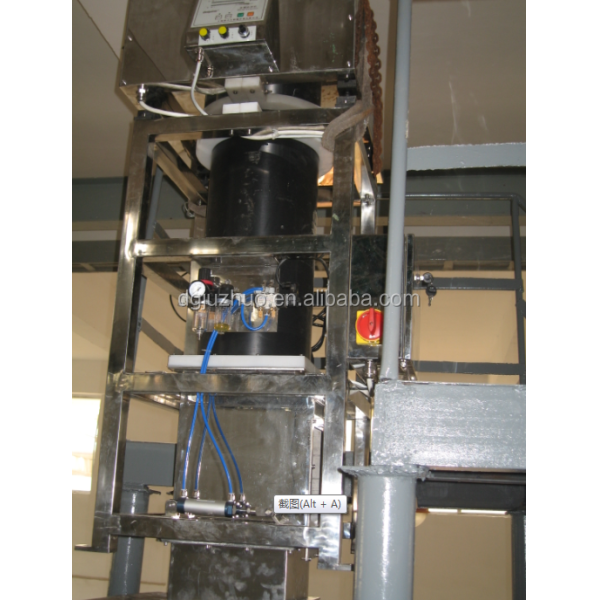

Online High Sensitivity Gravity-fall Type Metal Detector
Product Overview

High Sensitivity Gravity-fall Type Metal Detector JZD-P16 - Advanced metal detection solution for various industrial applications.

Applications
  • Food industry
  • Chemical industry
  • Pharmaceutical industry
  • Plastic industry
  • Packaging industry
Detection Capabilities

Detects and separates all types of metals including:

  • Copper
  • Iron
  • Zinc
  • Stainless steel
  • All other metals
Key Features
  • Detection method: Free-Falling body/Gravity
  • Suitable material: grain or powder
  • Separate ways: automatic separation
  • Advantage: high precision and simple installation
Technical Parameters
  • Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
  • Input current: 80/160 mA
  • Ambient temperature: -10/60 degrees
  • Case Material: Stainless Steel
  • Contact parts with material: PP plastic and PTFE

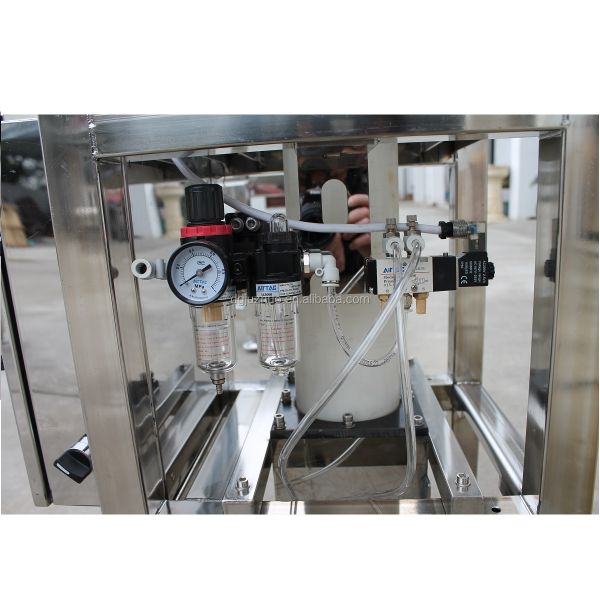

  • Compressed air: 4-8 kg, connected with 6-8 mm hose
  • Gas consumption: 0.6 liters each separate action
  • Level of protection: IP 54
  • Separation time: 0.2 - 2.5 seconds (No level can be adjusted)
  • Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
Usage & Material Requirements
  • Detection method: Plastic granules with falling body
  • Material characteristics: Dry, no long-fiber, non-conductive
  • Particle size: Less than 8 mm
Specifications
Model Type Internal Detection Tube Diameter Capacity (l/h) Detection Accuracy
80 Type 80 mm 5000 0.7 mm iron, stainless steel; 1.2 mm copper
100 Type 100 mm 10000 0.8 mm iron, stainless steel; 1.5 mm copper
150 Type 150 mm 20000 1.2 mm iron, stainless steel; 2.0 mm copper
200 Type 200 mm 40000 1.5 mm iron, stainless steel; 2.0 mm copper
250 Type 250 mm 65000 2.0 mm iron, stainless steel; 2.5 mm copper
Product Images
Online Industrial Metal Detector High Sensitivity Gravity Fall Type System Online Industrial Metal Detector High Sensitivity Gravity Fall Type System Online Industrial Metal Detector High Sensitivity Gravity Fall Type System Online Industrial Metal Detector High Sensitivity Gravity Fall Type System Online Industrial Metal Detector High Sensitivity Gravity Fall Type System Online Industrial Metal Detector High Sensitivity Gravity Fall Type System Online Industrial Metal Detector High Sensitivity Gravity Fall Type System Online Industrial Metal Detector High Sensitivity Gravity Fall Type System
