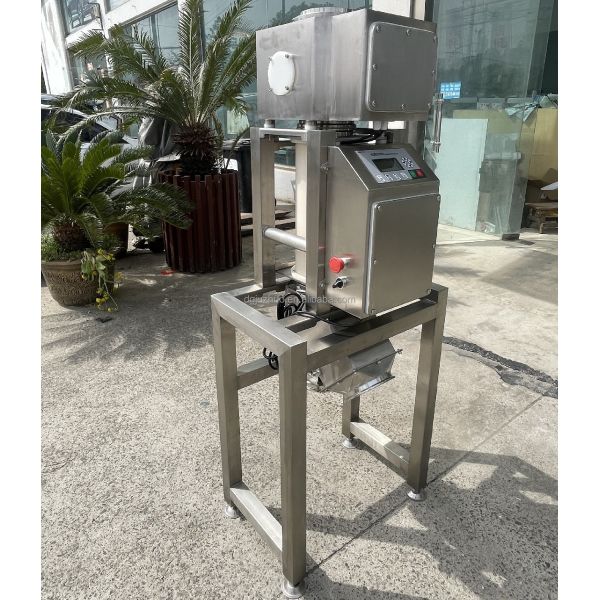

High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
Specifications
Price :
$3,500
material :
stainless 304 and 316
IP Rating :
Ip67
the way of exlusion :
sound and light alarm,air piracy exclusion automatically
Search Coil Diameter :
5cm, 12 cm, 8 cm, 10 cm, 15 cm, 18 cm, 20 cm, 25 cm, 30cm, 40 cm
Record of product quantities :
100kinds of different product parameter
waterproof level :
IP66
the diameter of transportation hopper :
50~150mm(customized)
operating frequency :
Other
raw material :
SUS304/316
Product name :
Food Metal Detector
type :
Pipeline metal detector
user :
powder,granular products
Usage :
Security Inspection
sensitivity :
other
Model Number :
JZD-P16
Place of Origin :
Guangdong, China
Display :
LCD Digital Display
MOQ :
1
control panel :
LCD display
Description

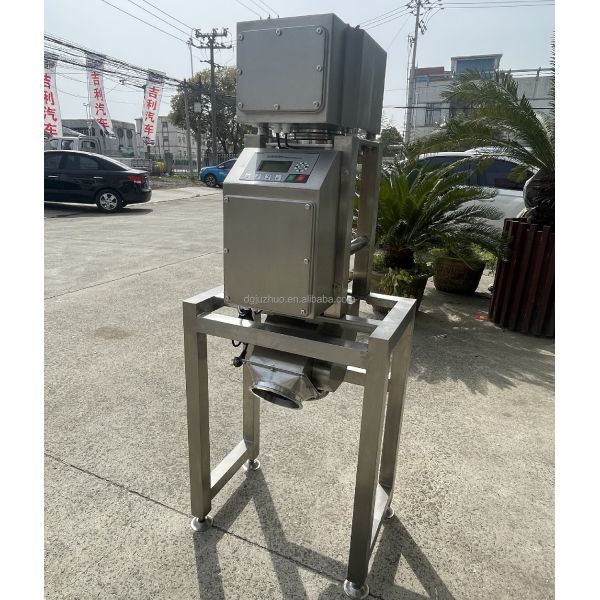

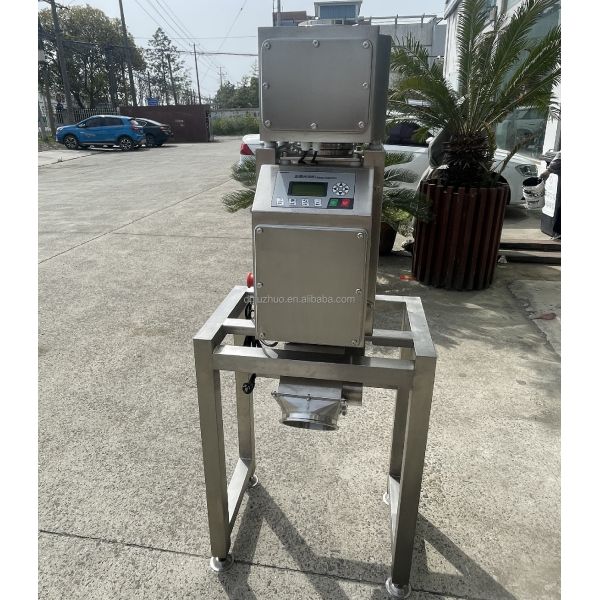

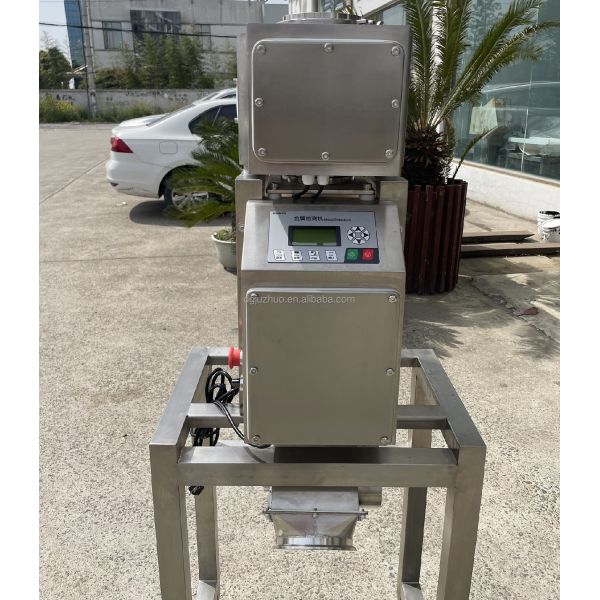

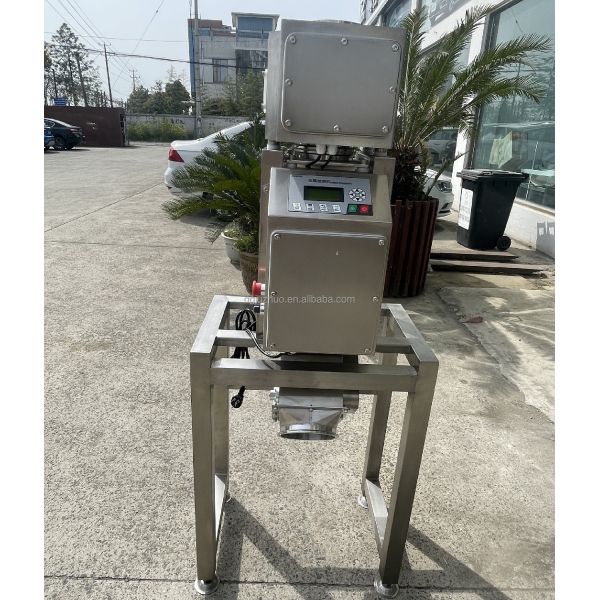

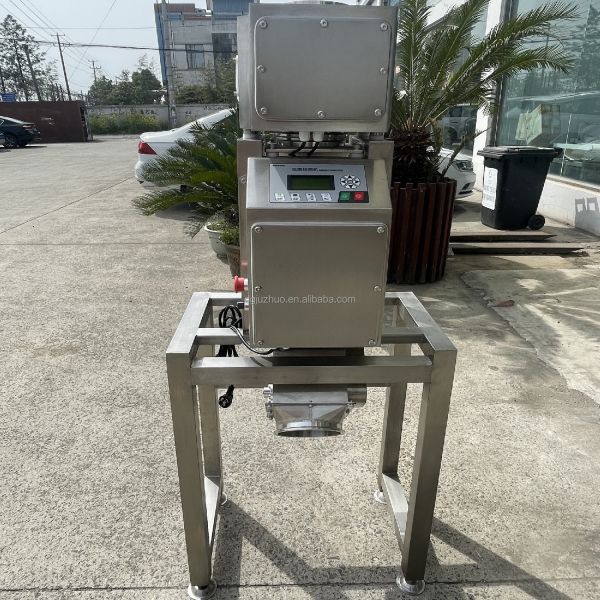

High Sensitivity Plastic Food Powder Metal Separator Machine JZD-P16
High sensitivity metal separator machine designed for plastic food powder applications, model JZD-P16.
Applications
  • Food industry
  • Chemical industry
  • Pharmaceutical industry
  • Plastic industry
  • Packaging industry
Function
Detection and separation of all metals including copper, iron, zinc, stainless steel, and other metallic contaminants.
Features
  • Detection method: Free-Falling body/Gravity
  • Suitable material: Grain or powder
  • Separate ways: Automatic separation
  • Advantage: High precision and simple installation
Technical Parameters
  • Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
  • Input current: 80/160 mA
  • Ambient temperature: -10°C to 60°C
  • Case Material: Stainless Steel
  • Contact parts with material: PP plastic and PTFE
  • Compressed air: 4-8 kg, connected with 6-8 mm hose
  • Gas consumption: 0.6 liters per separation action
  • Level of protection: IP 54
  • Separation time: 0.2 - 2.5 seconds (non-adjustable)
  • Detection accuracy: 0-10 stepless adjustable (recommended scale 9)
  • Detection method: Falling body detection for plastic granules
  • Material characteristics: Dry, no long-fiber, non-conductive, particles less than 8 mm
Specifications
Type (Internal Detection Tube Dia) Capacity (l/h) Accuracy
80 type 5000 l/h Iron/Stainless Steel: 0.7 mm, Copper: 1.2 mm
100 type 10000 l/h Iron/Stainless Steel: 0.8 mm, Copper: 1.5 mm
150 type 20000 l/h Iron/Stainless Steel: 1.2 mm, Copper: 2.0 mm
200 type 40000 l/h Iron/Stainless Steel: 1.5 mm, Copper: 2.0 mm
250 type 65000 l/h Iron/Stainless Steel: 2.0 mm, Copper: 2.5 mm
Product Images
High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16 High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16 High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16 High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16 High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16 High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16 High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16 High Sensitivity Plastic Food Powder Industrial Metal Separator JZD-P16
