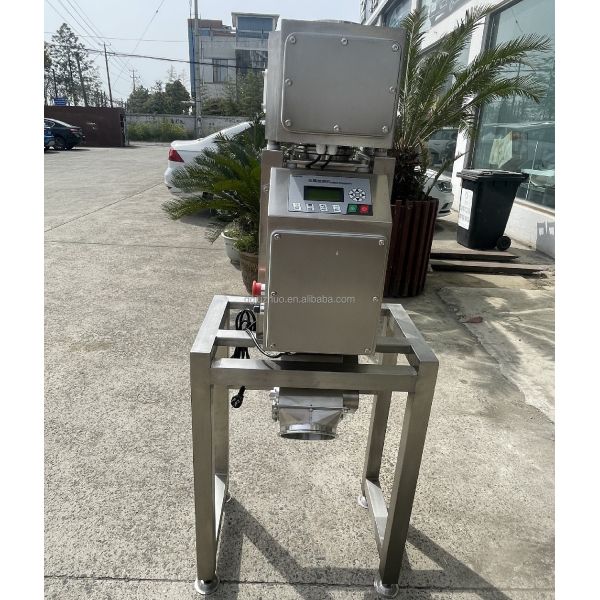

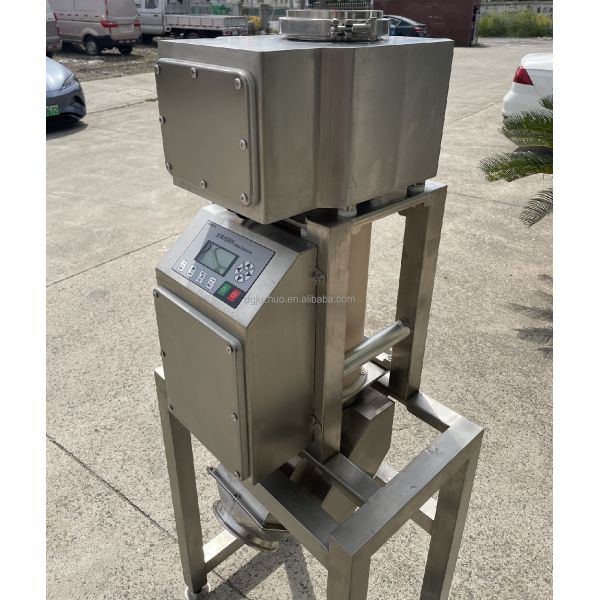

Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
Specifications
Search Coil Diameter :
customized
Record of product quantities :
100kinds of different product parameter
user :
powder,granular products
sensitivity :
other
Display :
LCD Digital Display
the way of exlusion :
sound and light alarm,air piracy exclusion automatically
Usage :
Security Inspection
MOQ :
1
type :
Pipeline metal detector
Model Number :
JZD-P16
Product name :
Food Metal Detector
raw material :
SUS304/316
control panel :
LCD display
operating frequency :
Other
Price :
$3,500
the diameter of transportation hopper :
50~150mm(customized)
Place of Origin :
Guangdong, China
waterproof level :
IP66
material :
stainless 304 and 316
Description
Industrial Metal Detector JZD-P16
Product Overview

The Industrial Metal Detector JZD-P16 is designed for reliable metal detection and separation in various industrial applications, featuring high precision and simple installation.

Applications
  • Food industry
  • Chemical industry
  • Pharmaceutical industry
  • Plastic industry
  • Packaging industry
Detection Capabilities

Detects and separates all types of metals including:

  • Copper
  • Iron
  • Zinc
  • Stainless steel
  • All other metals
Key Features
  • Detection method: Free-Falling body/Gravity
  • Suitable material: grain or powder
  • Separate ways: automatic separation
  • Advantage: high precision and simple installation
Technical Parameters
  • Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
  • Input current: 80/160 mA
  • Ambient temperature: -10°C to 60°C
  • Case Material: Stainless Steel
  • Contact parts with material: PP plastic and PTFE
  • Compressed air: 4-8 kg, connected with 6-8 mm hose
  • Gas consumption: 0.6 liters each separate action
  • Level of protection: IP 54
  • Separation time: 0.2 - 2.5 seconds (No level adjustment)
  • Detection accuracy: 0-10 stepless adjustable (recommended scale 9)
  • Detection method: Falling body detection for plastic granules
  • Material characteristics: dry, no long-fiber, non-conductive, particles less than 8 mm
Specifications
Type (Internal Detection Tube Dia) Capacity (l/h) Detection Accuracy
80 type 5000 l/h Iron/Stainless steel: 0.7 mm, Copper: 1.2 mm
100 type 10000 l/h Iron/Stainless steel: 0.8 mm, Copper: 1.5 mm
150 type 20000 l/h Iron/Stainless steel: 1.2 mm, Copper: 2.0 mm
200 type 40000 l/h Iron/Stainless steel: 1.5 mm, Copper: 2.0 mm
250 type 65000 l/h Iron/Stainless steel: 2.0 mm, Copper: 2.5 mm
Product Gallery
Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16 Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16 Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16 Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16 Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16 Automatic Industrial Metal Detector Gravity Fall Equipment System JZD-P16
