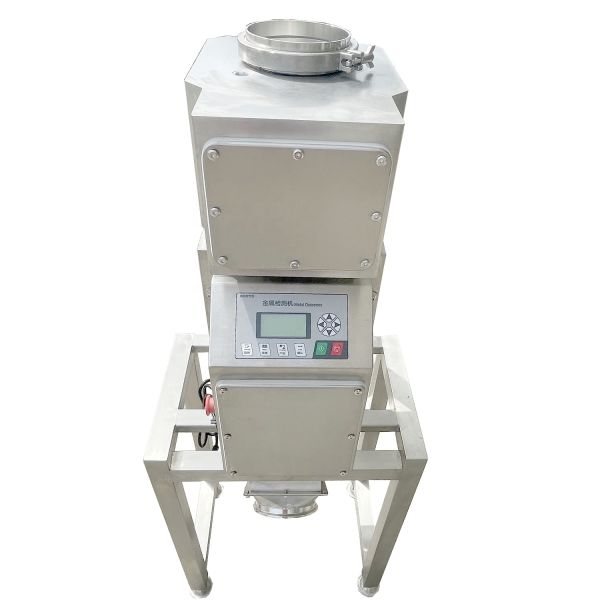

Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
Specifications
Model Number :
JZD-P16
Search Coil Diameter :
5cm, 12 cm, 8 cm, 10 cm, 15 cm, 18 cm, 20 cm, 25 cm, 30cm, 40 cm
IP Rating :
Ip67
MOQ :
1
Place of Origin :
Guangdong, China
Record of product quantities :
100kinds of different product parameter
waterproof level :
IP66
type :
Pipeline metal detector
Display :
LCD Digital Display
raw material :
SUS304/316
control panel :
LCD display
Usage :
Security Inspection
operating frequency :
Other
Product name :
Food Metal Detector
user :
powder,granular products
material :
stainless 304 and 316
sensitivity :
other
Price :
$3,500
the way of exlusion :
sound and light alarm,air piracy exclusion automatically
the diameter of transportation hopper :
50~150mm(customized)
Description
Plastic Injection Molding Blowing Machine Metal Detector Separator JZD-P16
Product Overview

The JZD-P16 Metal Detector Separator is designed for plastic injection molding and blowing machine applications, providing reliable detection and separation of metallic contaminants in various industrial processes.

Applications
  • Food industry
  • Chemical industry
  • Pharmaceutical industry
  • Plastic industry
  • Packaging industry
Function

Detects and separates all types of metals including copper, iron, zinc, stainless steel, and other metallic contaminants.

Key Features
  • Detection method: Free-Falling body/Gravity
  • Suitable material: grain or powder
  • Separate ways: automatic separation
  • Advantage: high precision and simple installation
Technical Parameters
  • Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
  • Input current: 80/160 mA
  • Ambient temperature: -10/60 degrees
  • Case Material: Stainless Steel
  • Contact parts with material: PP plastic and PTFE
  • Compressed air: 4-8 kg, connected with 6-8 mm hose
  • Gas consumption: 0.6 liters each separate action
  • Level of protection: IP 54
  • Separation time: 0.2 - 2.5 seconds (No level can be adjusted)
  • Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
  • Detection method: Falling body detection of plastic granules
  • Material characteristics: dry, no long-fiber, non-conductive, particles less than 8 mm
Specifications
Type (Internal Detection Tube Dia) Capacity Detection Accuracy
80 type 5000 l/h 0.7 iron, stainless steel 1.5, copper 1.2 mm
100 type 10000 l/h 0.8 iron, stainless steel 2.0, copper 1.5 mm
150 type 20000 l/h 1.2 iron, stainless steel 2.3, copper 2.0 mm
200 type 40000 l/h 1.5 iron, stainless steel 2.5, copper 2.0 mm
250 Type 65,000 l/h 2.0 iron, stainless steel 3.0, copper 2.5 mm
Product Gallery
Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16 Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16 Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16 Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16 Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16 Plastic Injection Molding Blowing Machine Metal Detection Separator JZD-P16
