Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
Specifications
user :
powder,granular products
Search Coil Diameter :
customized
type :
Pipeline metal detector
Usage :
Security Inspection
material :
stainless 304 and 316
Display :
LCD Digital Display
sensitivity :
other
operating frequency :
Other
control panel :
LCD display
MOQ :
1
raw material :
SUS304/316
Price :
$3,500
Place of Origin :
Guangdong, China
Product name :
Food Metal Detector
the diameter of transportation hopper :
50~150mm(customized)
Model Number :
JZD-P16
Record of product quantities :
100kinds of different product parameter
waterproof level :
IP66
the way of exlusion :
sound and light alarm,air piracy exclusion automatically
Description
Free Fall Metal Detector Separator for Plastic Master Batch Granules JZD-P16
Product Overview

Free Fall Metal Detector Separator designed specifically for plastic master batch granules, providing reliable metal detection and separation in industrial applications.

Applications
  • Food industry
  • Chemical industry
  • Pharmaceutical industry
  • Plastic industry
  • Packaging industry
Function

Detects and separates all types of metals including copper, iron, zinc, stainless steel, and other metallic contaminants.

Key Features
  • Detection method: Free-Falling body/Gravity
  • Suitable material: Grain or powder
  • Separate ways: Automatic separation
  • Advantage: High precision and simple installation
Technical Parameters
  • Operating voltage: 220 VAC (+/-10%, 50/60 Hz)
  • Input current: 80/160 mA
  • Ambient temperature: -10/60 degrees
  • Case Material: Stainless Steel
  • Contact parts with material: PP plastic and PTFE
  • Compressed air: 4-8 kg, connected with 6-8 mm hose
  • Gas consumption: 0.6 liters each separate action
  • Level of protection: IP 54
  • Separation time: 0.2 - 2.5 seconds (No level can be adjusted)
  • Detection accuracy: 0-10 stepless adjustable (recommended transferred to scale 9)
  • Detection method: Plastic granules with falling body
  • Material characteristics: Dry, no long-fiber, non-conductive, particles less than 8 mm
Specifications
Type (Internal Detection Tube Dia) Capacity (l/h) Detection Accuracy
80 type 5000 l/h Iron: 0.7mm, Stainless Steel: 1.5mm, Copper: 1.2mm
100 type 10000 l/h Iron: 0.8mm, Stainless Steel: 2.0mm, Copper: 1.5mm
150 type 20000 l/h Iron: 1.2mm, Stainless Steel: 2.3mm, Copper: 2.0mm
200 type 40000 l/h Iron: 1.5mm, Stainless Steel: 2.5mm, Copper: 2.0mm
250 Type 65,000 l/h Iron: 2.0mm, Stainless Steel: 3.0mm, Copper: 2.5mm

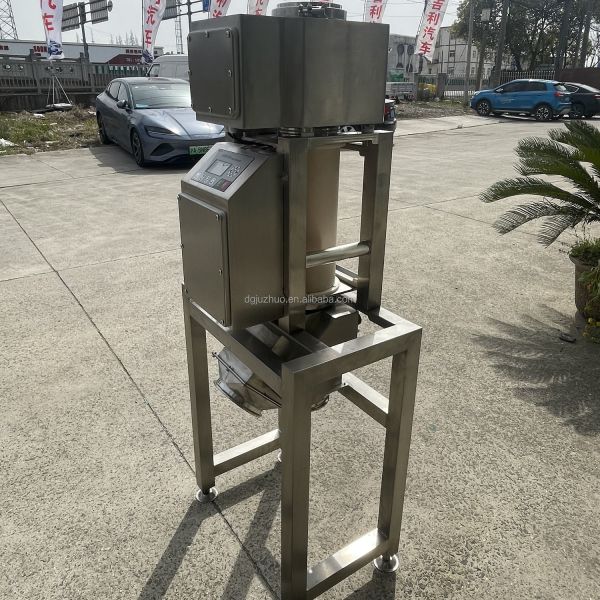

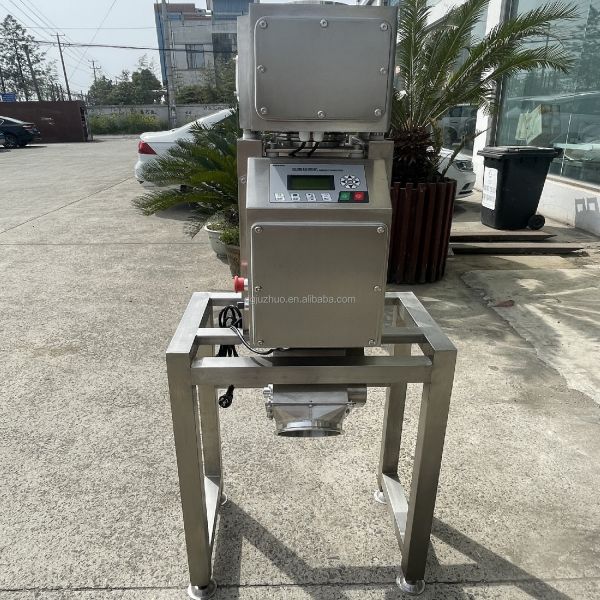

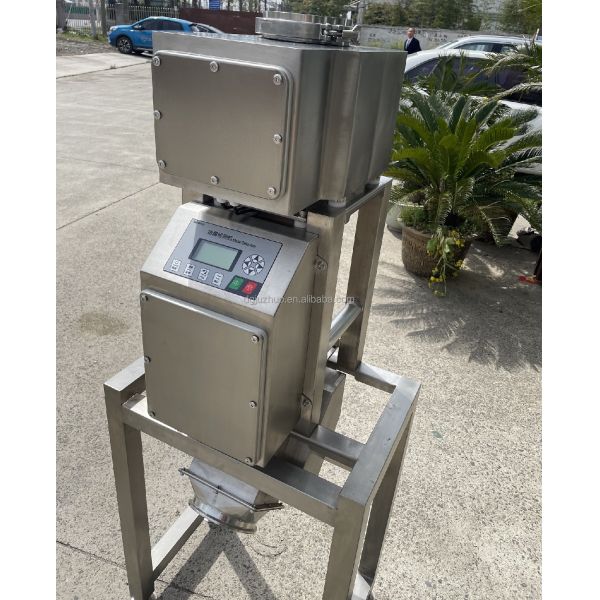

Product Images
Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16 Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16 Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16 Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16 Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16 Free Fall Metal Detector Plastic Master Batch Granule Separator JZD-P16
