Specifications
raw material :
SUS304/316
Product name :
Food Metal Detector
the diameter of transportation hopper :
50~150mm(customized)
type :
Pipeline metal detector
waterproof level :
IP66
operating frequency :
Other
Display :
LCD Digital Display
the way of exlusion :
sound and light alarm,air piracy exclusion automatically
MOQ :
1
Model Number :
JZD-P16
Place of Origin :
Guangdong, China
Price :
$3,500
sensitivity :
other
Record of product quantities :
100kinds of different product parameter
user :
powder,granular products
control panel :
LCD display
material :
stainless 304 and 316
Search Coil Diameter :
customized
Usage :
Security Inspection
Description

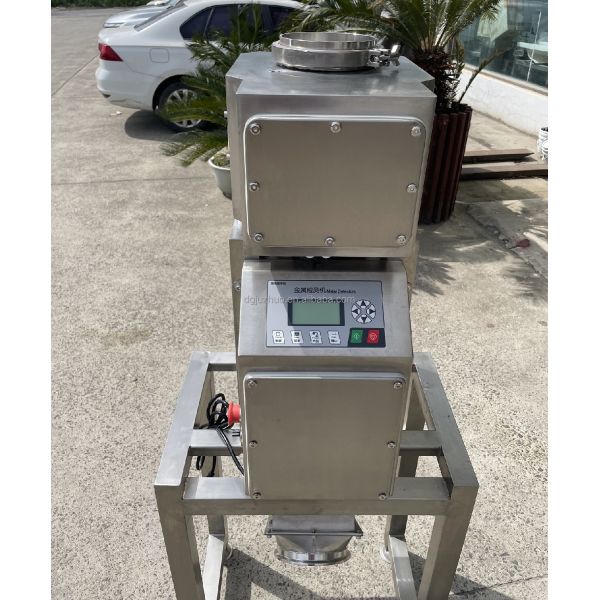

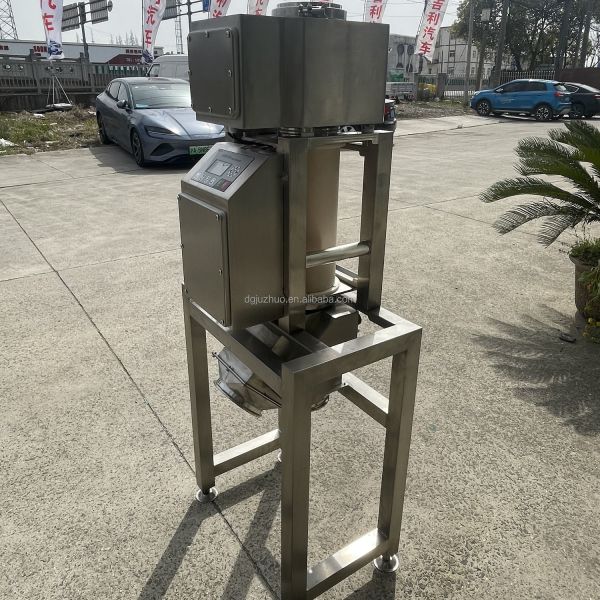

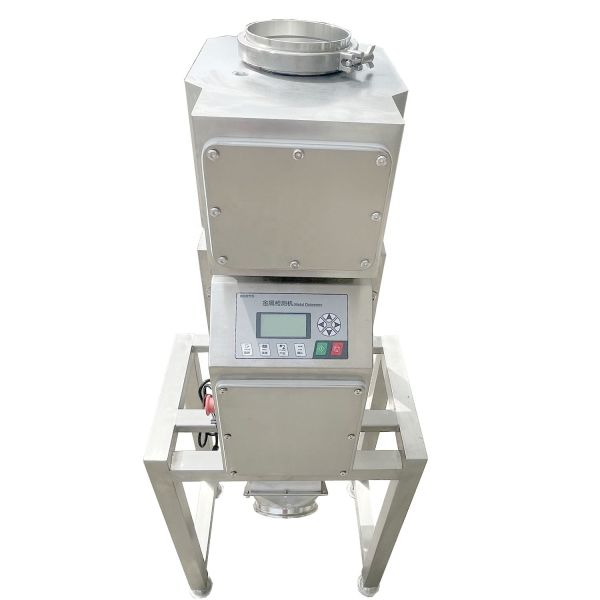

Gravity Fall Metal Detector Separator for Plastic Rubber Industry JZD-P16
Product Overview

Advanced gravity fall metal detector separator designed for the plastic and rubber industries, model JZD-P16. This equipment ensures high-precision detection and automatic separation of metallic contaminants from granular materials.

Applications
  • Food industry
  • Chemical industry
  • Pharmaceutical industry
  • Plastic industry
  • Packaging industry
Detection Capabilities

Detects and separates all types of metals including:

  • Copper
  • Iron
  • Zinc
  • Stainless steel
  • All other metals
Key Features
  • Detection method: Free-Falling body/Gravity
  • Suitable material: Grain or powder
  • Separate ways: Automatic separation
  • Advantage: High precision and simple installation
Technical Parameters
Operating voltage 220 VAC (+/-10%, 50/60 Hz)
Input current 80/160 mA
Ambient temperature -10/60 degrees
Case Material Stainless Steel
Contact parts with material PP plastic and PTFE
Compressed air 4-8 kg, connected with 6-8 mm hose
Gas consumption 0.6 liters each separate action
Level of protection IP 54
Separation time 0.2 - 2.5 seconds (No level can be adjusted)
Detection accuracy 0-10 stepless adjustable (recommended transferred to scale 9)
Material Specifications
  • Usage method: Detect plastic granules with falling body
  • Material characteristics: Dry, no long-fiber, non-conductive
  • Particle size: Less than 8 mm
Model Specifications
Model Type Internal Detection Tube Diameter Capacity Detection Accuracy
80 Type 80 mm 5000 l/h Iron: 0.7mm, Stainless Steel: 1.5mm, Copper: 1.2mm
100 Type 100 mm 10000 l/h Iron: 0.8mm, Stainless Steel: 2.0mm, Copper: 1.5mm
150 Type 150 mm 20000 l/h Iron: 1.2mm, Stainless Steel: 2.3mm, Copper: 2.0mm
200 Type 200 mm 40000 l/h Iron: 1.5mm, Stainless Steel: 2.5mm, Copper: 2.0mm
250 Type 250 mm 65,000 l/h Iron: 2.0mm, Stainless Steel: 3.0mm, Copper: 2.5mm
Product Gallery
Gravity Fall Metal Detector Plastic Rubber Industry Separator System JZD-P16 Gravity Fall Metal Detector Plastic Rubber Industry Separator System JZD-P16 Gravity Fall Metal Detector Plastic Rubber Industry Separator System JZD-P16 Gravity Fall Metal Detector Plastic Rubber Industry Separator System JZD-P16 Gravity Fall Metal Detector Plastic Rubber Industry Separator System JZD-P16 Gravity Fall Metal Detector Plastic Rubber Industry Separator System JZD-P16
