Specifications
Brand Name :
JUZHUO
customized support :
OEM, ODM, OBM
warranty :
1year
waterproof :
IP66
Place of Origin :
Guangdong, China
Certification :
CE,ISO9001
belt color :
customized
MOQ :
1
conveyor load :
25KG(customized)
conveyor speed :
22m/minutes(variable speed,adjustable)
alarm :
audible and visual alarm ,automatic stop
certification approval :
ISO,HACCP
type :
New
Model Number :
JZD-366
belt material :
PU
Display :
LCD Digital Display
Raw material :
SUS304
Description
2025 Hot Sale Strong Anti-interference Wood Metal Detector JZD-366
Product Overview

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithm, self-study and full digital regulating function. This makes the metal detector's detecting capacity more stable and dependable, significantly improving detection effect.

Applications

Model JZD-366 digital metal detector is mainly used for checking metal impurities which mix or drop in bakery, pizza, hamburger, puree, sauce, vegetable tobaccos and other occasions that require metal detection. It can apply to high temperature, low temperature, damp, dry, dust, dew and other poor work environments.

Main Features
  • LCD display screen control panel with English and Chinese language
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 kinds of different products, parameters of detection with simple operation for frequent product replacement
  • Learning functions with automatic identification to efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangle aperture (indivisible)
  • Control system - ADLINE microprocessor controller
  • Conforms to IFS standard with certification HACCP, CE & ISO 9001
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference & shock proof
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specifications
Model JZD-366
Width of inspection window (mm) 400 (customization available)
Height of inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm Audible and visual alarm, automatic stop
Raw material SUS304
Normal machine size (mm) 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size)
Net Gross 330kg (based on normal size)
Electrical source (Power) 110V/220V/380V 50Hz/60Hz (Power) 90W
Conveyor speed 25-30m/min (can be designed according to customer's requirements)
Conveyor height 650mm±50mm (normal) can be manufactured as per customer's needs
Note: The above sensitivity is judged by the machine without bearing any parts. The actual sensitivity has relation with nature and the temperature of the products etc. Can install auto-rejection equipment according to customer's requirements.

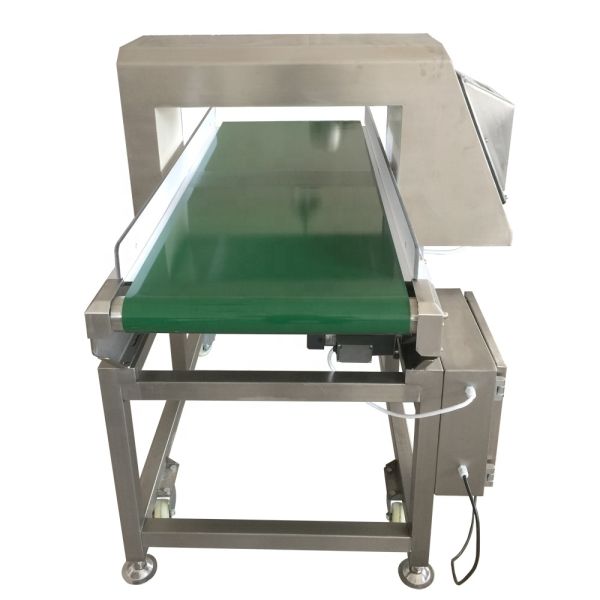

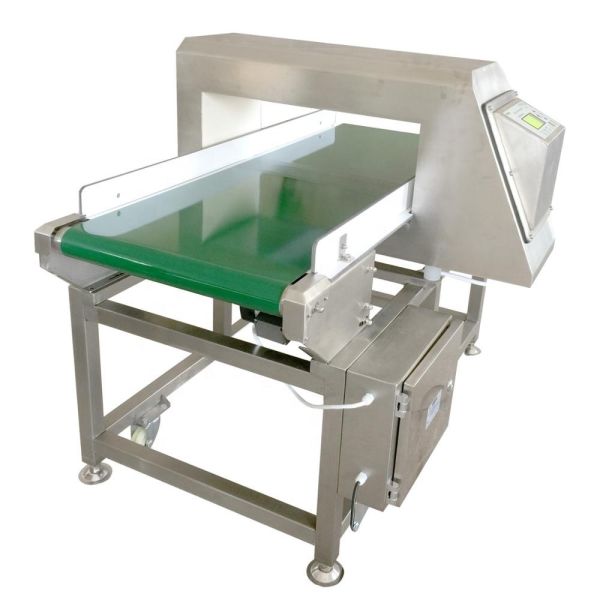

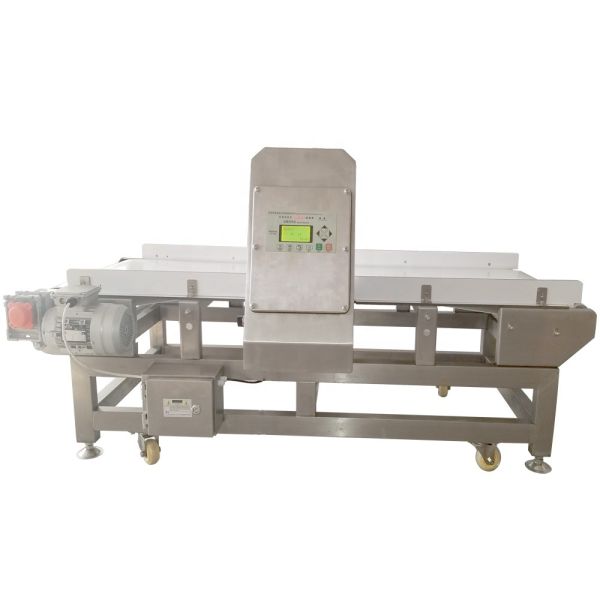

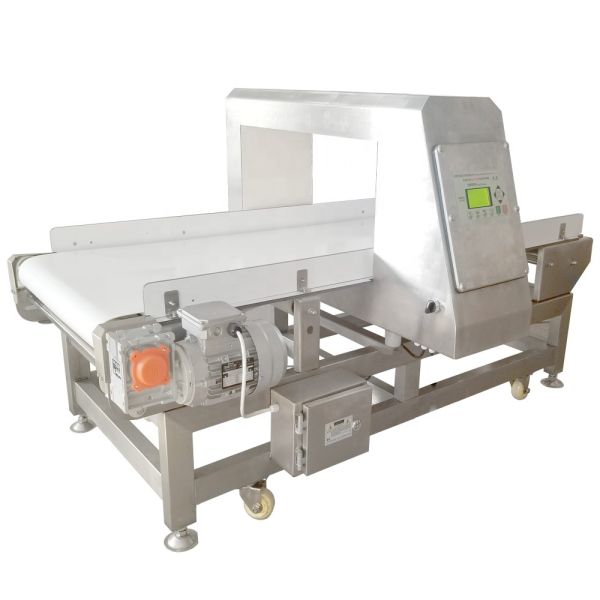

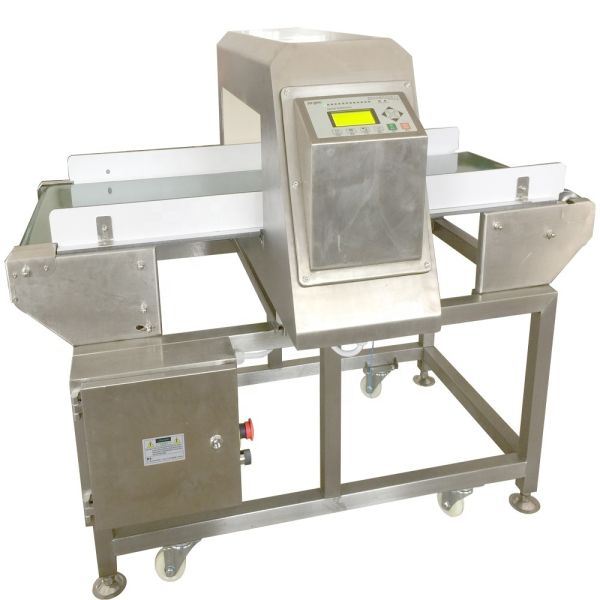

Product Images
Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366 Strong Anti Interference Industrial Metal Detector Wood Processing JZD-366
