Specifications
control panel :
LCD Display screen
MOQ :
1
alarm :
audible and visual alarm ,automatic stop
conveyor speed :
22m/minutes(variable speed,adjustable)
customized support :
OEM, ODM, OBM
Place of Origin :
Guangdong, China
waterproof :
IP66
certification approval :
CE,ISO9001,HACCP
Function :
Safety Protectionn
conveyor load :
25kg(customized)
Raw material :
SUS304(stainless steel)
Model Number :
JZD-366
type :
New
Belt color :
customized
Brand Name :
JUZHUO
warranty :
1year
Description
Factory Price Metal Detector for Knitting Yarn Industry JZD-366
Product Overview

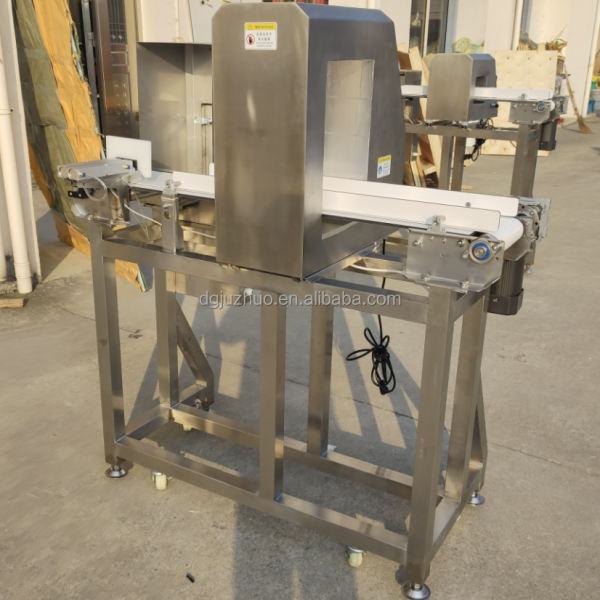

Model JZD-366 is an LCD display intelligent/digital metal detector featuring advanced two-way signal detection circuit technology. It employs cutting-edge electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study, and full digital regulating functions to ensure stable and dependable detection capacity with improved detecting effects.

Applications

The JZD-366 digital metal detector is primarily used for detecting metal impurities mixed or dropped in various products including bakery items, pizza, hamburger, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It is suitable for challenging work environments including high temperature, low temperature, damp, dry, dusty, and dewy conditions.

Main Features
  • LCD display screen control panel with English and Chinese language options
  • Capable of detecting impurities in products packaged with evaporating aluminum
  • Can record up to 100 different product types with detection parameters for easy operation when switching between different product applications
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head utilizes dual channel detecting circle technology from Germany with rectangular aperture (indivisible)
  • ADLINE microprocessor controller system
  • Conforms to IFS standards with HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effects in aquatic food products, frozen foods & pickled foods
  • Excellent anti-interference and shock proof capabilities
  • Easy disassembly and convenient cleaning
Technical Parameters
Parameter Specifications
Model JZD-366
Inspection Window Width (mm) 400 (customization available)
Inspection Height (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm with automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)cm × 90(W)cm × 100(H)cm (based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz (Power: 90W)
Conveyor Speed 25-30m/min (can be designed according to customer requirements)
Conveyor Height 650mm±50mm (normal), can be manufactured according to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity may vary based on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.
