Specifications
Place of Origin :
Guangdong, China
belt standard :
FDA
Model Number :
JZD-366
alarm :
audible and visual alarm ,automatic stop
waterproof :
IP66
conveyor speed :
22m/minutes(variable speed,adjustable)
certification approval :
ISO9001,HACCP,CE
belt material :
PU
MOQ :
1
control panel :
LCD display screen
conveyor load :
25kg(customized)
raw material :
SUS304 stainless steel
Description
Online Manufacturer Food Metal Detector, Conveyor Type Metal Detector JZD-366
Product Overview

Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithms, self-study, and full digital regulating function. This makes the metal detector's detecting capacity more stable and dependable, significantly improving detection effectiveness.

Applications

Model JZD-366 digital metal detector is mainly used for checking metal impurities that mix or drop in seafood, frozen food, fish, noodles, bakery products, and other occasions requiring metal detection. It can be applied in high temperature, low temperature, damp, dry, dusty, dewy, and other poor work environments.

Main Features
  • LCD display screen control panel with English and Chinese language options
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 kinds of different products parameters for detection
  • Simple operation for replacement of different products in frequent occasions
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangle aperture (indivisible)
  • Control system - ADLINE microprocessor controller
  • Conforms to IFS standard with certification HACCP, CE & ISO 9001
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference & shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specifications
Model JZD-366
Width of Inspection Window (mm) 400 (customization available)
Height of Inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm, automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size)
Net Gross Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz (Power) 90W
Conveyor Speed 25-30m/min (can be designed according to customer's requirements)
Conveyor Height 650mm±50mm (normal) - can be manufactured according to customer's needs
Note: The above sensitivity is judged by the machine without bearing any parts. The actual sensitivity has relation with the nature and temperature of the products, etc. Auto-rejection equipment can be installed according to customer requirements.

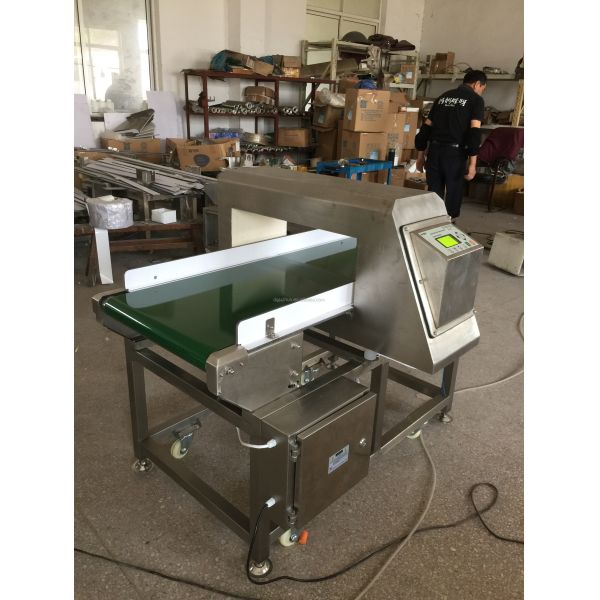

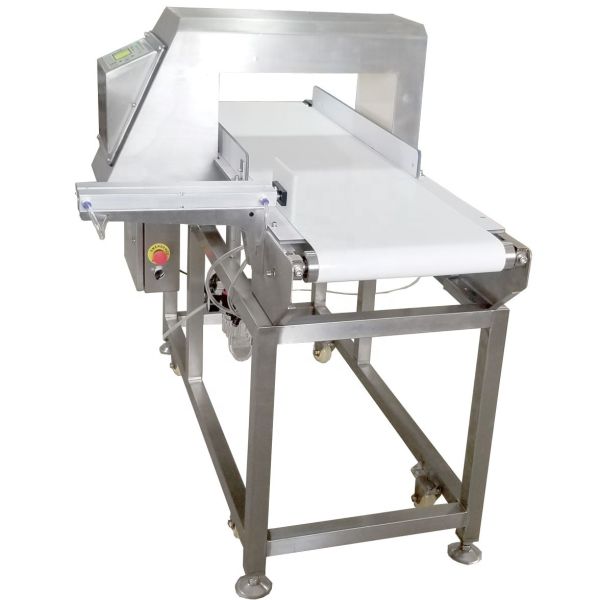

Product Images
