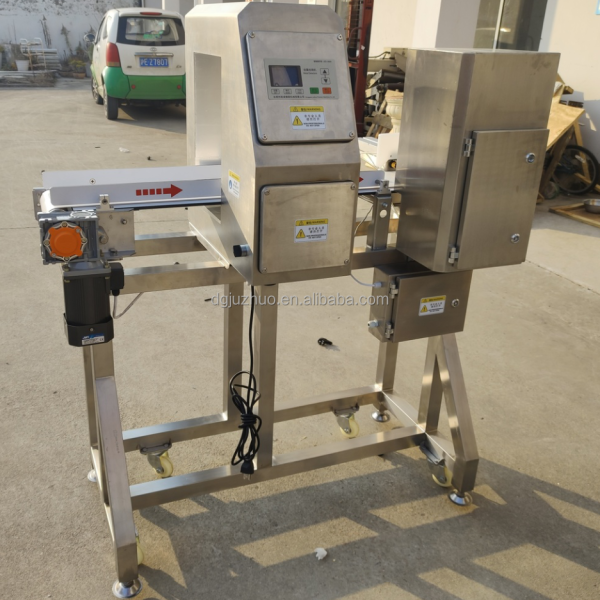

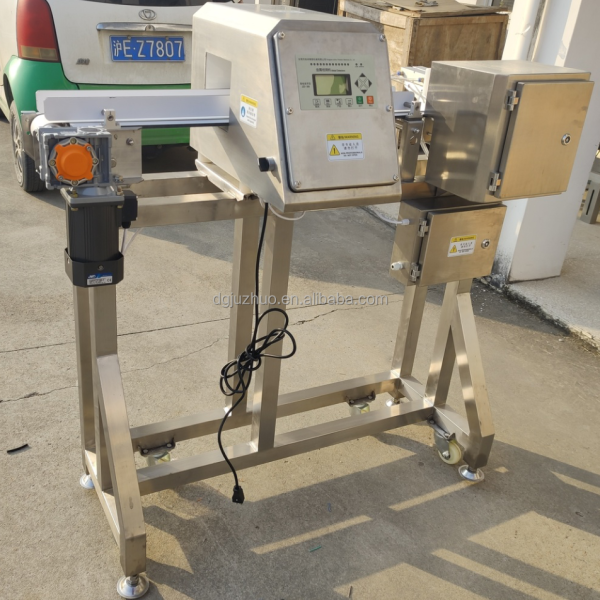

Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Specifications
raw material :
stainless steel 304
Model Number :
JZD-366
waterproof :
IP66
conveyor speed :
22m/minutes(variable speed,adjustable)
belt color :
customized
conveyor load :
25kg(customized)
certification approval :
ISO9001,HACCP,CE
Place of Origin :
Guangdong, China
Alarm :
audible and visual alarm ,automatic stop
customized support :
OEM, ODM, OBM
Application :
Food Metal Detector .needle Metal Detector
warranty :
1year
Brand Name :
JUZHUO
MOQ :
1
type :
New
Description
High Quality Adjustable Conveyor Speed Metal Detector for Food Packaging Line JZD-366
Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithms, self-study, and full digital regulating functions. This makes the metal detector's detecting capacity more stable and dependable, significantly improving detection effectiveness.
Adjustable Industrial Metal Detector Conveyor Speed Food Packaging Line JZD-366
Applications
Model JZD-366 digital metal detector is primarily used for checking metal impurities mixed or dropped in bakery products, pizza, hamburger, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It can operate in high temperature, low temperature, damp, dry, dusty, dewy, and other challenging work environments.
Main Features
  • LCD display screen control panel with English and Chinese language options
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 different product parameters with simple operation for frequent product changes
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangular aperture (indivisible)
  • Control system - ADLINE microprocessor controller
  • Conforms to IFS standard with HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference and shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specification
Model JZD-366
Width of inspection window (mm) 400 (customization available)
Height of inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm, automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)cm × 90(W)cm × 100(H)cm (Based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (can be designed according to customer requirements)
Conveyor Height 650mm±50mm (normal), can be manufactured to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity relates to the nature and temperature of the products, etc. Auto-rejection equipment can be installed according to customer requirements.
