Specifications
conveyor load :
25kg(customized)
waterproof :
IP66
control panel :
LCD display screen
belt material :
PU
sensitivity :
0.8
material :
Stainless Steel
Place of Origin :
Guangdong, China
Price :
R$21,626.49
Raw material :
SUS304(stainless steel)
user :
all industry
alarm :
audible and visual alarm ,automatic stop
Model Number :
JZD-366
Brand Name :
JUZHUO
customized support :
OEM, ODM, OBM
belt color :
customized
type :
metal detector
MOQ :
5
operating frequency :
Other
Search Coil Diameter :
10 cm
certification approval :
ISO9001,HACCP,CE
conveyor speed :
22m/minutes(variable speed, adjustable)
warranty :
1year
Description

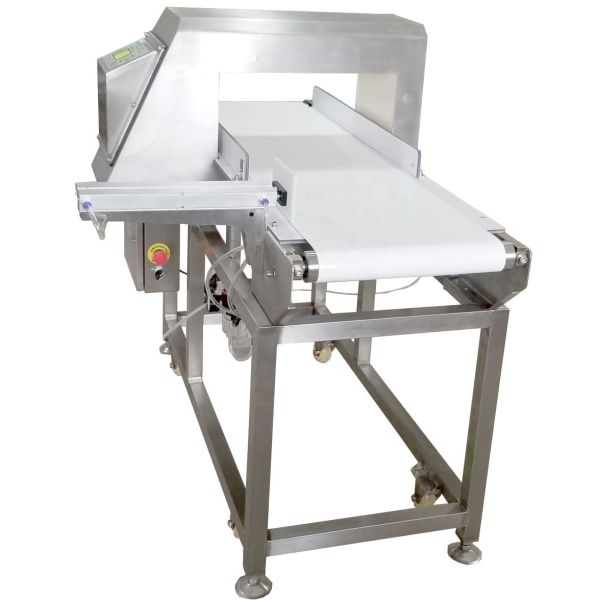

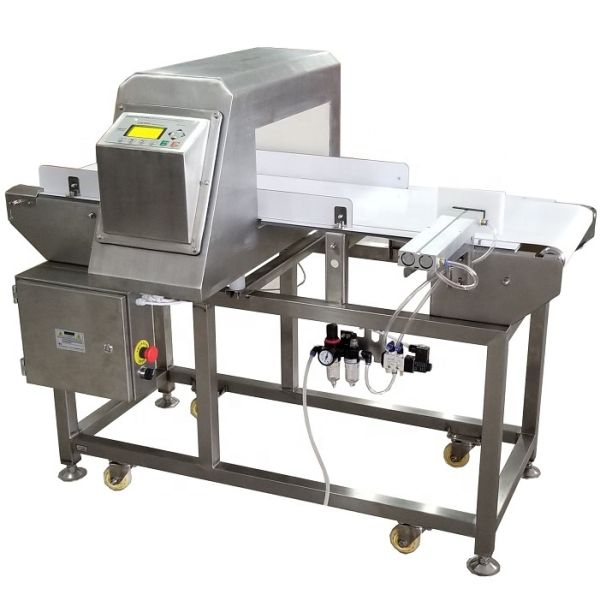

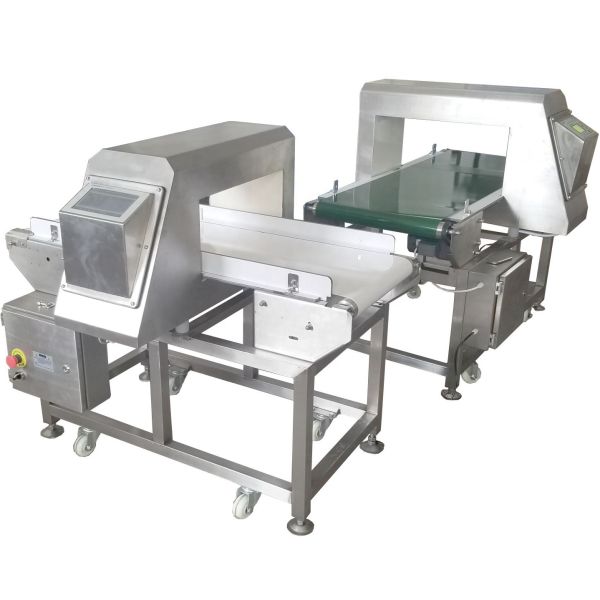

Needle Metal Detector JZD-366
Product Overview

Model JZD-366 is an LCD display intelligent digital metal detector featuring advanced two-way signal detection circuit technology. It utilizes cutting-edge electromagnetic detection and digital signal processing with DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware, combined with sophisticated detecting algorithms for superior performance.

Applications

This digital metal detector is designed for detecting metal impurities in various food products including bakery items, pizza, hamburgers, puree, sauce, vegetables, and tobacco. It performs reliably in challenging work environments including high/low temperature, humidity, dryness, dust, and dew conditions.

Main Features
  • LCD display control panel with English and Chinese language options
  • Detects impurities in products packaged with evaporating aluminum
  • Stores up to 100 different product detection parameters
  • Automatic identification learning functions for efficient product effect compensation
  • Dual channel detecting circle using German detection technology
  • ADLINE microprocessor controller system
  • Compliant with IFS standards and certified HACCP, CE & ISO 9001
  • Strong suppression for product effects in aquatic, frozen, and pickled foods
  • Excellent anti-interference and shock proof capabilities
  • Easy disassembly and convenient cleaning design
Technical Parameters
Parameter Specification
Model JZD-366
Inspection Window Width 400mm (400mm customization available)
Inspection Height Options 100mm | 120mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm with automatic stop
Raw Material SUS304
Machine Size 160(L)×90(W)×100(H)cm (standard size)
Net Weight 330kg (standard size)
Power Supply 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable to customer requirements)
Conveyor Height 650mm±50mm (standard, customizable to customer needs)
Note: Sensitivity specifications are based on testing without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.
