Specifications
Model Number :
JZD-48
Search Coil Diameter :
5cm, 12 cm, 8 cm, 10 cm, 15 cm, 18 cm, 20 cm, 25 cm, 30cm, 40 cm
waterproof :
IP66
Price :
$4,980
conveyor speed :
22m/minutes(variable speed,adjustable)
raw material :
SUS304 stainless steel
sensitivity :
other
IP Rating :
Ip67
material :
Stainless Steel
Place of Origin :
Guangdong, China
Detection type :
double conveyor
control panel :
LCD display screen
conveyor load :
25kg(customized)
Product name :
compression metal detector
MOQ :
1
alarm :
audible and visual alarm ,automatic indentification and stop
certification approval :
ISO9001,HACCP,CE
type :
Compression Metal Detector
user :
All
fail-safe alarm system :
alarm to warn/remind operator upon working abnormality
operating frequency :
customized
Description

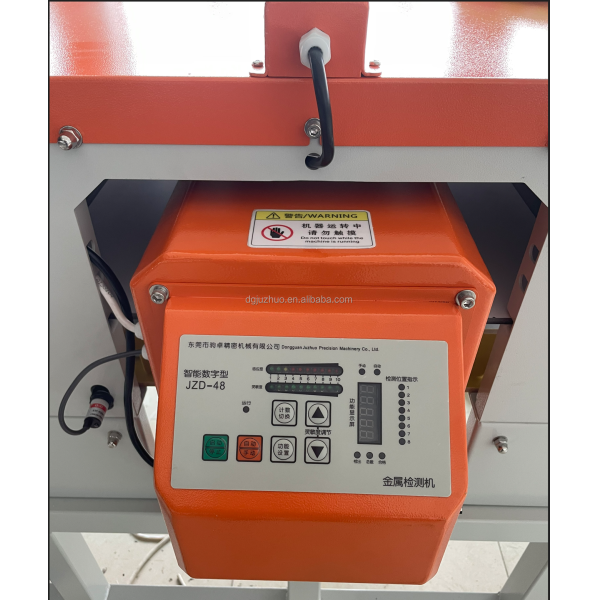

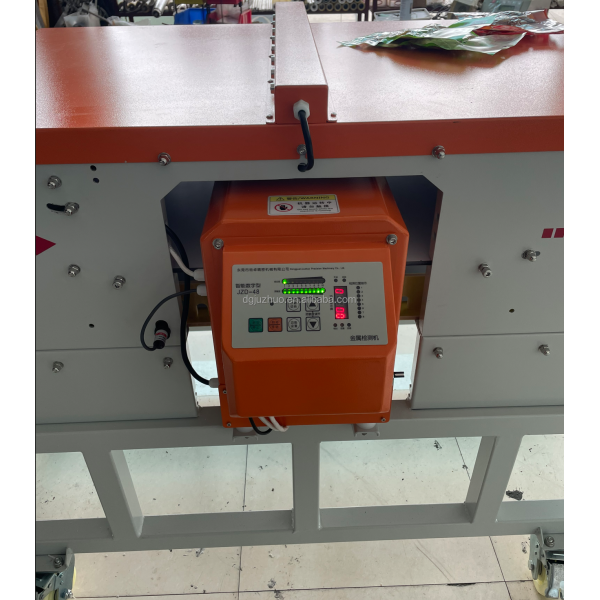

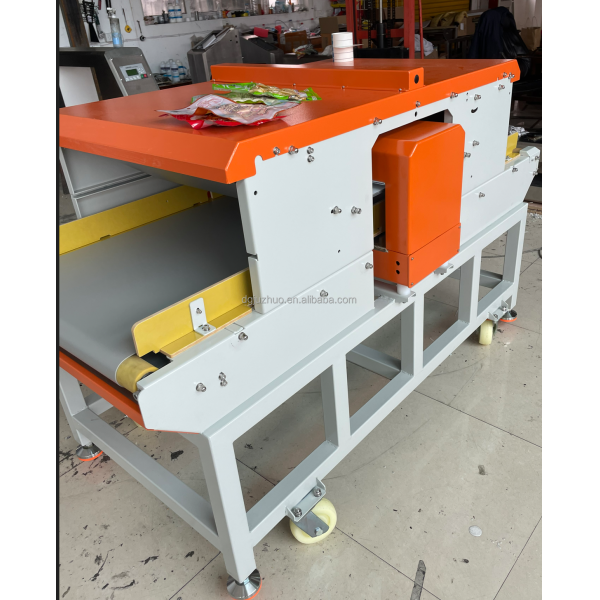

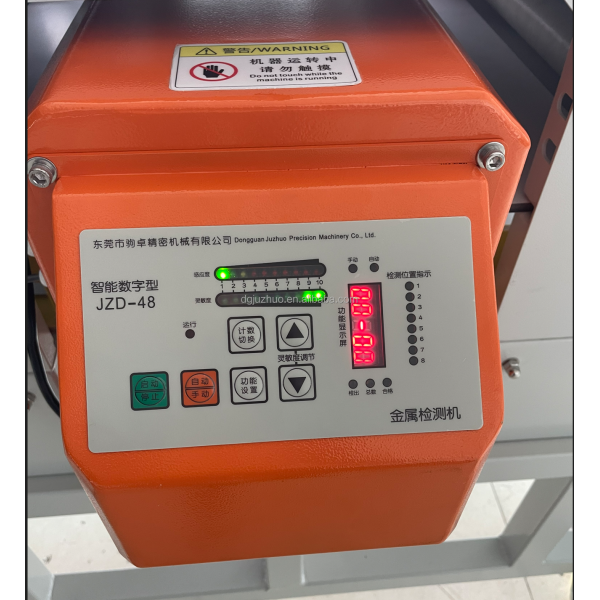

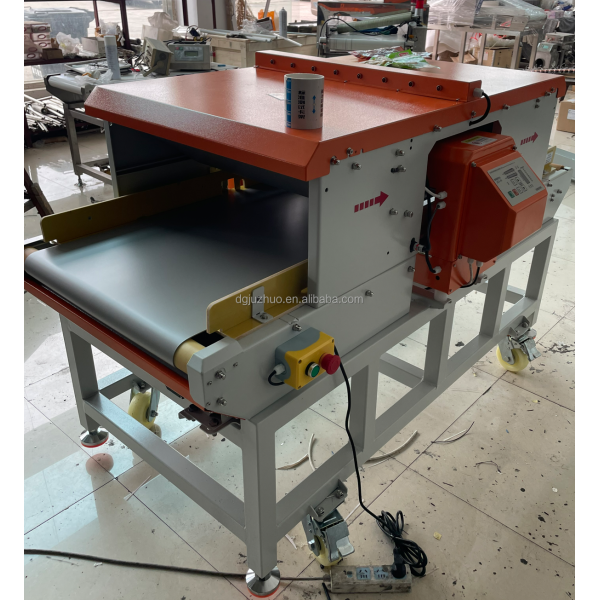

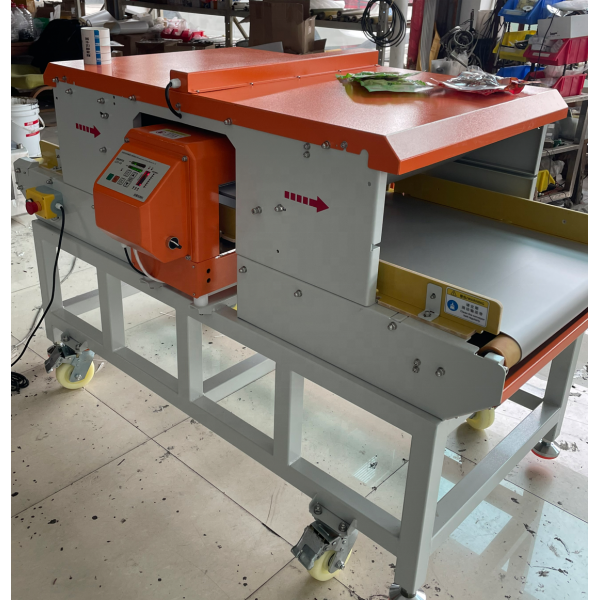

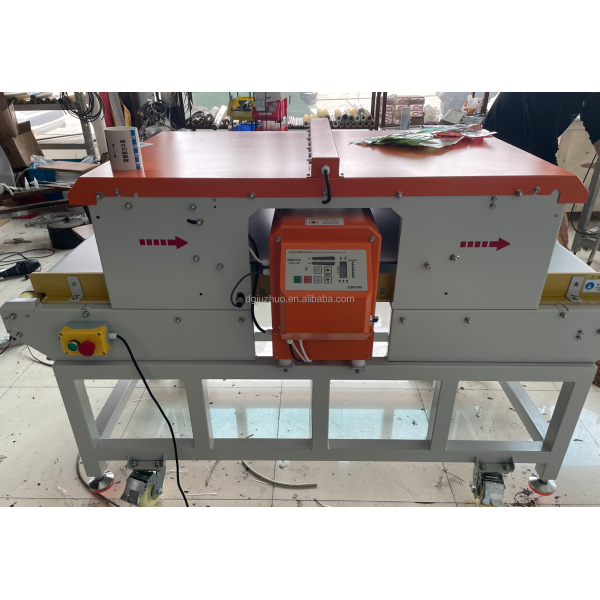

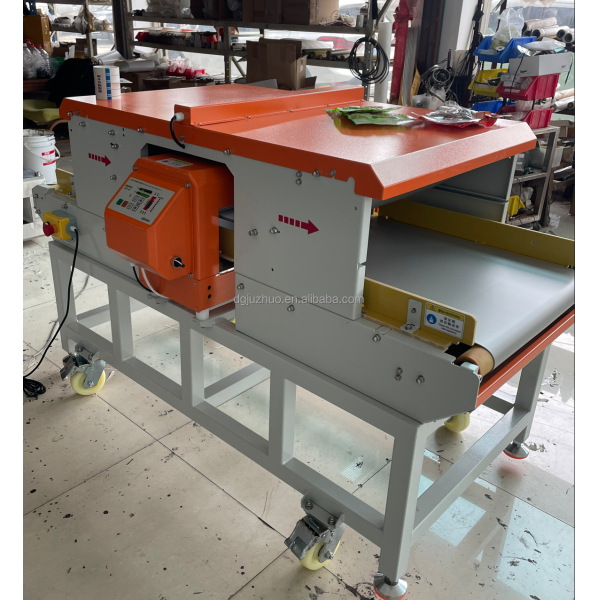

Metal Detector for Foil Aluminum Packing Material Products JZD-48
Product Overview

The JZD-48 Metal Detector is specifically designed for detecting various metal contaminants in foil aluminum packaging materials and other products. This industrial-grade equipment reliably identifies needle breakage, steel wire, lead, copper, stainless steel, and other colored metals that may be present in raw materials or finished products.

Applications

Ideal for use in multiple industries including dairy, snacks, noodles, canned foods, bedding, tobacco, toys, footwear, cosmetics, personal care products, plastics, leather, rubber, building materials, and any other applications requiring metal detection capabilities.

Key Features
  • Can compress products before passing through detection tunnel for inspection
  • High sensitivity with strong interference immunity performance
  • Lightweight structure for convenient mobility
  • Multiple detection size specifications available based on customer requirements
  • Adjustable conveyor speed suitable for pipeline operations
  • Double belt structure with easy disassembly and cleaning
  • Audible and visual alarm system with automatic stop function
Technical Specifications
Parameter Specification
Inspection Window Height (mm) 100-125-150-200-300-400-500-600-700 (customizable)
Inspection Window Width (mm) 600
Sensitivity (Steel Ball Diameter) Φ0.8~2.0 mm (customizable levels adjustable)
Power Consumption 140W (customizable)
Dimensions (L×W×H) 1950 × 1100 × 1200 mm
Weight 220 kg
Electrical Source 110V/220V/380V 50Hz/60Hz
Environmental Compatibility

Designed to operate reliably in challenging work environments including high temperature, low temperature, humid, dry, dusty, and dewy conditions.
