Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Coffee Chocolate Jelly Candy Biscuit Bread Milk Food Metal Detector JZD-366
Specifications
sensitivity :
0.6
operating frequency :
Multi-Frequency
conveyor speed :
22m/minutes(variable speed,adjustable)
conveyor load :
25kg(customized)
belt standard :
FDA
material :
Stainless Steel
Alarm :
audible and visual alarm ,automatic stop
user :
all products industry
Search Coil Diameter :
10 cm(3.94in)
MOQ :
10
type :
metal detector
Price :
$3,980
raw material :
stainless steel 304
Model Number :
JZD-88
certification approval :
ISO9001,HACCP,CE
Place of Origin :
Guangdong, China
waterproof :
IP66
belt material :
PU
Description
Popular High Quality Metal Detector for Coffee/Chocolate/Jelly/Candy/Biscuit/Bread/Milk Etc JZD-366
Product Overview

Model JZD-366 is an LCD display intelligent digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithm, self-study and full digital regulating function to ensure stable and dependable detecting capacity.

Applications

Model JZD-366 digital metal detector is mainly used for checking metal impurities in bakery products, pizza, hamburger, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It can operate in high temperature, low temperature, damp, dry, dusty, and other challenging work environments.

Main Features

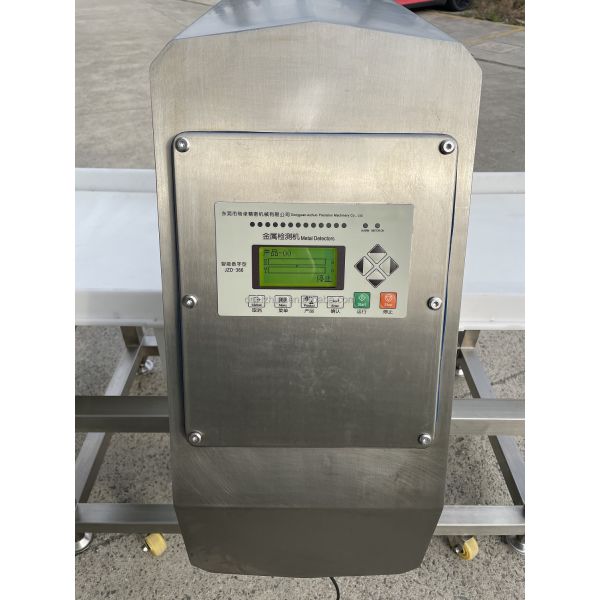

  • LCD display screen control panel with English and Chinese language
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 different product parameters for easy operation when switching between products
  • Automatic identification learning functions to efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangle aperture
  • ADLINE microprocessor controller system
  • Conforms to IFS standard with HACCP, CE & ISO 9001 certification
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference & shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specifications
Model JZD-366
Width of inspection window (mm) 400 (customization available)
Height of inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm, automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)×90(W)×100(H)cm (Based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable according to customer requirements)
Conveyor Height 650mm±50mm (normal), customizable to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity relates to the nature and temperature of the products. Auto-rejection equipment can be installed according to customer requirements.

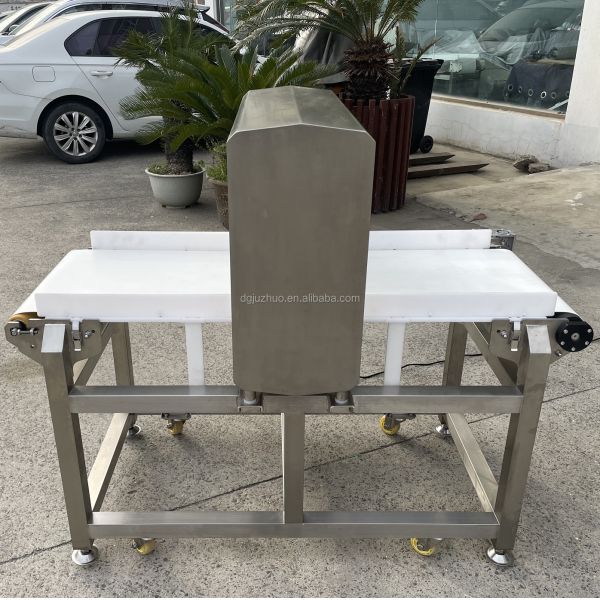

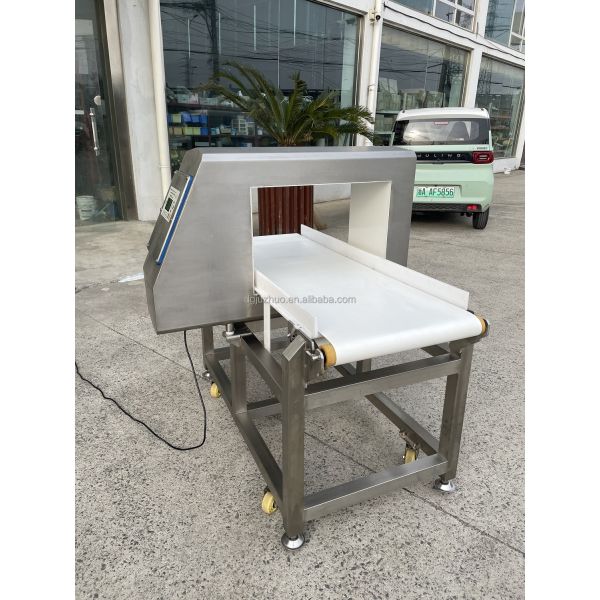

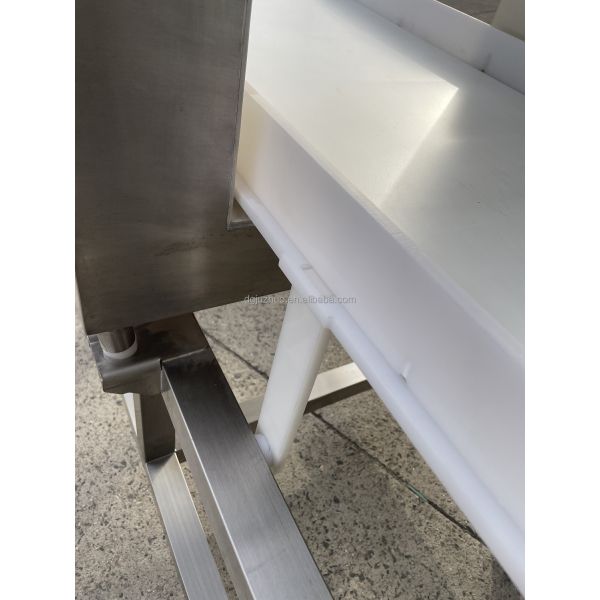

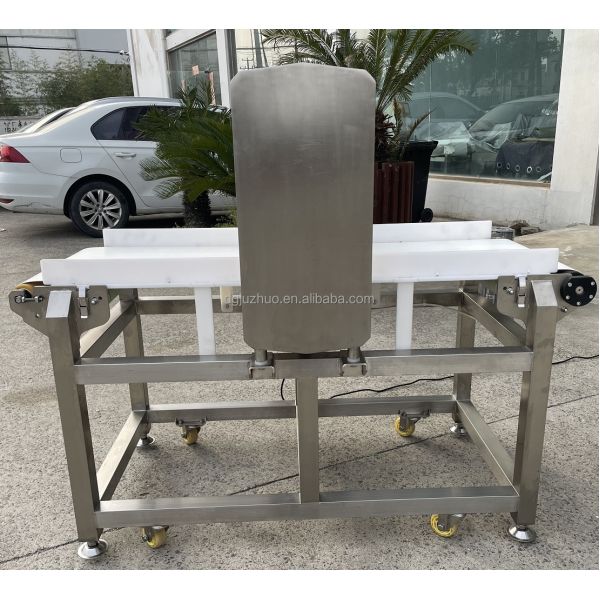

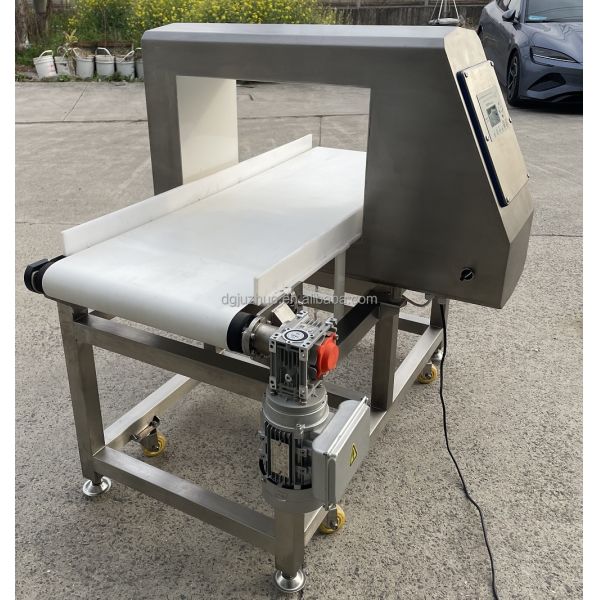

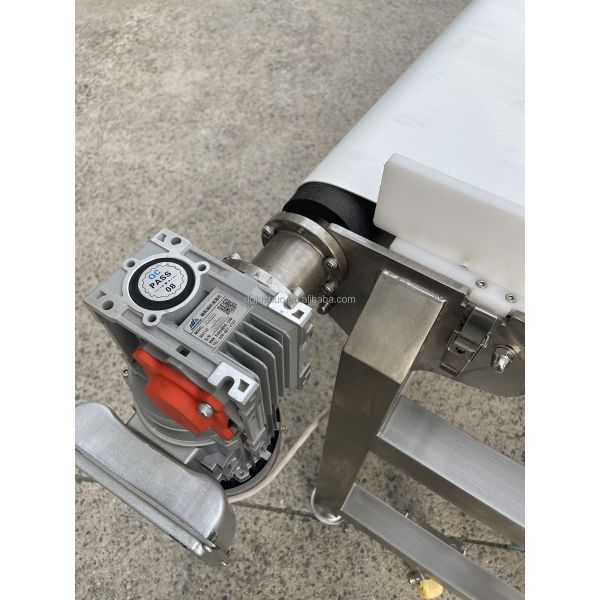

Product Images
