Specifications
operating frequency :
Multi-Frequency
certification approval :
CE,ISO9001,HACCP
Raw material :
SUS304
Place of Origin :
Guangdong, China
type :
new
conveyor load :
25kg(customized)
alarm :
audible and visual alarm ,automatic stop
IP Rating :
Ip67
user :
Adults, Kids
conveyor speed :
22m/minutes(adjustable)
Search Coil Diameter :
10 cm(3.94in)
control panel :
LCD display screen
sensitivity :
0.7
MOQ :
1
Price :
$3,980
belt standard :
FDA
Model Number :
JZD-366
Communication Interface :
Ethernet
waterproof :
IP66
Description

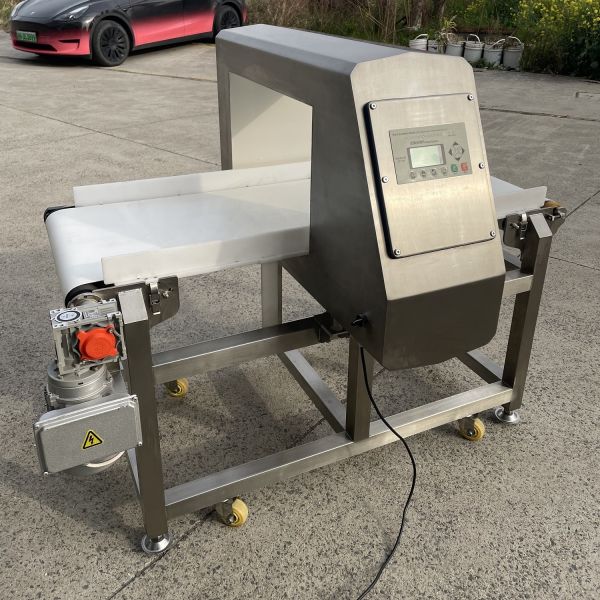

Online Metal Detector for Seafood/Tuna/Frozen Food/Fish Industry JZD-366
Product Overview

Model JZD-366 is an LCD display intelligent digital metal detector featuring advanced two-way signal detection circuit technology. It incorporates cutting-edge electromagnetic detection and digital signal processing using the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware, combined with advanced detecting algorithms, self-study capabilities, and full digital regulating functions to ensure stable and dependable metal detection performance.

Applications

The JZD-366 digital metal detector is designed for detecting metal impurities in various food products including bakery items, pizza, hamburgers, puree, sauce, vegetables, and other applications requiring metal detection. It performs reliably in challenging work environments including high temperature, low temperature, damp, dry, dusty, and dewy conditions.

Main Features
  • LCD display screen control panel with English and Chinese language options
  • Capable of detecting impurities in products packaged with evaporating aluminum
  • Stores up to 100 different product detection parameters for easy product changeovers
  • Automatic identification learning functions that efficiently overcome product material effects
  • Detection head utilizes dual channel detecting circle technology from Germany with rectangular aperture
  • ADLINE microprocessor controller system
  • Compliant with IFS standards and certified with HACCP, CE & ISO 9001
  • Strong suppression for product effects in aquatic foods, frozen foods & pickled foods
  • Excellent anti-interference and shock proof capabilities
  • Easy disassembly and convenient cleaning design
Technical Parameters
Parameter Specifications
Model JZD-366
Inspection Window Width 400mm (400mm customization available)
Inspection Height Options 100mm | 120mm | 150mm | 200mm | 250mm | 300mm | 350mm | 400mm
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm with automatic stop
Raw Material SUS304
Machine Dimensions 160cm (L) × 90cm (W) × 100cm (H) - based on normal size
Net Weight 330kg (based on normal size)
Power Supply 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable according to customer requirements)
Conveyor Height 650mm ±50mm (normal), customizable to customer needs
Note: The above sensitivity specifications are measured without bearing any parts. Actual sensitivity may vary based on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.
