Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Advanced Industrial Metal Detector Leather Industry Processing System JZD-366
Specifications
alarm :
audible and visual alarm ,automatic stop
control panel :
LCD display screen
customized support :
OEM, ODM, OBM
type :
New
belt color :
customized
Model Number :
JZD-366
MOQ :
1
warranty :
1year
Place of Origin :
Guangdong, China
waterproof :
IP66
Brand Name :
JUZHUO
conveyor speed :
22m/minutes(variable speed,adjustable)
Raw material :
SUS304(stainless steel)
conveyor load :
25kg(customized)
certification approval :
ISO9001,HACCP,CE
Description
Manufacturer Super Advanced Industrial Metal Detector for Leather Industry JZD-366
Product Overview

The JZD-366 is an LCD display intelligent digital metal detector featuring advanced two-way signal detection circuit technology. It incorporates cutting-edge electromagnetic detection and digital signal processing technology, utilizing the latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware combined with advanced detecting algorithms, self-study capabilities, and full digital regulating functions.

Applications

The JZD-366 digital metal detector is primarily used for detecting metal impurities in various products including bakery items, pizza, hamburgers, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It is designed to operate reliably in challenging environments including high temperature, low temperature, damp, dry, dusty, and dewy conditions.

Main Features
  • LCD display screen control panel with English and Chinese language support
  • Capable of detecting impurities in products packaged with evaporating aluminum
  • Stores up to 100 different product detection parameters for easy product changeover
  • Automatic identification learning functions to efficiently overcome product material effects
  • Detection head utilizes dual channel detecting circle with German detection technology and rectangular aperture (indivisible)
  • ADLINE microprocessor controller system
  • Complies with IFS standards and holds HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effects in aquatic foods, frozen foods, and pickled foods
  • Excellent anti-interference and shock proof capabilities
  • Easy disassembly and convenient cleaning
Technical Specifications
Parameter Specification
Model JZD-366
Inspection Window Width 400mm (400mm customization available)
Inspection Height Options 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Detection Sensitivity - Fe (Φmm) ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Alarm System Audible and visual alarm with automatic stop
Raw Material SUS304
Standard Machine Size 160cm (L) × 90cm (W) × 100cm (H)
Net Weight 330kg (standard size)
Power Supply 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable to customer requirements)
Conveyor Height 650mm ±50mm (standard, customizable to customer needs)
Note: The above sensitivity specifications are based on the machine without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.

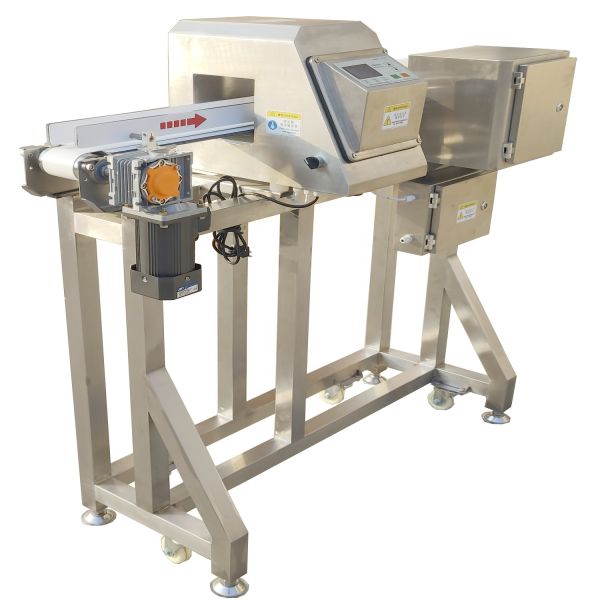

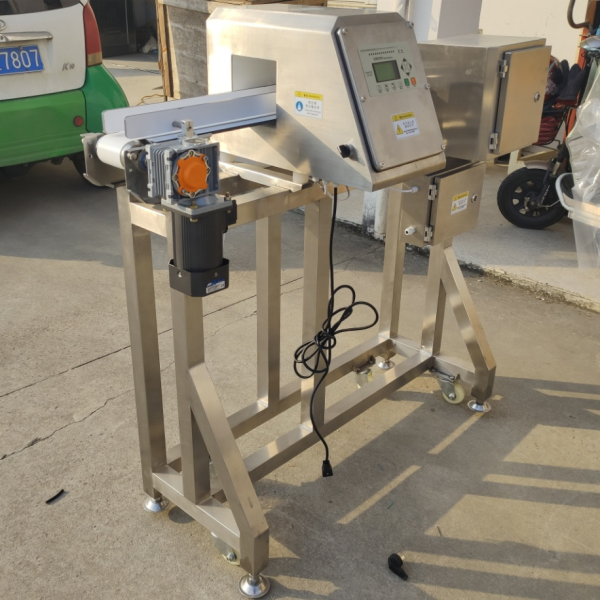

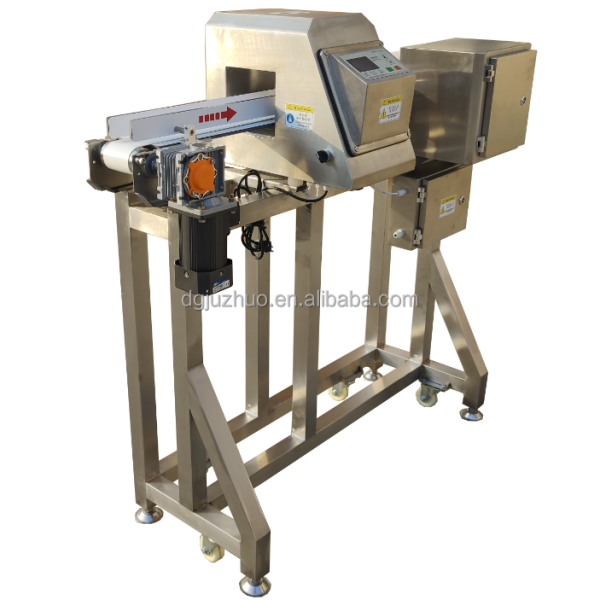

Product Images
