Specifications
type :
New
Brand Name :
Juzhuo
Place of Origin :
Guangdong, China
conveyor speed :
22m/minutes(adjustable,variable speed)
MOQ :
1
belt color :
customized
customized support :
OEM, ODM, OBM
waterproof :
IP66
Model Number :
JZD-366
conveyor material :
PU
certification approval :
CE,ISO9001,HACCP
alarm :
audible and visual alarm,automatic stop
warranty :
1year
raw material :
stainless steel 304
covneyor load :
25kg(customized)
Description

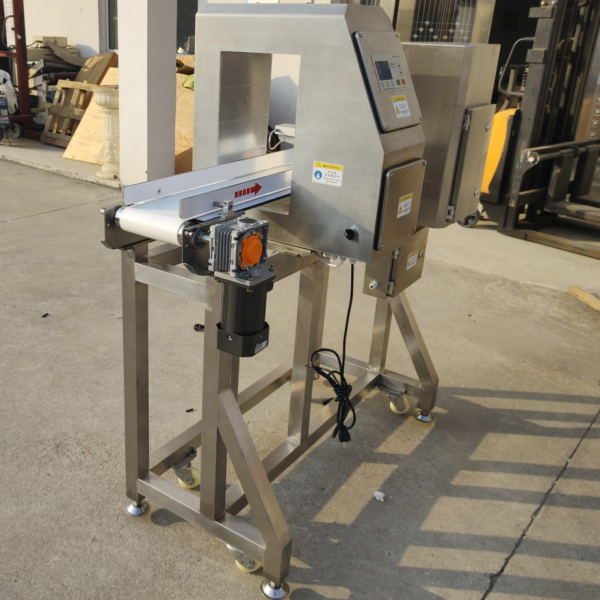

JZD-366 Metal Detector for Aquatic Food/Pickled Food Industry OEM
Product Overview

The JZD-366 is an LCD display intelligent digital metal detector featuring advanced two-way signal detection circuit technology. It utilizes cutting-edge electromagnetic detection and digital signal processing with DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) hardware, combined with sophisticated detecting algorithms for superior performance.

Applications

Designed for detecting metal impurities in various food products including bakery items, pizza, hamburgers, puree, sauce, vegetables, and tobacco. Suitable for challenging work environments including high/low temperature, humidity, dryness, dust, and dew conditions.

Key Features
  • LCD display control panel with English and Chinese language options
  • Capable of detecting impurities in products packaged with evaporating aluminum
  • Stores up to 100 different product detection parameters
  • Automatic identification learning function for efficient product effect compensation
  • German dual-channel detection technology with rectangular aperture
  • ADLINE microprocessor controller
  • Compliant with IFS standards and certified HACCP, CE & ISO 9001
  • Strong suppression for product effect in aquatic, frozen, and pickled foods
  • Excellent anti-interference and shock-proof capabilities
  • Easy disassembly and convenient cleaning
Technical Specifications
Parameter Specifications
Model JZD-366
Inspection Window Width 400mm (400mm customization available)
Inspection Height Options 100mm, 120mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm
Detection Sensitivity - Fe (Φmm) ≥0.6, ≥0.8, ≥1.0, ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0, ≥1.2, ≥1.5, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2, ≥1.5, ≥2.0, ≥2.5, ≥3.0, ≥3.5, ≥4.0, ≥4.5
Alarm System Audible and visual alarm with automatic stop
Raw Material SUS304
Machine Dimensions 160cm(L) × 90cm(W) × 100cm(H) (standard size)
Net Weight 330kg (standard size)
Power Supply 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable to customer requirements)
Conveyor Height 650mm±50mm (standard, customizable to customer needs)
Note: Sensitivity specifications are based on the machine without bearing any parts. Actual sensitivity may vary depending on product nature and temperature. Automatic rejection equipment can be installed according to customer requirements.
