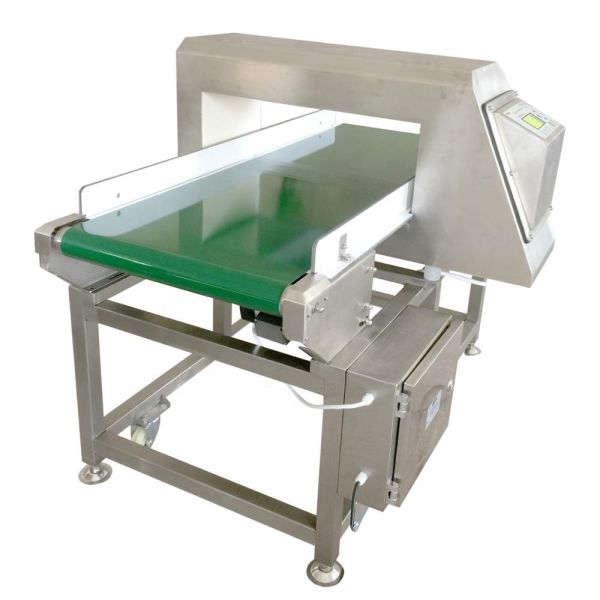

Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Specifications
alarm :
audible and visual alarm ,automatic stop
Raw material :
SUS304
MOQ :
1
Display :
Clear LCD Display
warranty :
2 years
conveyor speed :
22m/minutes(adjustable)
Feature :
High Sensitivity,and stable performance
certification approval :
ISO9001,HACCP,CE
waterproof :
IP66
Place of Origin :
Guangdong, China
customized support :
OEM, ODM, OBM
type :
New
Model Number :
JZD-366
belt material :
PU
conveyor load :
25kg(customized)
Brand Name :
JUZHUO
control panel :
LCD display screen
Description
CE Certification High Professional Food Metal Detector JZD-366
High Professional Food Metal Detector for detecting metal chips inside food products. Model JZD-366 features advanced detection technology for reliable metal contamination prevention.
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
Product Introduction
Model JZD-366 is an LCD display intelligent/digital metal detector featuring two-way signal detection circuit technology. It adopts advanced electromagnetic detection and digital signal processing technology, utilizing latest DDS (Direct Digital Synthesizer) and DSP (Digital Signal Processor) in hardware, combined with advanced detecting algorithm, self-study and full digital regulating function. This makes the metal detector's detecting capacity more stable and dependable, significantly improving detection effectiveness.
Applications

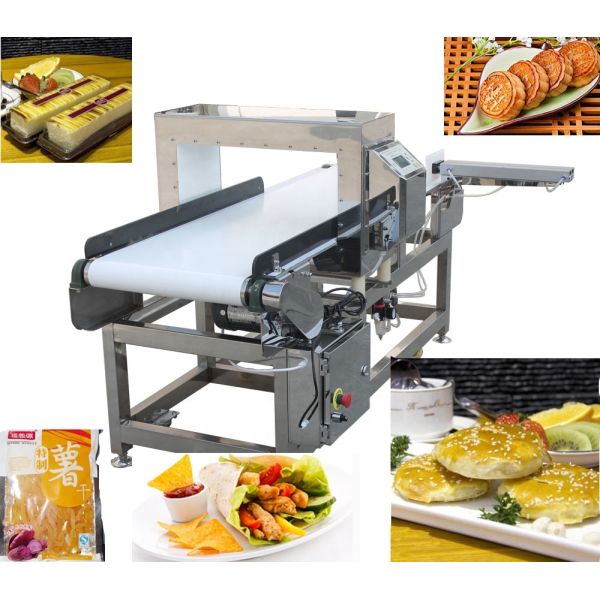

Model JZD-366 digital metal detector is mainly used for checking metal impurities in bakery products, pizza, hamburger, puree, sauce, vegetables, tobaccos, and other applications requiring metal detection. It can operate in high temperature, low temperature, damp, dry, dusty, dewy, and other challenging work environments.
Main Features
  • LCD display screen control panel with English and Chinese language options
  • Can detect impurities in products packaging with evaporating aluminum
  • Can record up to 100 different product parameters for easy switching between products
  • Automatic identification learning functions to efficiently overcome product material effects
  • Detection head adopts dual channel detecting circle from German detection technology with rectangle aperture (indivisible)
  • Control system features ADLINE microprocessor controller
  • Conforms to IFS standard with HACCP, CE & ISO 9001 certifications
  • Strong suppression for product effect of aquatic food products, frozen foods & pickled foods
  • Strong anti-interference and shock proof capabilities
  • Easily disassembled and conveniently cleaned
Technical Parameters
Parameter Specifications
Model JZD-366
Width of inspection window (mm) 400 (customization available)
Height of inspection (mm) 100 | 120 | 150 | 200 | 250 | 300 | 350 | 400
Detection Sensitivity - Fe (Φmm) ≥0.6 | ≥0.8 | ≥1.0 | ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0
Detection Sensitivity - Non-Fe (Φmm) ≥1.0 | ≥1.2 | ≥1.5 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Detection Sensitivity - 304SUS (Φmm) ≥1.2 | ≥1.5 | ≥2.0 | ≥2.5 | ≥3.0 | ≥3.5 | ≥4.0 | ≥4.5
Alarm System Audible and visual alarm, automatic stop
Raw Material SUS304
Normal Machine Size (mm) 160(L)×90(W)×100(H)cm (Based on normal size)
Net Weight 330kg (based on normal size)
Electrical Source (Power) 110V/220V/380V 50Hz/60Hz, 90W
Conveyor Speed 25-30m/min (customizable according to customer requirements)
Conveyor Height 650mm±50mm (normal), customizable to customer needs
Note: The above sensitivity is judged by the machine without bearing any parts. Actual sensitivity relates to the nature and temperature of the products. Auto-rejection equipment can be installed according to customer requirements.
Product Images
Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366 Food Grade Metal Detector Metal Chip Contaminant Removal System JZD-366
